Brand: Maytag
Model: JGRP548WP02 - RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE, 48 INCH

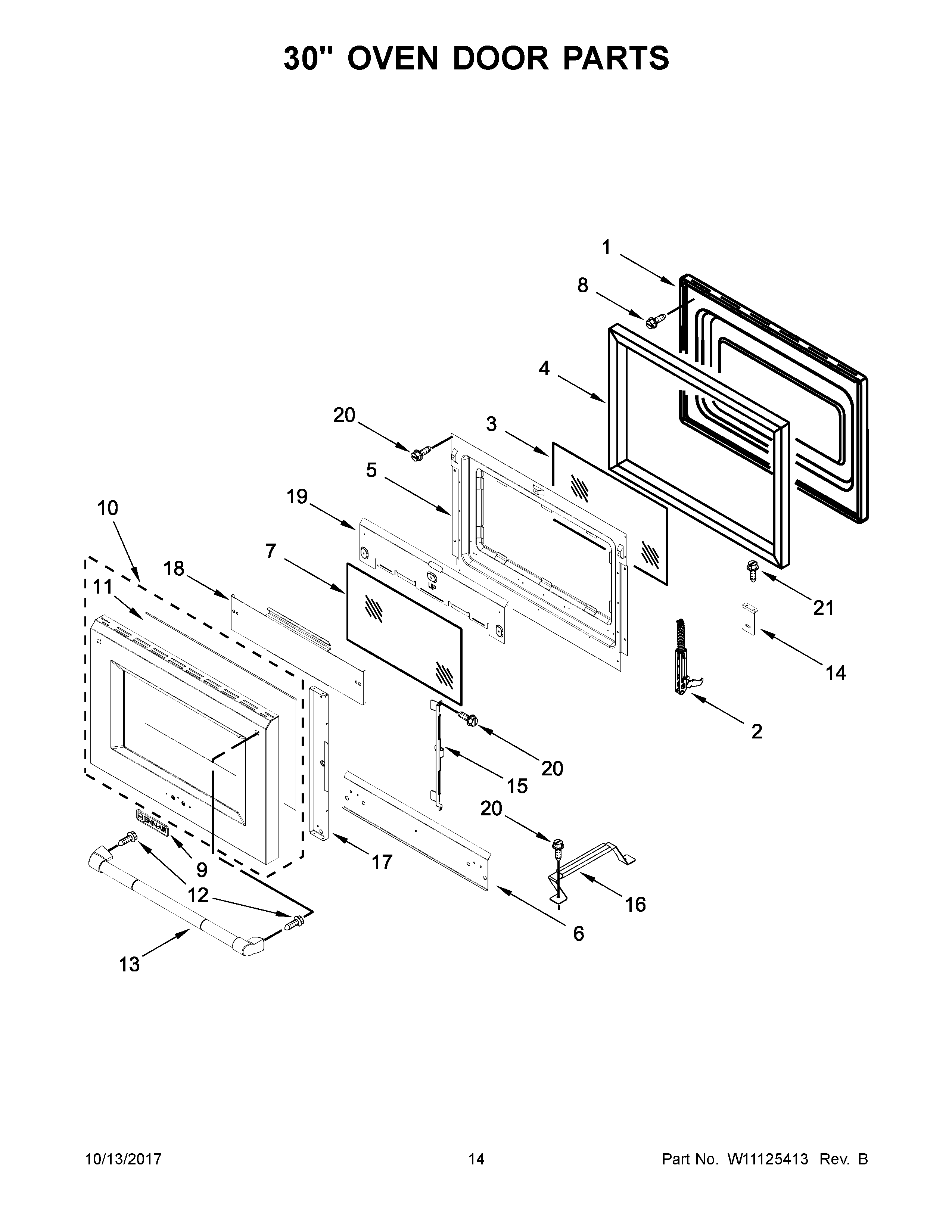

08 - 30" OVEN DOOR PARTS
- 01 - COVER SHEET
- 02 - COOKTOP, BURNER AND GRATE PARTS
- 03 - BURNER BOX, GAS VALVES AND SWITCHES
- 04 - 48" CHASSIS PARTS
- 05 - 30" OVEN PARTS
- 06 - 18" OVEN PARTS
- 07 - VENTING PARTS
- 08 - 30" OVEN DOOR PARTS
- 09 - 18" OVEN DOOR PARTS
- 10 - 30" INTERNAL OVEN PARTS
- 11 - 18" INTERNAL OVEN PARTS
- 12 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 9759413 | LINER-DOOR | WP9759413 | $269.68 | ||
| 2 | W10774095 | HINGE-DOOR | W10782125 | $44.86 | ||
| 2A | W10774094 | HINGE-DOOR | W10782124 | $44.86 | ||
| 3 | 4449259 | GLASS-DOOR | WP4449259 | $148.30 | ||
| 4 | 4451722 | DOOR INSULATION | WP4451722 | $137.62 | ||
| 5 | 4457132 | RETAINER | WP4457132 | $229.88 | ||
| 6 | 4457114 | SHIELD-HT | $0.00 | |||
| 7 | 9759225 | GLASS INNER DR 4MM 30" | WP9759225 | $164.16 | ||
| 8 | W10292297 | SCREW | WPW10292297 | $6.50 | ||
| 9 | W10159578 | NAMEPLATE | WPW10159578 | $66.58 | ||
| 10 | W10145759 | PANEL, EXTERIOR | W10322618 | $0.00 | ||
| 11 | W10145850 | GLASS-DOOR | W11124797 | $283.88 | ||
| 12 | W10276043 | SCREW | WPW10276043 | $0.00 | ||
| 13 | 7701P475-60 | HANDLE,DOOR | WP7701P475-60 | $235.06 | ||
| 14 | W10115715 | BRKT-MNTG | $23.78 | |||
| 15 | 9759229 | BRKT-MNTG | WP9759229 | $142.80 | ||
| 16 | 9759230 | BRACKET, CENTRAL | $0.00 | |||
| 17 | W10145761 | BRKT-GLASS | $55.83 | |||
| 18 | W10145763 | BRKT-GLASS | $55.83 | |||
| 19 | 4457104 | SHIELD | $30.04 | |||
| 20 | 3196537 | SCREW | WP3196557 | $6.31 | ||
| 21 | 7101P426-60 | SCREW | WP90767 | $6.30 |
*The price can change whitout warning
