Brand: Maytag

Model: JGRP548WP02 - RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE, 48 INCH

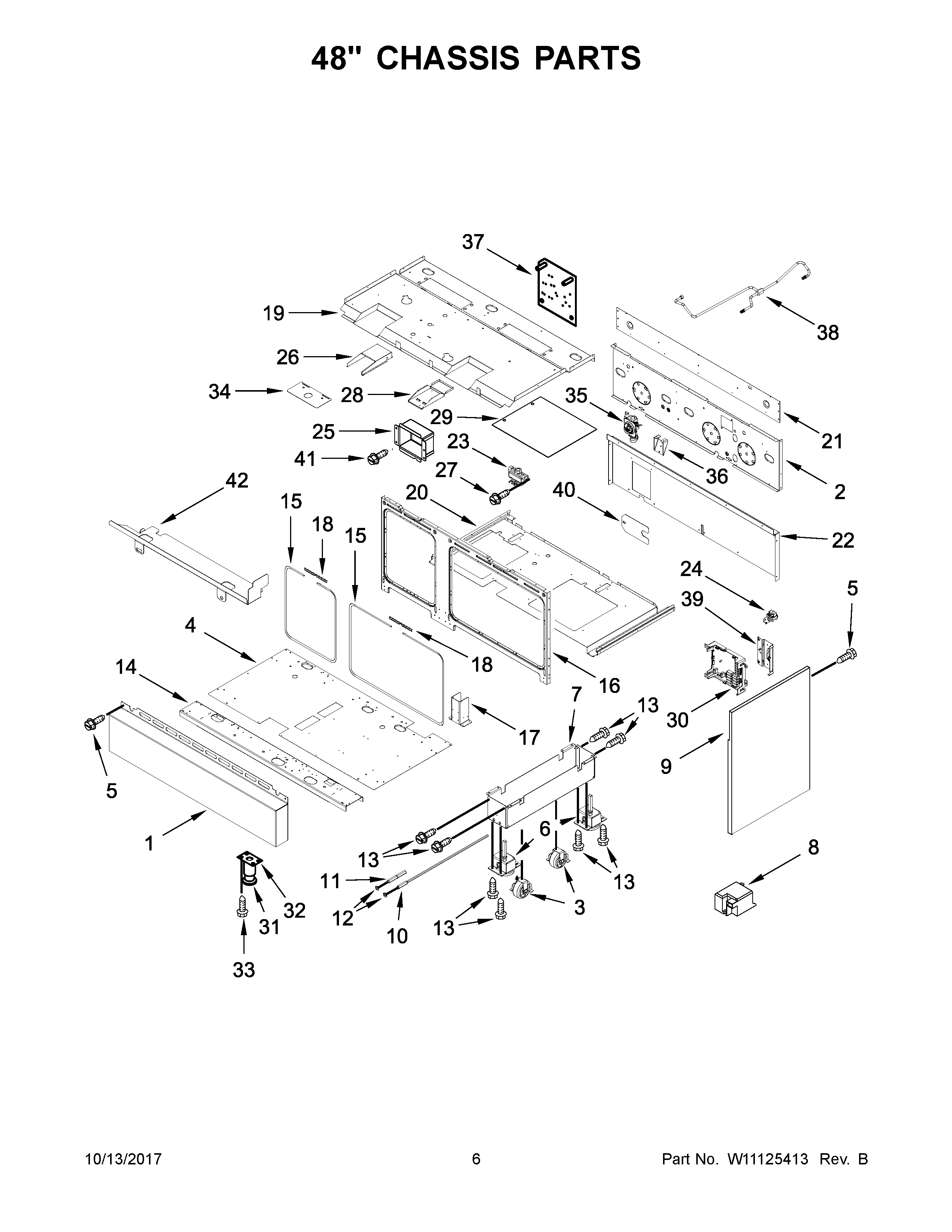

04 - 48" CHASSIS PARTS

JGRP548WP02
Plan number Part Number Description Replacement Price
1 W10454313 TRIM-KICK WPW10454313   $255.46
2 W10145354 COVER-REAR   $107.69
3 W10138054 ROLLER-CAB WPW10138054   $34.87
4 W10774046 DUCT, BOTTOM (48")   $0.00
5 3196537 SCREW WP3196557   $6.31
6 9760860 FOOT-LEVEL W10859931   $83.05
7 W10249333 BRKT-MNTG   $205.23
8 W10116108 MODULE-SPK W11601369   $80.84
9 W10250467 SIDE-COMPT W11321067   $294.35
9A W10250466 PANEL-CBNT   $360.07
10 W10115869 SHAFT   $78.47
11 W10115793 SHAFT   $56.06
12 489504 RING-E   $5.68
13 4449743 MTR SC LRCA BLK WP4449743   $6.34
14 W10145375 SUPPORT   $62.38
15 W10850858 GASKET-DOOR W11675844   $50.41
15A W10775946 GASKT-DOOR   $106.53
16 W10160895 FRAME-FRNT   $246.65
17 W10115819 BRACE   $36.89
18 W10157511 RETAINER W11368870   $17.63
18A W10216520 RETAINER   $39.13
19 W10145372 TOP-OVEN   $143.58
20 W10145369 BOTTM-MAIN   $130.49
21 W10321816 COVER-REAR   $134.90
22 W10145390 COVER-REAR   $70.07
23 W10145680 VALVE,GAS W11239228   $260.34
24 W10311268 VALVE,GAS   $292.04
25 W10308051 BOX-BURNER   $233.58
26 W10235557 DRAWER   $88.90
27 7101P426-60 SCREW WP90767   $6.30
28 W10853036 BRKT-MNTG   $66.35
29 W10239444 SEAL-FOAM   $83.44
30 W10859106 CONTROL BOARD W10888661   $435.70
31 9759117 FOOT-LEVEL WP9759117   $109.49
32 9759118 PLATE-MTG WP9759118   $117.00
33 3400518 SCREW   $11.46
34 W10115855 BRKT-SUPRT   $55.62
35 W10145584 REGULATOR W11193822   $229.92
36 W10308042 BRKT-MNTG   $55.82
37 W10511278 MODULE,SPARK WPW10511278   $246.16
38 W10145704 TUBING-GAS   $170.90
39 W10145362 BRKT-CNTRL   $62.02
40 W10145381 COVR-ACESS   $55.72
41 7101P434-60 SCREW WP7101P434-60   $6.62
35 W10896959 REGULATOR W11193822   $229.92
42 W10774048 DIVERTER W10856770   $80.33
*The price can change whitout warning
