Brand: Whirlpool

Model: KFIV29PCMS02

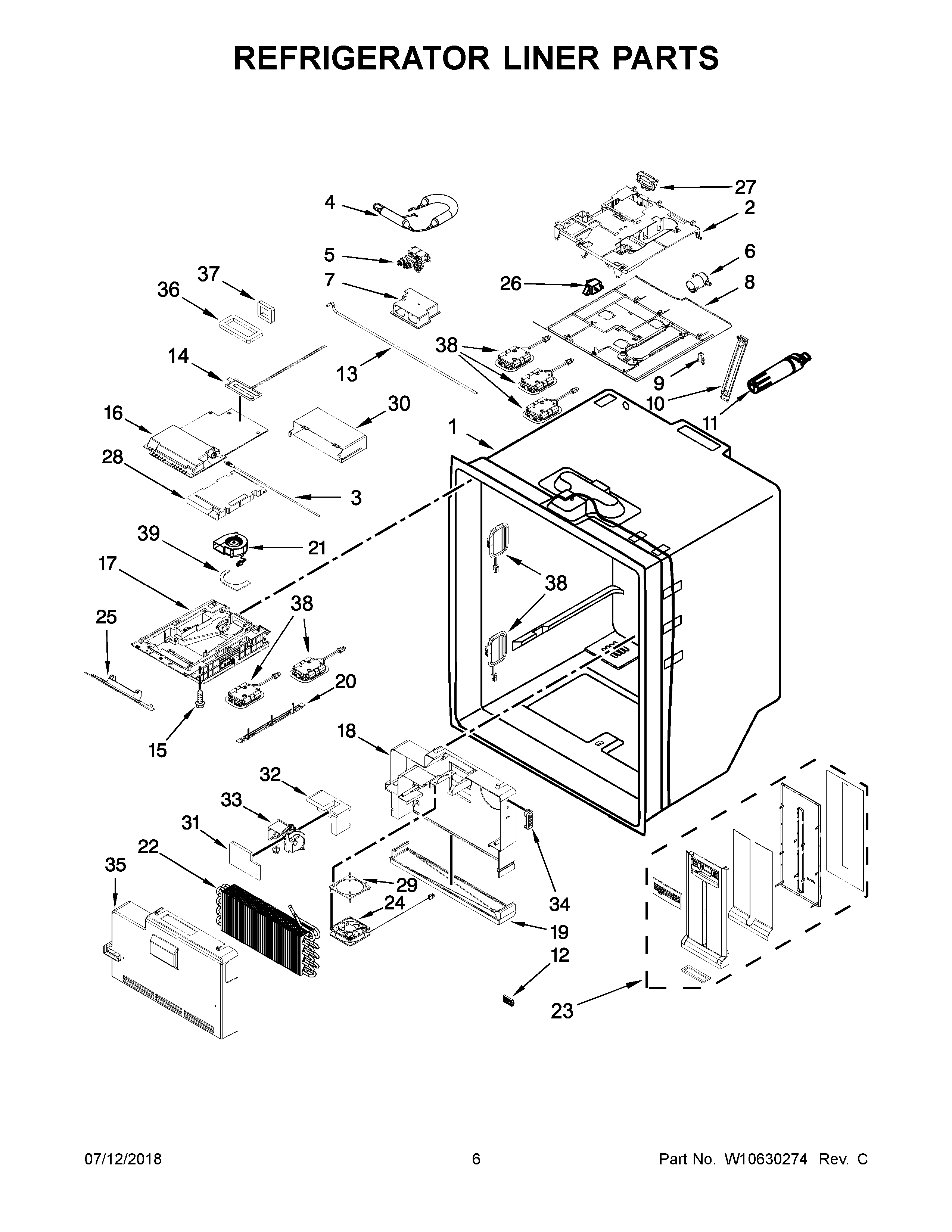

04 - REFRIGERATOR LINER PARTS

KFIV29PCMS02
Plan number Part Number Description Replacement Price
1 N/P LINER (NOT A SERVICEABLE PART)   $0.00
2 W10657942 HOUSING W10842950   $36.52
3 W10736144 TUBE-WATER W11686799   $86.41
4 W10679246 RESERVOIR W11168758   $126.98
5 W10341329 VALVE WPW10341329   $115.97
6 W10238156 HOUSING ASSY,WATER FILTER W11194438   $170.09
7 W10279854 COVER W10811115   $82.24
8 W10561174 COVER W10754145   $65.32
9 2223877 LATCH WP2223877   $88.38
10 W10562514 COVER-FILT   $76.41
11 W10680605 FILTER, WATER EDR2RXD1   $0.00
12 W10315189 "FRESHFLOW" AIR FILTER W10311524   $14.34
13 W10674102 WATERLINE, VALVE TO HINGE W11579166, W11686800     Call to order
14 W10706850 HEATER W11087201   $109.23
15 12990518 SCREW WP67006908   $6.46
16 W10598013 COVER WPW10598013   $113.26
17 W10564049 FOAMED, ICEBOX ASSEMBLY   $0.00
18 W10469927 HOUSING WPW10469927   $0.00
19 W10525237 PAN-DRIP W11457241   $103.92
20 W10561168 TRIM   $23.94
21 W10833801 FAN W10846539   $253.75
22 W10630535 EVAPORATOR W11492867   $207.58
23 W10749499 AIR-TOWER W10860238   $204.85
24 W10724602 MOTOR,EVAPORATOR W10633627   $142.31
25 W10577411 ASSEMBLY, FASCIA W11741469   $0.00
26 C3680310V LIGHT-SWITCH W11384469   $29.43
27 W10434481 BRACKET, RESERVOIR   $0.00
28 W10280983 INSULATION WPW10280983   $67.84
29 W10389152 SUPPORT WPW10389152   $19.96
30 W10635024 ADAPTER WPW10635024   $69.80
31 W10503491 RETAINER W11225849   $17.93
32 W10503492 SUPPORT W11230117   $118.20
33 W10248595 CONTROL WPW10248595   $157.64
34 W10561160 COVER W11190819   $19.08
35 W10564044 COVER,EVAPORATOR W11211387   $184.25
36 W10280988 GASKET WPW10280988   $6.28
37 W10320706 GASKET WPW10320706   $23.00
38 W10637315 ASSEMBLY, LED LIGHT MODULE W10695460, W11683242   $0.00
39 W10392172 GASKET WPW10392172   $23.94
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI W10570599 HARNESS,WIRE W10859326   $93.63
NI W10761050 HARNS-WIRE   $85.65
20 W10785113 TRIM   $97.36
NI W10623957 MODULE W11683242   $230.19
NI W10277799 WIRE ASSY-RC EVAP WPW10277799   $56.31
*The price can change whitout warning
