Brand: Whirlpool
Model: KFIV29PCMS02

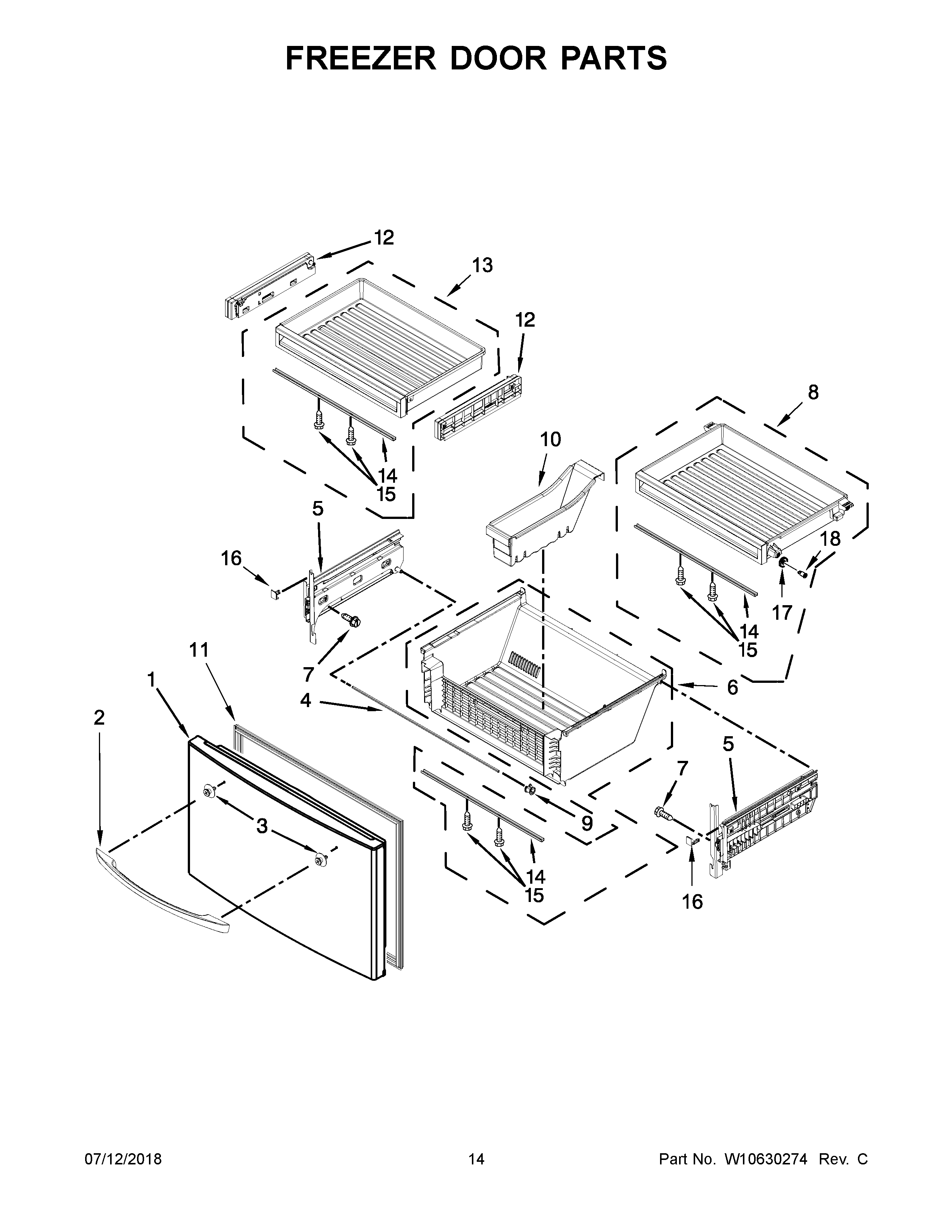

08 - FREEZER DOOR PARTS
- 01 - CONTROL PANEL
- 01 - COVER SHEET
- 01 - UNIT, LITERATURE
- 02 - CABINET PARTS
- 02 - FREEZER LINER PARTS
- 02 - OVEN DOOR
- 02 - REFRIGERATOR LINER
- 03 - DOOR
- 03 - FREEZER LINER PARTS
- 03 - OVEN
- 04 - BULKHEAD PARTS
- 04 - REFRIGERATOR LINER PARTS
- 05 - INTERNAL OVEN
- 05 - REFRIGERATOR DOOR PARTS
- 06 - UNIT PARTS
- 07 - SHELF PARTS
- 07 - TUB AND FRAME PARTS
- 08 - FREEZER DOOR PARTS
- 09 - DISPENSER FRONT PARTS
- 10 - AIR FLOW
- 10 - MOTOR AND ICE CONTAINER PARTS
- 11 - ICEMAKER PARTS
- 12 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10564038 | DOOR-FIP, STAINLESS | LW10564038 | $972.82 | ||
| 2 | W10314522K | HANDLE | WPW10314522K | $224.48 | ||
| 3 | W10460893 | SCREW | WPW10661886 | $10.96 | ||
| 4 | W10503522 | SHAFT | WPW10503522 | $70.14 | ||
| 5 | W10625069 | BRACKET | W11668672 | $383.60 | ||
| 5A | W10625070 | BRACKET | W11668672 | $383.60 | ||
| 6 | W10594052 | BIN-FREEZR | $192.77 | |||
| 7 | 12990518 | SCREW | WP67006908 | $6.46 | ||
| 8 | W10704094 | ASSEMBLY, CENTER PAN | $0.00 | |||
| 9 | W10709748 | CLIP | W10852685 | $9.60 | ||
| 10 | W10562492 | DIVIDER | $79.98 | |||
| 11 | W10248749 | GASKET-FIP | W10407216 | $219.73 | ||
| 12 | W10619221 | BRACKET | W11131390 | $76.87 | ||
| 12A | W10619220 | BRACKET | W11161915 | $76.06 | ||
| 13 | W10564677 | ASSEMBLY, UPPER PAN | $0.00 | |||
| 14 | W10469177 | SUPPORT | W11677723 | $112.57 | ||
| 15 | 489443 | SCREW | WP489443 | $5.09 | ||
| 16 | W10585151 | STOP-PAN | $63.83 | |||
| 16A | W10585150 | STOP-PAN | $63.90 | |||
| 17 | W10248555 | ROLLER | W11578839 | $11.19 | ||
| 18 | W10643690 | AXLE | W11573594 | $14.36 | ||
| 5 | W10795771 | BRACKET | W11668672 | $383.60 | ||
| 5A | W10795769 | BRACKET | W11668672 | $383.60 |
*The price can change whitout warning
