Brand: Electrolux

Model: FGHB2866PF2 - REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE

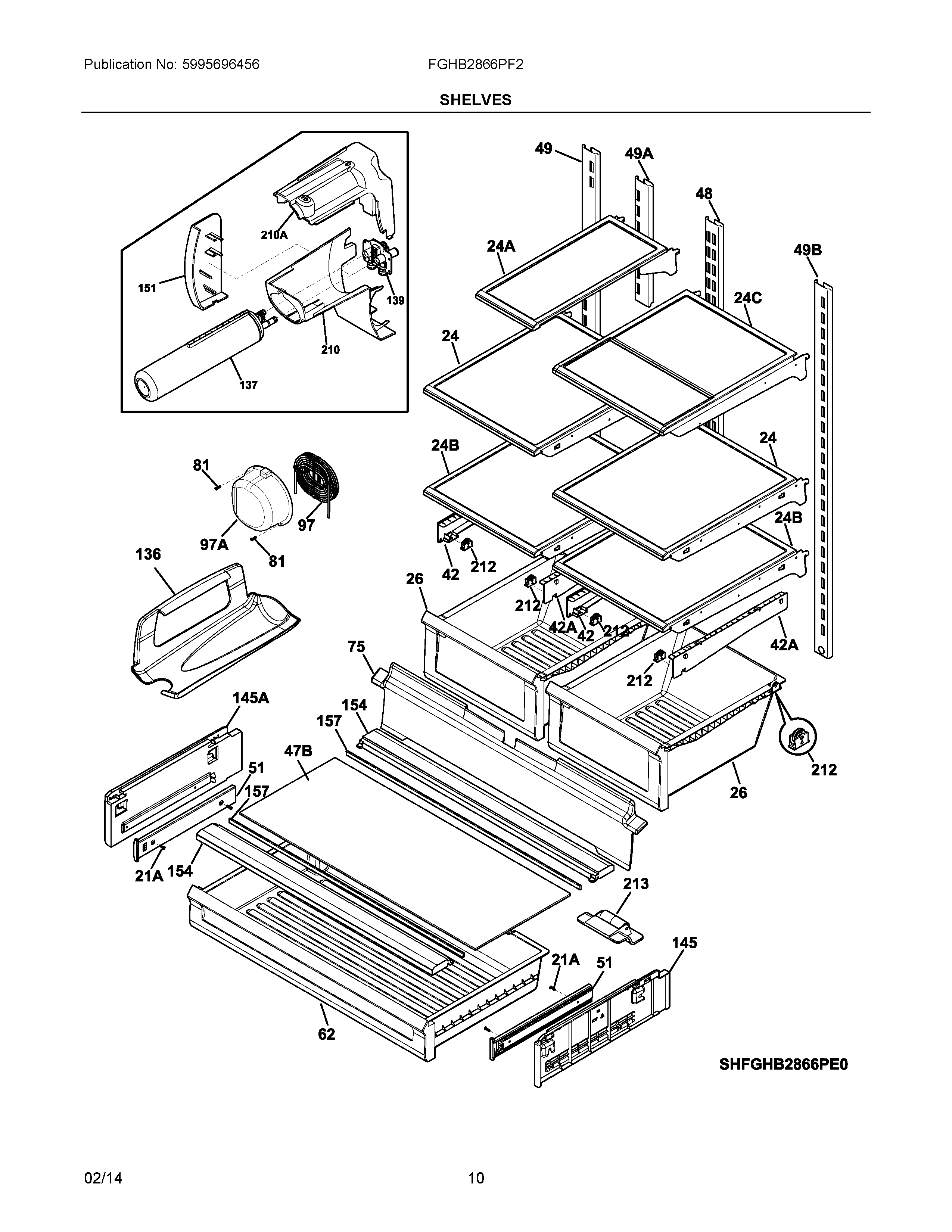

05 - SHELVES

FGHB2866PF2
Plan number Part Number Description Replacement Price
21A 241953902 SCREW 8 18 X .380   $17.40
24 242068701 SHELF   $198.85
24A 242200501 SHELF,"SPILL-SAFE",CANTILEVER   $188.70
24B 242068703 SHELF ***   $211.90
24C 242235501 SHELF,"SPILL-SAFE",CANTILEVER   $227.15
26 241801802 PAN,CRISPER   $221.35
NIA 241695904 SCREW   $0.00
42 242067901 SUPPORT   $23.25
NIA 241953901 SCREW,CONTROL MTG 5304453707   $15.25
42A 242067801 SUPPORT   $45.00
47B 242082303 GLASS,DELI COVER   $103.80
48 242122101 CHANNEL-SHELF MTG,CENTER   $82.00
49 242122201 CHANNEL-SHELF MTG, SIDE, LH   $0.00
49A 242122001 CHANNEL-SHELF MTG,CENTER,ICEMA   $45.00
49B 242122301 CHANNEL-SHELF MTG,SIDE,RH   $79.85
51 242197901 SLIDE,DELI,(2)   $137.15
62 242096802 PAN   $297.55
75 242072702 SHIELD   $121.95
81 240383407 SCREW   $13.05
97 242082002 TUBE,WATER INLET 242220204   $37.00
97A 242117301 COVER-WATER TANK   $74.05
NIAA 242004802 INSULATION-AIR DUCT,FOAM STRIP   $5.80
136 241657701 CAN DISPENSER WHITE   $58.80
137 241791601 WATER FILTER,PS ULTRA SYSTEM ULTRAWFC   $74.60
139 242009601 BASE,WATER FILTER 242009602   $68.20
145 242200001 SUPPORT,DELI SLIDE RAIL,RH 242200003   $74.75
145A 242200002 SUPPORT,DELI SLIDE RAIL,LH 242200004   $79.10
151 242069701 COVER-WATER FILTER   $63.85
154 242082401 SUPPORT   $0.00
NIA 242015001 SCREW 10 8 19 X 1/2   $16.70
157 241872201 BEAM CRISPER COVER   $51.55
210 241983805 HOUSING,WATER FILTER 241983816   $75.50
NIA 240363402 SCREW,CONTROL MTG 5304453707   $15.25
210A 241998302 MOUNT-WATER FILTER 241998303   $13.80
212 242236801 ROLLER ASSY,CRISPER PAN   $21.05
213 242010901 ROLLER ASSY,DELI PAN   $50.80
NI 241500303 SCREW,HEX WASHER HEAD,8-18AB X   $4.35
NI 242146271 LABEL, ENERGY GUIDE   $0.00
NI 5304455650 SCREW   $14.50
*The price can change whitout warning
