Brand: Electrolux

Model: FGHB2866PF2 - REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE

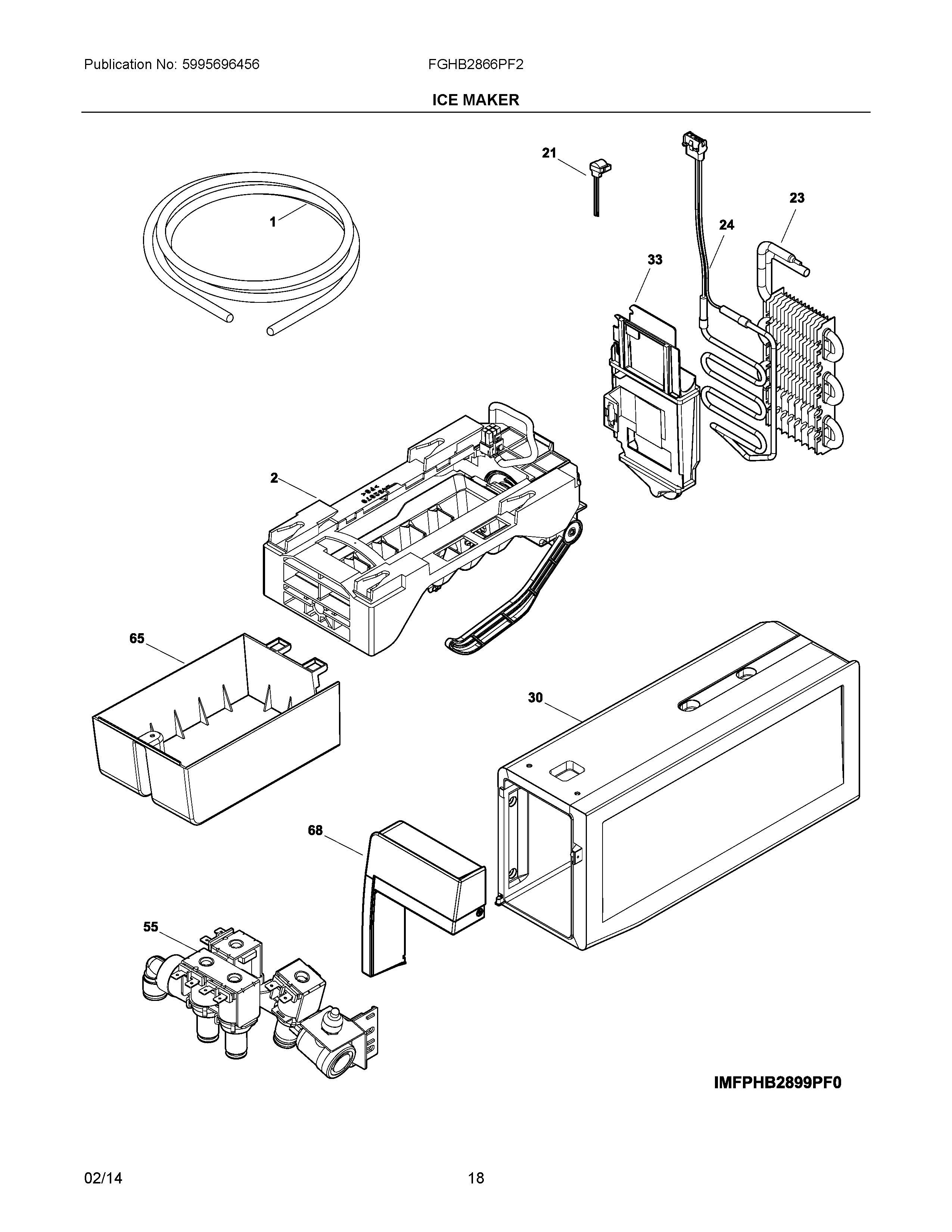

09 - ICE MAKER

FGHB2866PF2
Plan number Part Number Description Replacement Price
1 218976434 TUBE-WATER INLET,INLET VALVE 218976436   $8.70
NIA 241844403 TUBE   $13.05
NIB 241920104 FILL TUBE KIT 241920106   $58.05
NIC 241964707 WATER TUBE,1/4-36"   $18.85
NID 241965906 WATER TUBE,5/16,67"   $24.70
NIE 242082105 TUBE,WATER INLET 242220204   $37.00
NIF 242082106 TUBE,WATER INLET 242220204   $37.00
NIG 242169404 WATER TUBE KIT,VALVE 5303918602   $76.95
2 243297603 ICE MAKER, COMPLETE, 115 V 243297606, 243297613   $0.00
21 5303918568 THERMOSTAT,DEFROST   $93.60
23 242094603 EVAPORATOR,ICE MAKER   $117.55
24 242094802 DEFROST HEATER   $100.90
30 242142201 HOUSING 242093501   $172.70
NIA 241695906 SCREW,10-16AB X 0.50   $19.60
NIB 242124801 AIR HANDLER HOUSING KIT 5303918784   $129.90
NID 242146001 AIR HANDLER HOUSING KIT 5303918784   $129.90
33 242094401 HOUSING KIT 5303918747   $13.35
NIA 215688131 TAPE, ALUMINUM, 2" WD X 3.50" L   $0.00
NIB 242095401 AIR HANDLER HOUSING KIT 5303918784   $129.90
NIC 242095402 AIR HANDLER HOUSING KIT 5303918784   $129.90
NID 242095403 AIR HANDLER HOUSING KIT 5303918784   $129.90
NIE 242095404 AIR HANDLER HOUSING KIT 5303918784   $129.90
NIF 242095405 AIR HANDLER HOUSING KIT 5303918784   $129.90
NIG 242095408 AIR HANDLER HOUSING KIT 5303918784   $129.90
NIH 242095409 GASKET 242095425   $10.15
55 242253002 VALVE,WATER QUAD SOLENOID   $206.85
NIA 218709101 SCREW-HDL MTG,HEX WSH HD,#10AB   $6.55
NIB 240363602 SCREW-SHOULDER,#12-11,HEX HD   $13.05
65 242232701 COVER,WIRING   $32.65
NIA 241953902 SCREW 8 18 X .380   $17.40
68 242095002 COVER,BUCKET   $97.25
NIA 242096001 INSULATION,I/CONTAINER FRT   $18.85
NI 240396801 CLAMP TUBE   $19.60
NI 241503901 TUBE ADAPTER   $52.25
NI 242039701 SCREW   $13.80
NI 242103001 CONNCETOR-WATER,STRAIGHT 241806601   $69.65
*The price can change whitout warning
