Brand: Whirlpool
Model: WED7505FW0 - LAUNDRY, RESIDENTIAL, ELECTRIC DRYER, 27 INCH

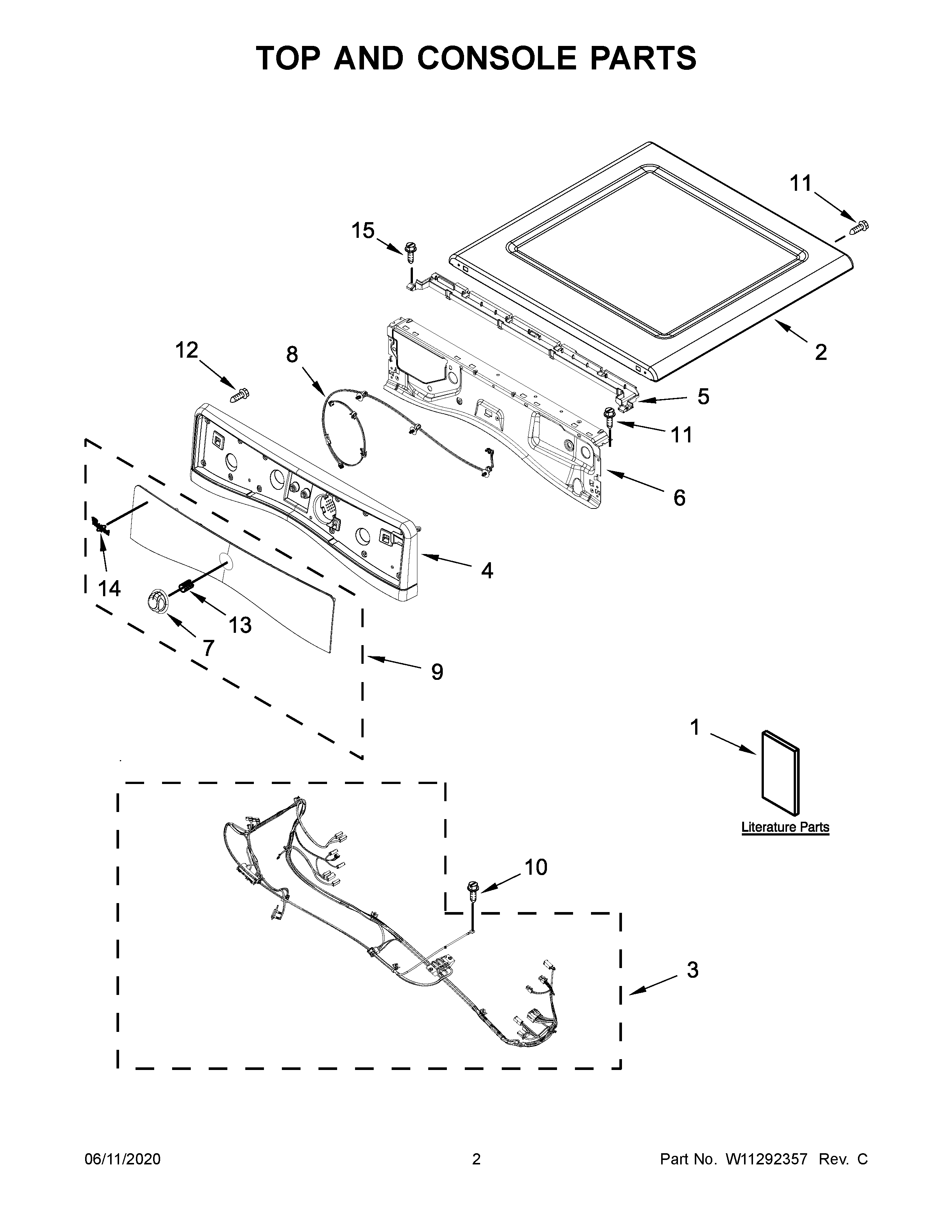

02 - TOP AND CONSOLE PARTS
- 01 - COVER SHEET
- 02 - TOP AND CONSOLE PARTS
- 03 - CABINET PARTS
- 04 - BULKHEAD PARTS
- 05 - DOOR PARTS
- 06 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10804688 | USE AND CARE GUIDE | $0.00 | |||
| 1A | W10806847 | TECH SHEET | $0.00 | |||
| 1B | W11101374 | INSTALLATION INSTRUCTIONS | $0.00 | |||
| 1C | W10804668 | QUICK START GUIDE | $0.00 | |||
| 1D | W10807800 | WIRING DIAGRAM | $0.00 | |||
| 2 | W10208383 | TOP PANEL - WHITE | WPW10208383 | $228.51 | ||
| 3 | W10637533 | HARNS-WIRE | $205.00 | |||
| 4 | W10391519 | CONSOLE | WPW10391519 | $129.32 | ||
| 5 | W10636058 | CHANNEL | WPW10653575 | $67.00 | ||
| 6 | W10208198 | BRACKET | W11480682 | $54.40 | ||
| 7 | W10783726 | KNOB | W10875909 | $39.31 | ||
| 8 | W10540654 | HARNESS,WIRE | W11025125 | $12.25 | ||
| 9 | W10825125 | PANEL-CNTL | W10919222 | $329.63 | ||
| 10 | 693995 | SCREW | WP693995 | $6.32 | ||
| 11 | 3390647 | SCREW | WP488729 | $6.39 | ||
| 12 | W10489172 | SCREW | $10.55 | |||
| 13 | 8536939 | SPRING CLIP KNOB | WP8536939 | $7.03 | ||
| 14 | W10510981 | BADGE (WHITE) | $0.00 | |||
| 15 | 12990702 | SCREW | W11686675 | $11.19 |
*The price can change whitout warning
