Brand: Whirlpool

Model: WED7505FW0 - LAUNDRY, RESIDENTIAL, ELECTRIC DRYER, 27 INCH

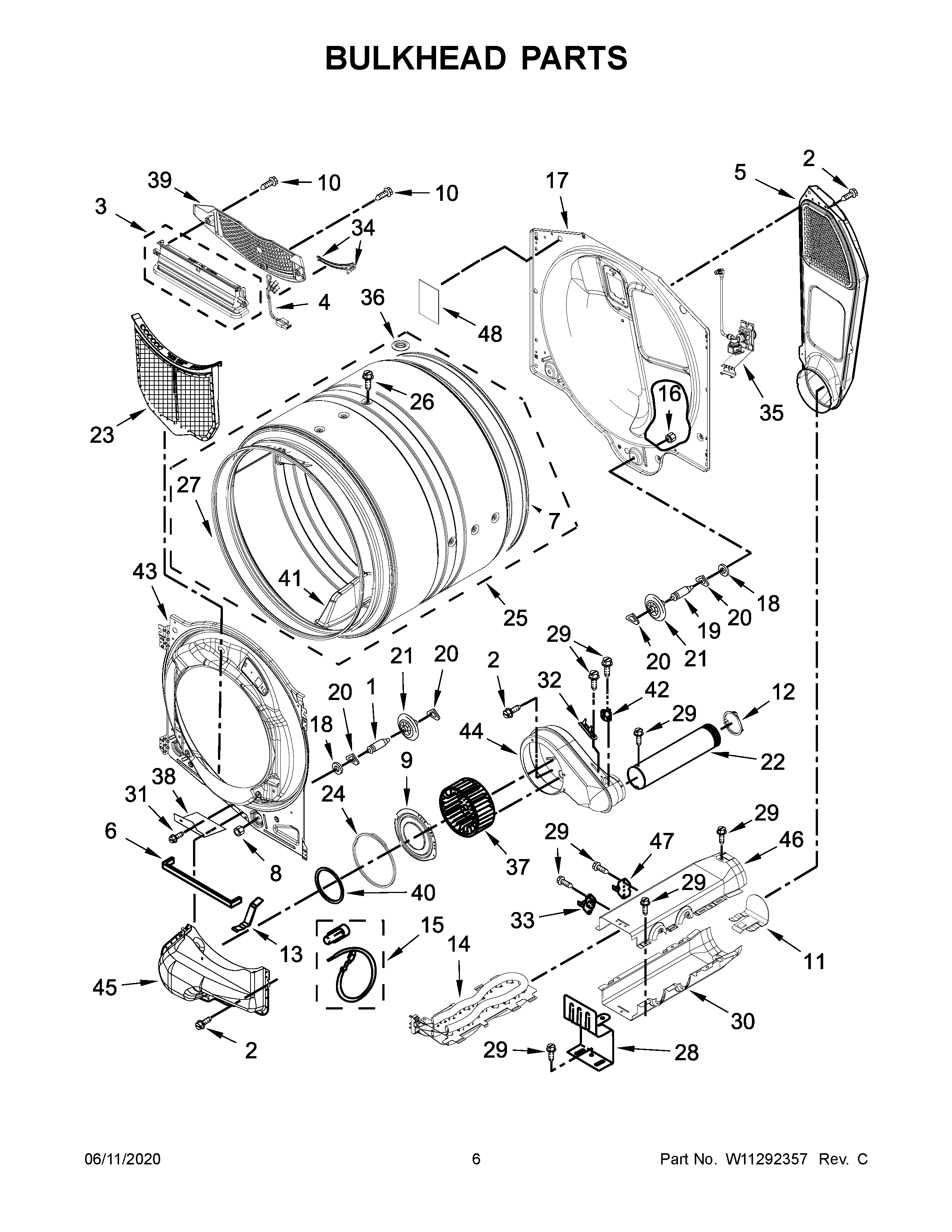

04 - BULKHEAD PARTS

WED7505FW0
Plan number Part Number Description Replacement Price
1 W10359271 SHAFT-DRUM ROLLER DOTT RH WPW10359271   $68.80
2 3390647 SCREW WP488729   $6.39
3 W10672683 HOUSING-OUT W10906551   $247.66
4 W10298258 HARNESS,WIRE WPW10298258   $6.85
5 697354 DUCT-AIR WP3387911   $233.90
6 W10211950 SEAL W11676493   $20.30
7 W10521118 SEAL 280114   $60.30
8 3934666 NUT WPW10080210   $6.32
9 W10211901 COVER   $67.63
10 W10794806 SCREW W11590579   $11.19
11 8544776 CLIP   $14.01
12 W10344699 COLLAR WPW10344699   $61.80
13 W10414388 CLIP   $11.17
14 W10836011 ELEMENT WP8544771   $146.30
15 279457 WIRE   $7.32
16 W10001120 NUT WPW10080190   $6.32
17 8520836 BULKHEAD W11299301   $178.33
18 3387459 WASHER W11236646   $12.16
19 W10359272 SHAFT-DRUM ROLLER DOTT LH WPW10359272   $67.83
20 W10512946 RING WPW10512946   $9.51
21 W10314171 DRUM ROLLER WPW10314173   $23.37
22 W10342188 PIPE,EXHAUST WPW10342188   $99.90
23 W10516085 SCREEN WPW10516085   $83.05
24 697770 SEAL WP697770   $6.27
25 W10381481 DRUM   $338.01
26 W10219342 SCREW W10853898   $6.95
27 W10521122 SEAL,DRUM BACK W11193479   $17.56
28 8066099 BRACKET   $16.86
29 693995 SCREW WP693995   $6.32
30 8544770 HOUSING WP8544770   $130.06
31 489463 SCREW WP489463   $5.42
32 W10693363 THERMAL FUSE W10909685   $86.13
33 8577274 THERMISTOR WP8577274   $43.47
34 3387223 ELECTRODE WP3387223   $4.44
35 W10657898 VALVE W11179718   $187.17
36 W10665050 PLUG   $13.34
37 W10211915 WHEEL, BLOWER WPW10211915, WP697772   $0.00
38 W10128629 SHIELD W11257251   $53.16
39 W10672682 GRILL-OUT W11125442   $169.41
40 W10211899 SEAL   $11.04
41 W10416098 BAFFLE-DRM   $77.63
42 8557403 INLET THER HIGH LIMIT STAT WP8557403   $118.55
43 W10673493 BULKHEAD W11712678   $168.28
44 W10211911 HOUSING WPW10211911   $108.78
45 W10211896 LINT DUCT ASSY WPW10211896   $155.53
46 8544769 BOX WP8544769   $130.23
47 280148 CUTOFF   $75.74
48 W10653662 PAD W11409002   $17.63
17 W11162455 BULKHEAD W11299301   $178.33
33 8557403 INLET THER HIGH LIMIT STAT WP8557403   $118.55
42 8577274 THERMISTOR WP8577274   $43.47
*The price can change whitout warning
