Brand: Whirlpool

Model: WRF560SEHB00 - REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT

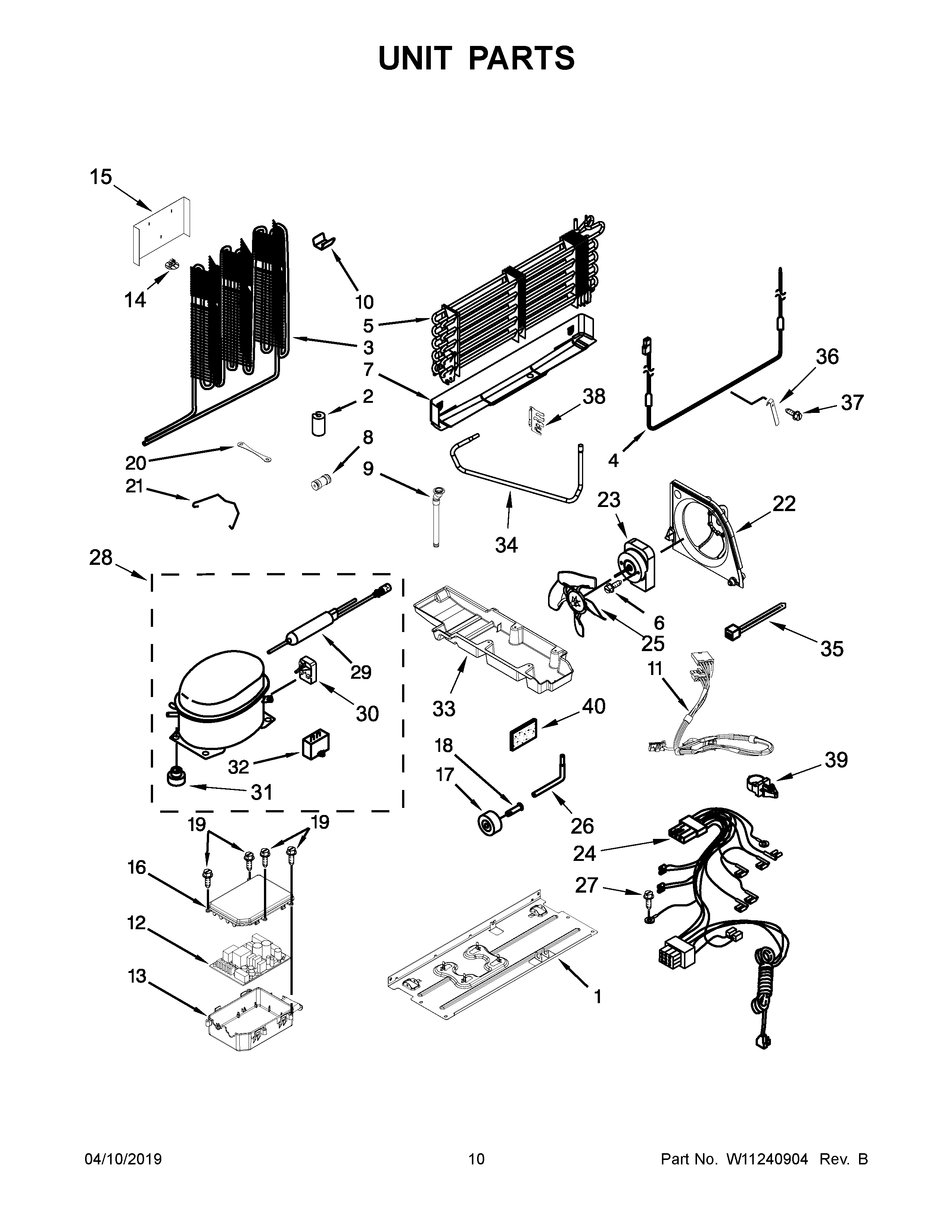

06 - UNIT PARTS

WRF560SEHB00
Plan number Part Number Description Replacement Price
1 W10300116 PLATE   $0.00
2 2319835 GROMMET W10852725   $6.80
3 W10342567 CONDENSER WPW10342567   $214.96
4 W10436849 HEATER WPW10436849   $163.41
5 W10321158 EVAPORATOR WPW10321158   $297.72
6 8533961 SCREW W11501418   $11.19
7 W10314195 SHIELD WPW10314195   $78.29
8 W10271541 CONNECTOR-WATER 5/16 X 5/16 WP2300868   $28.01
9 W10314199 DRAIN TUBE W11190084   $49.28
10 W10248621 CLIP W10683556   $12.85
11 W10424230 HARNESS,WIRE WPW10424230   $95.52
12 W10892333 CONTROL,ELECTRONIC W11035836   $304.54
13 2323186 HOUSING   $79.00
14 10835903SP GROMMET WPW10169124   $5.83
15 W10448874 START DEVICE WPW10448874   $127.81
16 W10313215 COVER-BOX   $60.27
17 W10475495 ROLLER-CAB WPW10475495   $27.54
18 2179826 RIVET W11594405   $14.36
19 8533859 SCREW WPW10171469   $7.38
20 W10236396 STRAP   $15.80
21 W10174384 CLIP   $9.14
22 2315541 BRACKET ASSY-COND FAN WP2315541   $62.16
23 W10530280 MOTOR, CONDENSER W11177620, W11563806   $0.00
24 W10633276 WIRING HARNESS   $173.54
25 W10817071 BLADE,FAN W11193484   $73.61
26 VS20001 TUBE W11676464   $74.91
27 488500 SCREW WP489128   $9.34
28 W10445423 COMPRESSOR WPW10507886   $671.74
29 W10669573 DRIER-TUBE W10843121   $48.61
30 W10349514 BAFFLE-AIR   $60.34
31 W10815861 CLIP   $12.57
32 W10590083 CAPACITOR WPW10662129   $68.19
33 W10802027 DRIP-PAN W10890667   $117.40
34 W10510988 TUBE   $49.74
35 2263990 TIE-WIRE WPW10339879   $6.32
36 2258429 HEAT-PROBE W10856574   $10.02
37 489478 SCREW WP489478   $6.50
38 W10314197 BRACKET   $16.06
39 2219077 CLIP   $0.00
40 W10519112 DRAIN TUBE W11190084   $49.28
41 2215468 INSULATION W11553819   $11.19
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI 978025 VALVE WP978025   $79.00
NI 978026 VALVE   $94.63
NI 978027 VALVE   $96.52
NI 978029 VALVE, ACCESS (5/8")   $0.00
NI 978030 VALVE   $101.28
NI 876764 VALVE   $73.02
NI N/P REFRIGERANT CHARGE 4.25 OZ (R-134A)   $0.00
40 2215468 INSULATION W11553819   $11.19
*The price can change whitout warning
