Brand: Whirlpool

Model: WRF560SEHB00 - REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT

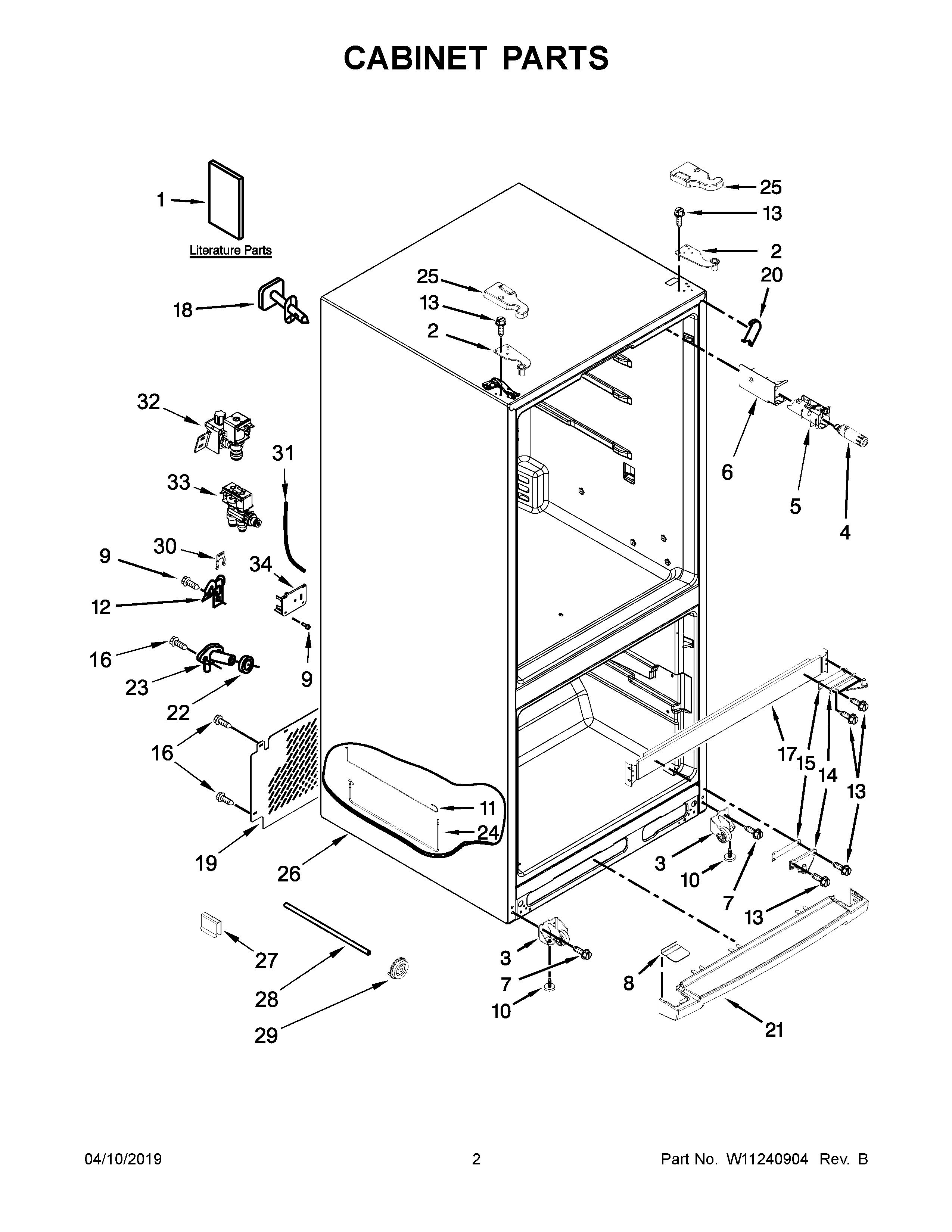

02 - CABINET PARTS

WRF560SEHB00
Plan number Part Number Description Replacement Price
1 W10641018 TECH SHEET   $0.00
1A W11112396 ENERGY GUIDE   $0.00
1B W10360467 USE AND CARE GUIDE   $0.00
1C 2225623 ICEMAKER SERVICE SHEET 628370   $0.00
2 W10546298 HINGE,DOOR   $54.21
2A W10546299 HINGE,DOOR W11573371   $17.78
3 W10359256 CAB ROLLER,LEFT WPW10359256   $67.00
3A W10359255 CAB ROLLER,RIGHT WPW10359255   $77.77
4 W10569758 FILTER, WATER W10295370A, EDR1RXD1, EDR1RXD1B   $0.00
5 W10346257 HOUSING ASSY - WATER FILTER W10844267   $170.02
6 W10306392 COVER-FILT WPW10306392   $81.96
7 489497 VIS WP489497   $9.27
8 W10339257 ENDCAP,GRILLE WPW10339257   $68.31
8A W10353930 ENDCAP-GRL   $68.25
8B W10353932 ENDCAP,GRILLE WPW10353932   $68.38
9 489442 SCREW WP489442   $9.33
10 W10141622 BRAKE-LOWER FOOT WPW10141622   $4.69
11 W10740689 TUBE-WATER W11195038   $91.32
12 549193 CLAMP   $11.21
13 489497 VIS WP489497   $9.27
14 W10770878 HINGE,DOOR   $59.67
14A W10770877 HINGE,DOOR W11417064   $50.76
15 W10450363 SHIM WPW10450363   $22.72
16 2262176 SCREW WP488729   $6.39
17 N/P RAIL, CENTER (NOT SERVICED)   $0.00
18 N/P FITTING, WATER TUBE (NOT SERVICED)   $0.00
19 W10636716 COVER   $78.20
20 W11189128 FILLER W11219639   $9.87
20A W11189127 FILLER W11219641   $9.87
20B W11189126 FILLER W11219642   $9.87
21 W10300127 GRILLE WPW10300127   $124.78
21A W10353933 GRILLE WPW10353933   $125.80
21B W10353935 GRILLE WPW10353935   $126.04
22 1106508 GASKET-SEAL WP1106508   $7.22
23 W10601149 FITTING WPW10601149   $6.33
24 W10667756 RESERVOIR W10801011   $130.89
25 W10465765 COVER   $18.55
25A W10465764 COVER   $17.66
25B W10465771 COVER   $14.53
25C W10465770 COVER   $18.44
25D W10465768 COVER   $17.90
25E W10465767 COVER   $18.36
26 N/P CABINET (NOT A SERVICEABLE PART)   $0.00
27 2174706 HITCH PIN WP2174706   $9.64
28 W10463317 TUBE-WATER WPW10463317   $97.54
29 W10331226 CLIP   $36.64
30 W10782423 RING   $19.86
30A W10782424 RING   $21.11
31 W10837812 TUBE-WATER W11680400   $62.36
32 W10279866 VALVE-INLET WPW10279866   $185.75
33 W10498992 VALVE ASSY-WATER,SINGLE WPW10238100   $162.68
34 W10237915 BRACKET W10847867   $64.57
4 W10735398 EVERYDROP WATER FILTER EDR1RXD1B, EDR1RXD1   $54.99
5 W10817430 HOUSING ASSY - WATER FILTER W10844267   $170.02
23 W11249272 FITTING W11292468   $126.00
30 W11175632 RING W11676611   $11.19
30A W11175631 RING W11678575   $11.19
*The price can change whitout warning
