Brand: Electrolux

Model: FPFU19F8RFE - FREEZER, UPRIGHT, W/ICE MAKER

04 - SYSTEM

FPFU19F8RFE

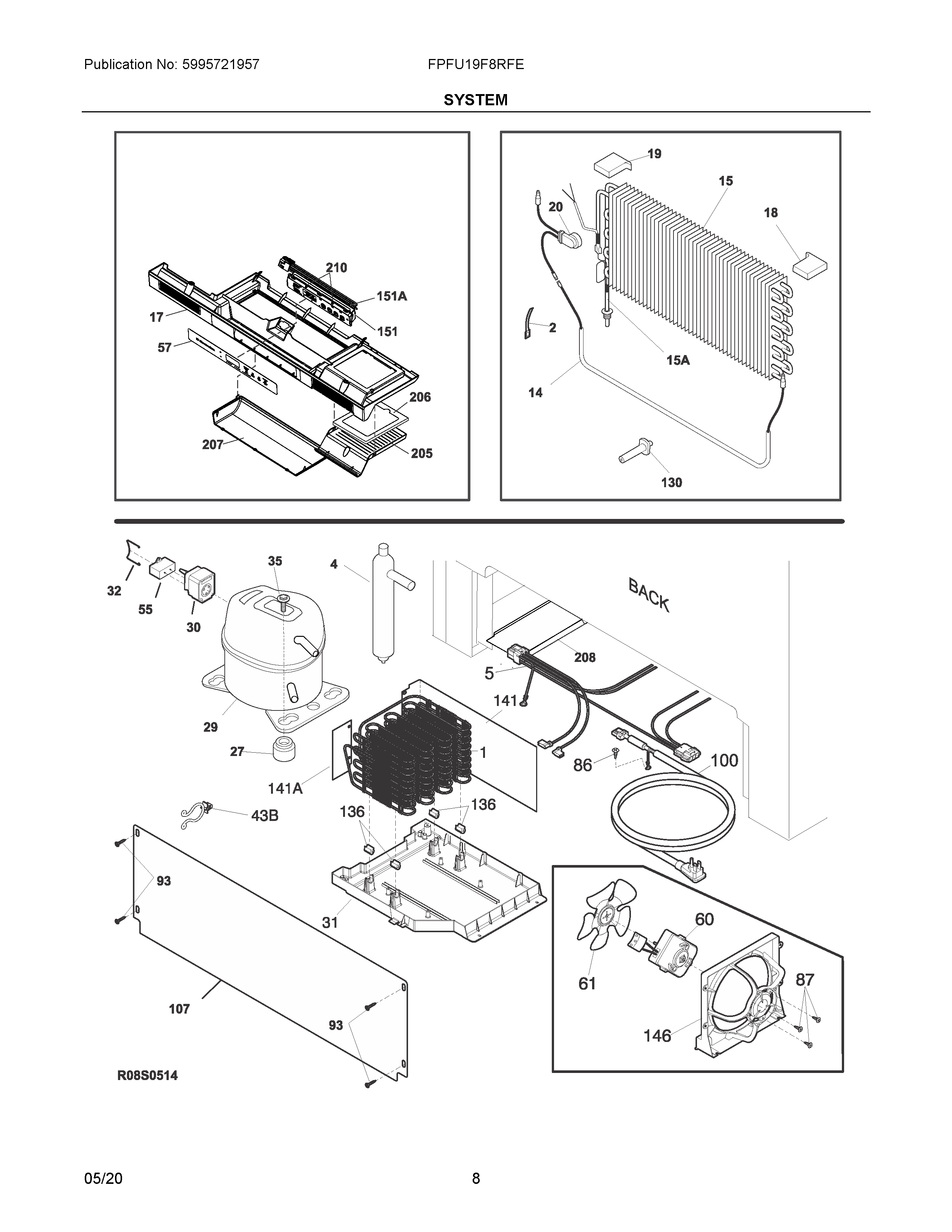

Plan number Part Number Description Replacement Price
1 5300083897 CONDENSOR   $540.65
2 5308000110 STRAP-EVAP/HEATER   $63.85
4 297396820 FILTER-DRYER 5303305677, 60041     Call to order
5 297325503 HARNESS-WIRING,ICEMAKER   $108.15
14 216730700 ELEMENT DEFROST   $111.75
15 297414900 EVAPORATOR 297414901   $168.35
15A 297217900 HEAT EXCHANGE CAP TUBE   $92.15
17 297269000 BOX-CONTROL   $0.00
18 297078701 INSULATOR EVAP,STYROFOAM,RH   $3.65
19 297078801 INSULATOR EVAP,STYROFOAM,LH   $3.65
20 297216600 DEFROST THERMOSTAT   $23.95
27 297368501 BOLT,COMPRESSOR   $5.10
29 5304494536 COMPRESSOR   $682.90
30 297237702 CONTROLLER   $101.60
31 297165800 DRAIN PAN   $91.45
32 241982601 CLAMP,ELEC CONT MTG ,COMPRESSO   $10.90
34 5304511843 SLEEVE   $13.80
35 216273000 CLIP   $22.50
43B 297315800 CLIP,WIRE   $10.15
50A 241891608 POWER BOARD-LED   $259.10
55 297286802 CAPACITOR MARKET, 12 MF   $48.65
57 297269408 OVERLAY   $49.35
60 297279502 MOTOR,CONDENSER FAN 242018301   $149.80
61 241639501 FAN BLADE 241639502   $21.05
86 216036601 SCREW,RWHD,8-32A X 0.500,GX-CA   $13.05
87 5304463290 SCREW,8-18X.50 AB,#10 216858001   $10.90
93 216858001 SCREW,8-18X.50 AB,#10   $10.90
100 297366800 POWER CORD 297366805   $68.95
107 297165400 SHIELD,COMPRESSOR COMPARTMENT   $20.35
130 297244700 SUPPORT,EVAPORATOR   $4.35
136 240405201 GROMMET,CONDENSOR   $20.35
141 297164202 DIVIDER,AIR FLOW   $68.20
141A 297194700 DIVIDER SMALL AIR FLOW   $6.55
146 297164000 SHROUD-FAN ORFICE   $73.30
NIA 216337701 SCREW,HWH,10-24 X 0.500,SWAGE   $13.80
151 5304497788 CONTROLLER,ELECTRONIC   $221.35
151A 5304495183 HARNESS-JUMPER 808772801   $40.65
205 297294301 HOLDER, AIR FILTER 297294300   $0.00
206 242047801 ELECTROLUX AIR FILTER,CARBON EAFCBF, WG03F02390   $26.85
207 297294501 SHIELD-LIGHT, WHITE   $0.00
210 216905301 SCREW PH 324X.25 ELECTRONIC AS   $14.50
NI 297110400 THERMISTOR   $79.85
NI 297014500 PLUG,SUCTION LINE 297014702   $9.45
NI 216737600 TAPE,3" X 1",FOIL 5304485759   $0.75
NI 240555002 SCREW-#8-32 X 3/8   $13.80
NI 297174300 SCREW,#8,18X.63,SELF PIERCE   $12.35
1 297152200 CONDENSER DYNAMIC   $173.45
*The price can change whitout warning
