Brand: Electrolux

Model: FPFU19F8RFE - FREEZER, UPRIGHT, W/ICE MAKER

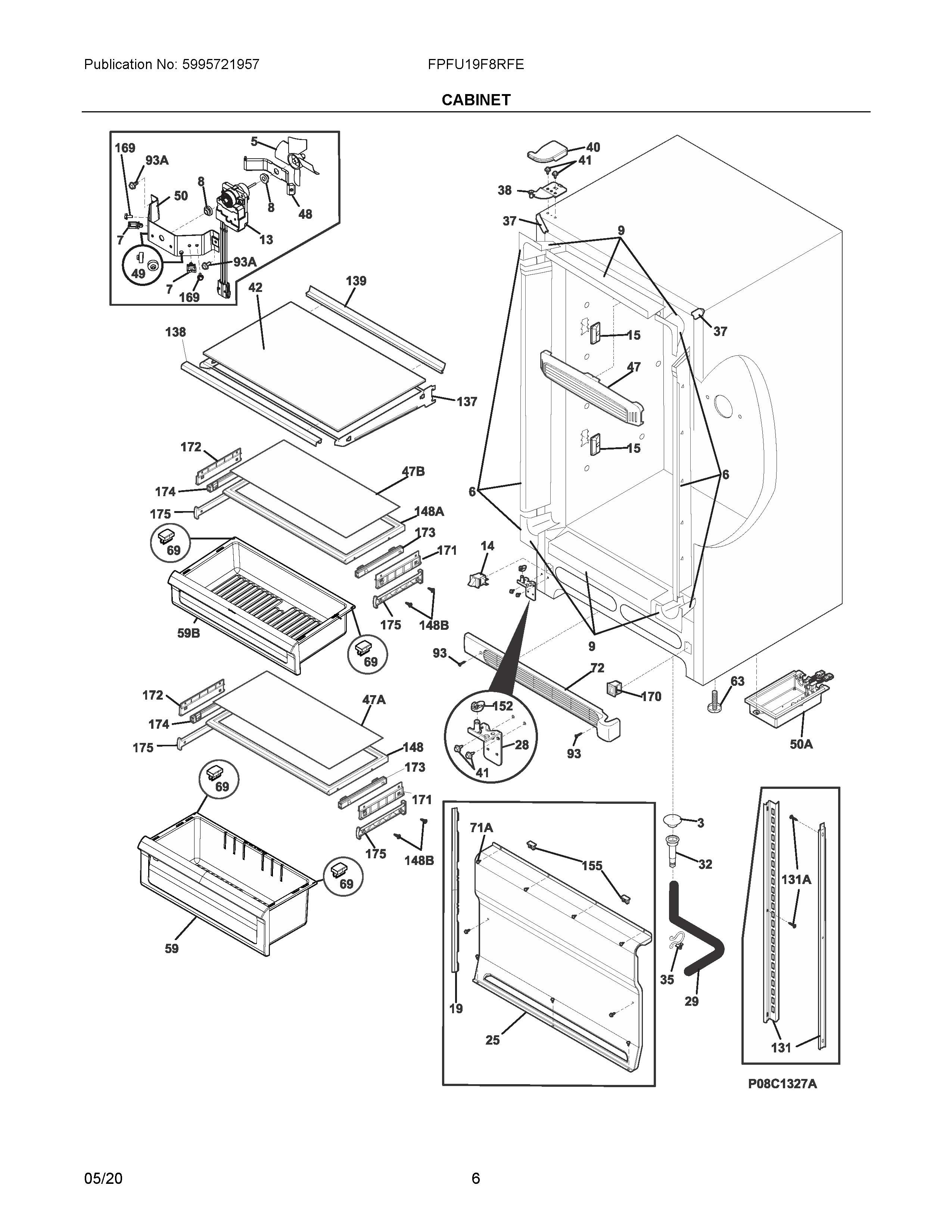

03 - CABINET

FPFU19F8RFE
Plan number Part Number Description Replacement Price
3 216503100 SCREEN DRAIN   $62.40
5 216325600 FAN PLASTIC EVAP. 5308000010   $58.80
6 297200900 BREAKER KIT W/CORNERS   $71.10
7 216327800 CLIP, WIRE   $0.00
8 5304495760 BUSHING,MOTOR MTG.,(2)   $14.50
9 297200100 BREAKER KIT W/CORNERS   $59.50
13 5304504914 MOTOR,EVAPORATOR   $139.35
14 216822901 LAMP 216822900   $71.85
15 241891105 LIGHT, LED 241891106   $89.25
NIA 216858001 SCREW,8-18X.50 AB,#10   $10.90
19 216204902 GASKET-EVAP COVER   $0.00
21A 218362501 SCREW,HEX WASHER HEAD,8-18AB X   $12.35
25 297099255 COVER-EVAPORATOR   $0.00
26C 297295602 PANEL,CRISPER WINDOW   $57.35
26E 297099400 DIVIDER-CRISPER SHALLOW   $64.60
28 297302513 HINGE-LOWER,LH,W/BEARING   $31.95
29 5304510353 HOSE,DRAIN,17.8 INCH   $13.80
NIA 297001704 INSULATION,24",DRAIN TUBE   $20.35
30 297215701 BREAKER,CORNERS   $12.35
31 297165800 DRAIN PAN   $91.45
32 5308005500 DRAIN   $0.00
35 216273000 CLIP   $22.50
37 297273906 TRIM-CABINET CORNER,GRAY   $7.25
38 297303901 HINGE-UPPER, LH   $0.00
40 297304001 COVER-HINGE, GRAY, LH   $0.00
41 297236250 SCREW-HINGE 240578902   $14.50
42 297265900 GLASS SHELF   $156.75
47 297192903 BAFFLE,AIR   $25.40
47A 297102705 COVER,GLASS   $144.40
47B 297102704 GLASS,CRISPER COVER   $147.30
48 297436400 BRACKET-FAN MOTOR   $11.60
49 297436200 GROMMET   $8.00
50 216394050 BRACKET,FAN MOTOR MOUNT   $21.80
50A 241891608 POWER BOARD-LED   $259.10
59 5304517749 VEG PAN DRAWER ASSY A11791811   $217.00
59B 297292302 DRAWER,DELI   $229.35
63 216396900 SCREW, LEVELING FOOT, PLASTIC, ADJUSTABLE WG03F04389   $0.00
NIA 297164650 BRACKET,LH LEG LEVELOR   $18.15
NIB 297164651 BRACKET, RH LEG LEVELOR   $0.00
69 297297300 BUMPER, CRISPER   $0.00
71A 297146820 SCREW, 8-18AB X.470 QX   $0.00
72 297036907 KICK PLATE 32" GRAY   $37.00
93 297410600 SCREW,8-18 X .500   $3.65
93A 297174300 SCREW,#8,18X.63,SELF PIERCE   $12.35
130 297244700 SUPPORT,EVAPORATOR   $4.35
131 297130200 CHANNEL-SHELF MTG,SIDE   $57.35
131A 297146821 SCREW, TH, 8-18X.470 AB QX, WHITE, (6)   $0.00
137 297050600 FRAME-SHELF,CANTILEVER   $180.00
138 297261400 TRIM-SHELF, FRONT   $0.00
139 297261500 TRIM-SHELF, REAR   $0.00
148 297271700 FRAME-CRISPER COVER   $0.00
148A 297271701 FRAME-CRISPER COVER, LOWER   $0.00
148B 297142600 SCREW   $13.05
151 5304497788 CONTROLLER,ELECTRONIC   $221.35
152 297302700 BEARING-HINGE   $0.00
155 5303313703 CLIP   $8.55
169 216912401 SCREW,HEX WASHER HEAD,8-32 X 0   $13.05
170 297280403 VALVE,BREATHER   $21.80
171 297092700 BRACKET   $53.00
172 297092701 BRACKET CRISPER COVER LH   $54.45
174 5304515501 SLIDE,CRISPER,LH   $78.40
173 5304515502 SLIDE,CRISPER,RH   $77.65
175 297099500 SUPPORT,CRISPER   $45.00
NI TRIMKITEZ2 TRIM KIT, BUILT IN, U19 DOUBLE UNIT   $0.00
NI TRIMKITEZ1 TRIM KIT, BUILT IN, U19 SINGLE UNIT   $0.00
NI 5304508296 ENERGY GUIDE   $0.00
NI 5304498525 SERVICE DATA SHEET   $3.65
NI 297165400 SHIELD,COMPRESSOR COMPARTMENT   $20.35
NI 216036601 SCREW,RWHD,8-32A X 0.500,GX-CA   $13.05
NI 216337701 SCREW,HWH,10-24 X 0.500,SWAGE   $13.80
NI 297048000 SCREW,ANCHOR,#8,WHITE   $12.35
*The price can change whitout warning
