Brand: Electrolux

Model: FFTR1425VW - REFRIGERATOR, TOP MOUNT

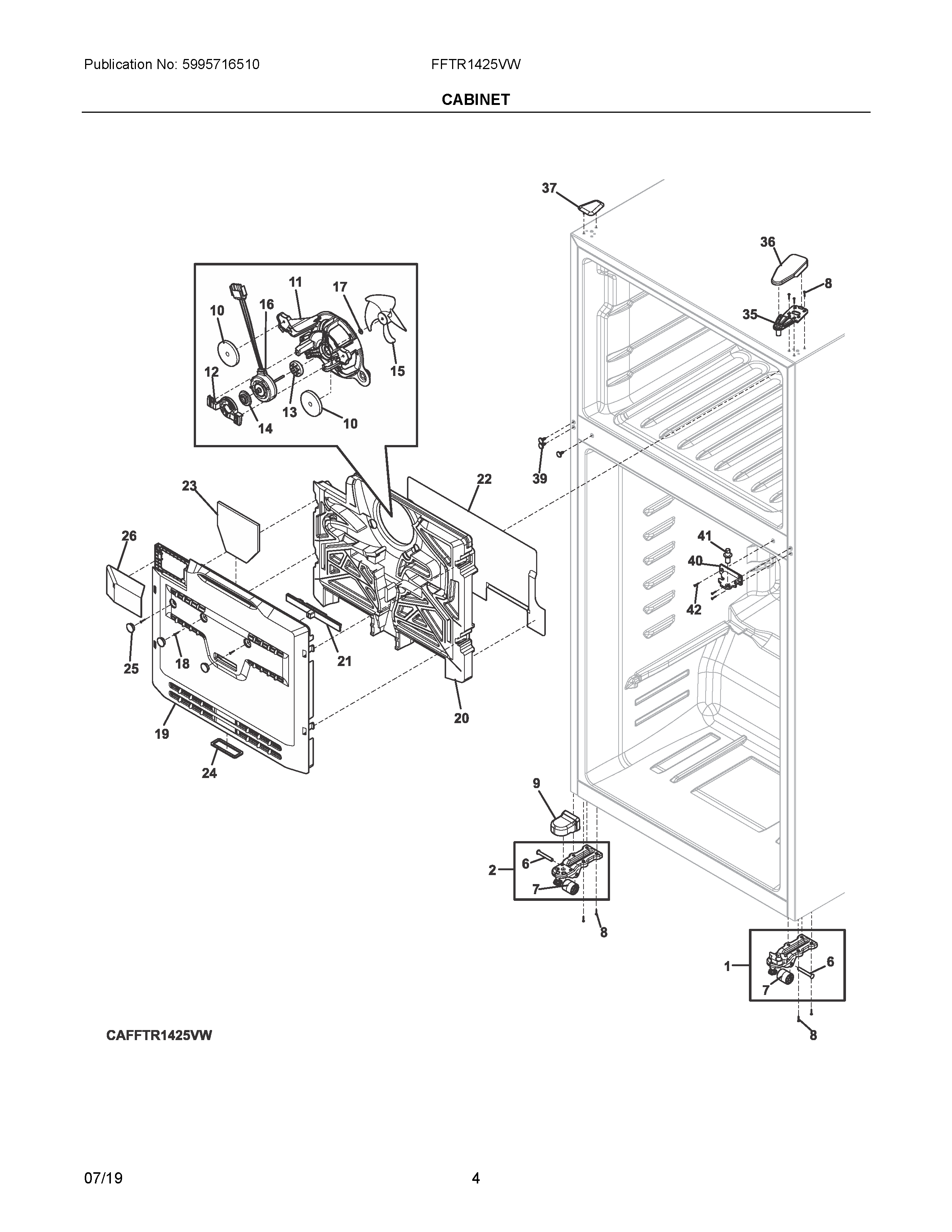

03 - CABINET

FFTR1425VW
Plan number Part Number Description Replacement Price
1 5304520463 BASE, HINGE, LOWER   $0.00
2 5304520464 STOPPER, AUTO CLOSER, HINGE   $0.00
3 5304519098 SCREW,TRILOB,M4 X 12   $2.90
4 5304520465 FOOT, LEVELING, CABINET FRONT   $0.00
5 5304520466 PIN, HINGE, LOWER   $0.00
6 811998301 SHAFT,CABINET ROLLER 811998302   $10.15
7 811998202 BASE ASSEMBLY,COMPRESSOR 807822703   $84.20
8 811949401 SCREW,TRILOB,M5 X 16   $5.10
9 5304520467 COVER,ANTI-TIP,WHITE   $10.15
10 5304520468 GROMMET,FAN SHROUD,FOAM   $10.15
11 811974401 SHROUD,EVAPORATOR FAN   $18.15
12 5304519177 CLIP,RETAINER   $8.00
13 5304520469 GROMMET,EVAPORATOR FAN   $10.15
14 5304519178 GROMMET,FAN MOUNTING   $7.25
15 811699602 FAN BLADE,EVAPORATOR 811699604   $3.95
16 809069207 MOTOR,FAN,FRZ EVAPORATOR   $141.50
NIA 5304520470 SEAL,MOTOR CONNECTOR,4 PIN   $13.80
17 5304519176 WASHER,SLINGER,NYLON   $2.90
18 811949503 SCREW,TRUSS,4.2 X 13   $2.90
19 5304520471 COVER,EVAPORATOR 5304529994   $16.70
20 5304520472 DUCT,EVAPORATOR,REAR 5304535848   $12.10
21 5304520473 SLIDE,AIR BAFFLE,BLUE,FREEZER   $8.70
22 5304520474 TAPE,AIR DUCT,ALUMINUM FOIL   $28.30
23 807305102 INSULATION,TAPE,EVAP COVER   $11.60
24 811950002 SEAL,DUCT,FOAM,LOWER   $5.10
25 811971601 COVER,SCREW HOLE,WHITE 5304524004   $5.10
26 5304520475 COVER,ELECTRICAL,/WATER INLET   $10.90
35 5304520476 HINGE,DOOR,UPPER   $35.55
36 5304520477 COVER,UPPER HINGE,WHITE 5304519784   $7.25
37 811996402 COVER,HINGE HOLES,WHITE,CABINE   $9.45
39 808432202 COVER,SCREW HOLE,WHITE,MULLION 5304522071   $5.80
40 5304520478 HINGE,DOOR,WHITE,CENTE(WHT) 5304519647   $29.05
41 5304520479 PIN,HINGE,CENTER   $13.05
42 5304520480 SCREW,TRILOB,M5 X 14   $2.90
1 5304520629 BRACKET,BOTTOM HINGE   $64.60
2 5304520630 BRACKET ASSY,BOTTOM,LEFT   $64.60
40 5304522614 HINGE,DOOR,ZINC PLTD,CENTER   $29.75
*The price can change whitout warning
