Brand: Electrolux
Model: FFTR1425VW - REFRIGERATOR, TOP MOUNT

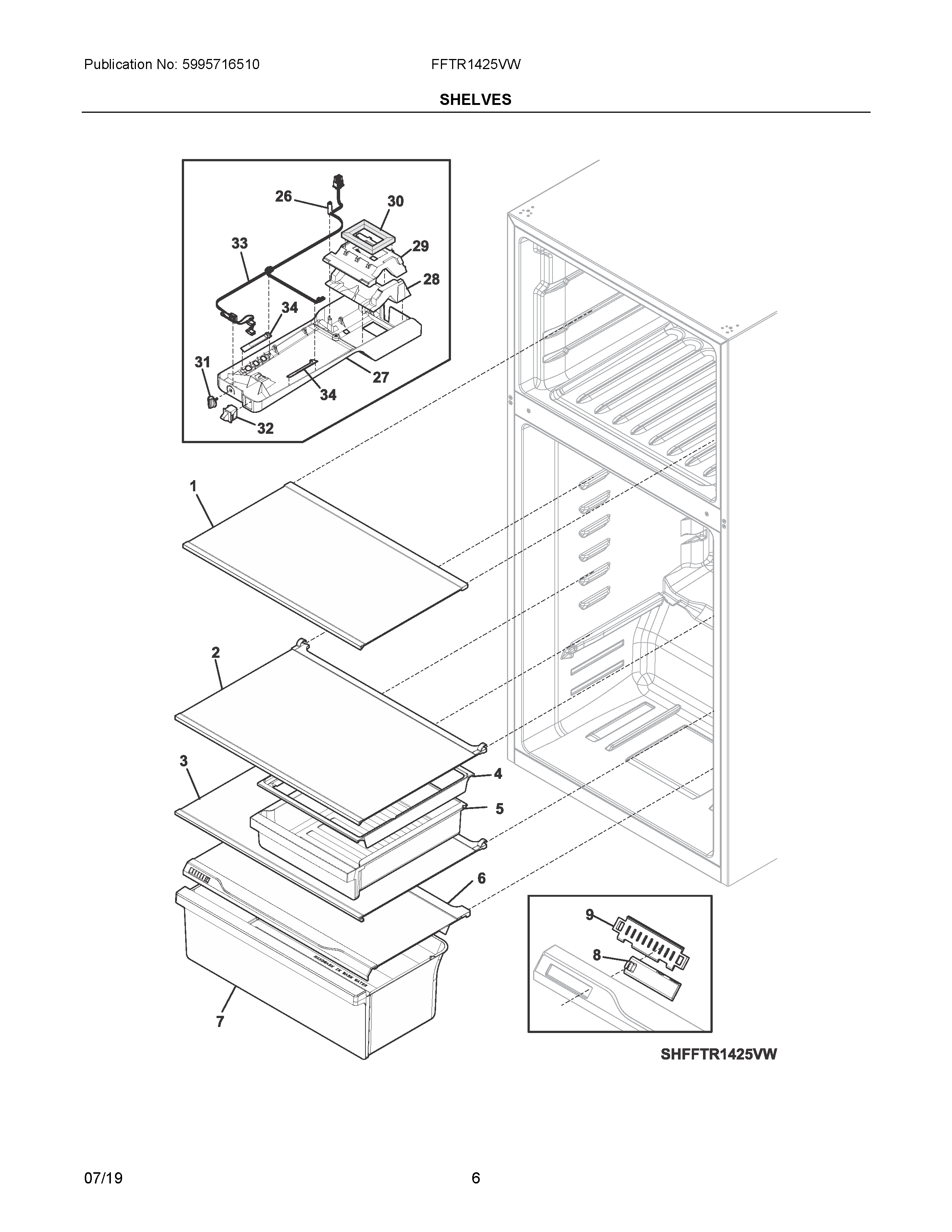

04 - SHELVES
- 01 - COVER SHEET
- 02 - DOORS
- 03 - CABINET
- 04 - SHELVES
- 05 - SYSTEM
- 06 - WIRING DIAGRAM
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 5304520481 | GLASS SHELF ASSY,FREEZER | $76.20 | |||
| 2 | 5304520482 | SHELF ASSEMBLY,GLASS,FRESH FOO | $81.30 | |||
| 3 | 5304520483 | SHELF ASSEMBLY,GLASS,FRESH FOO | $84.20 | |||
| 4 | 5304520484 | SUPPORT,DELI DRAWER | $32.65 | |||
| 5 | 5304520485 | DRAWER ASSY,DELI | $63.85 | |||
| 6 | 5304520486 | SHELF ASSEMBLY,GLASS,CRISPER C | $74.05 | |||
| 7 | 5304520487 | CRISPER DRAWER | $98.00 | |||
| 8 | 5304520488 | SLIDE,HUMID CONTROL,CRISPER | $9.45 | |||
| 9 | 5304520489 | FRAME,SLIDE CONTROL | $9.45 | |||
| 26 | 5304520497 | SENSOR, TEMPERATURE, FRESH FOOD | $0.00 | |||
| 27 | 5304520490 | CONTROL BOX | $46.45 | |||
| 28 | 5304520491 | DUCT,AIR FLOW,EPS,BOTTOM | $14.50 | |||
| 29 | 5304520492 | DUCT,AIR FLOW,EPS,TOP | $14.50 | |||
| 30 | 5304520493 | SEAL,AIR DUCT,TOP | $17.40 | |||
| 31 | 5304520494 | KNOB,CONTROL | 5304532562 | $1.35 | ||
| 32 | 5304520495 | SWITCH,DOOR/LIGHT,WHITE | $19.60 | |||
| 33 | 5304520496 | WIRING HARNESS,CONTROL BOX,W/P | $71.85 | |||
| 34 | 242196211 | LED LIGHT,PC BOARD | 5304525264 | $53.70 | ||
| NI | 811949503 | SCREW,TRUSS,4.2 X 13 | $2.90 | |||
| 26 | 5304520944 | SENSOR,TEMPERATURE | $19.60 |
*The price can change whitout warning
