Brand: Electrolux

Model: CFLE3900UW3 - LAUNDRY CENTER, WASHER/ELECTRIC DRYER

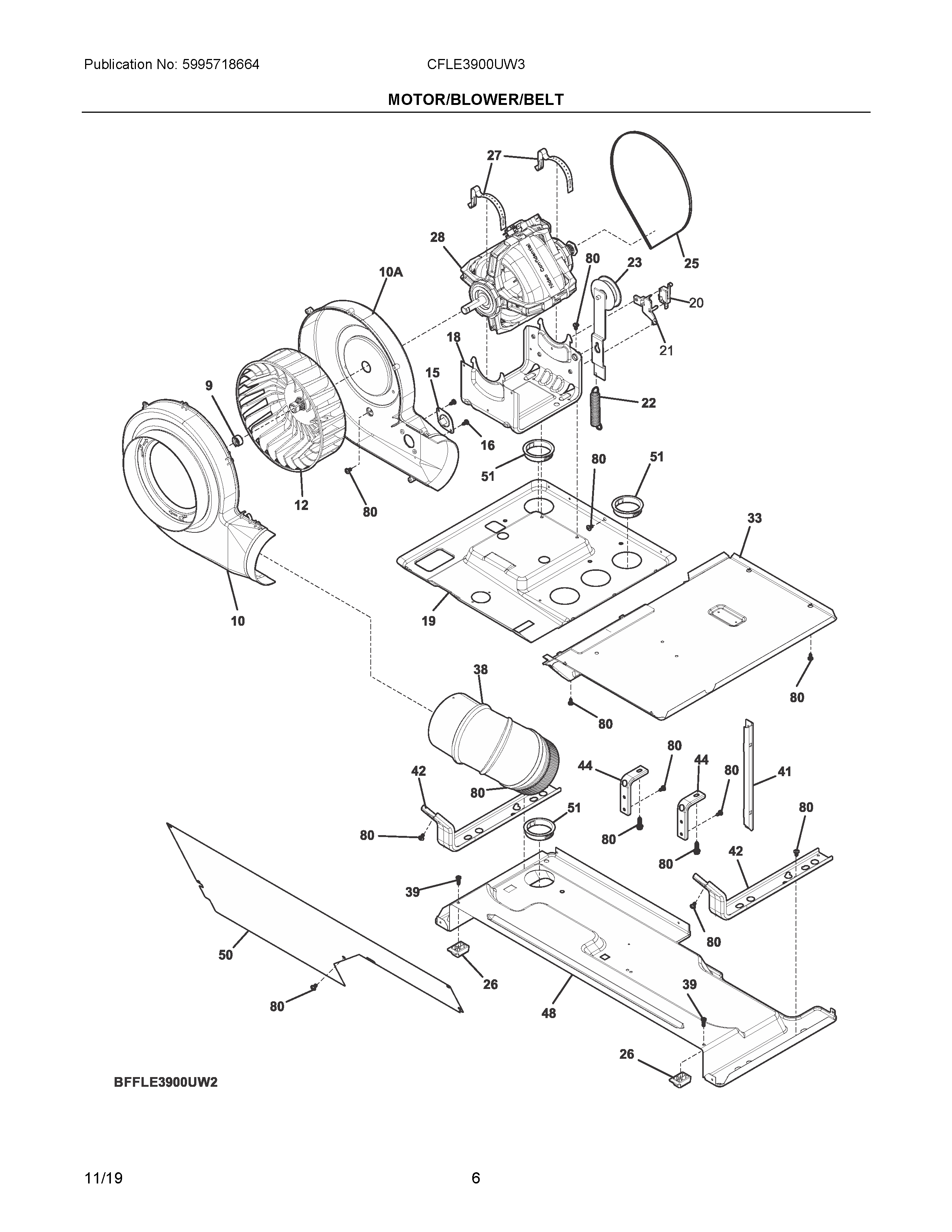

03 - MOTOR/BLOWER/BELT

CFLE3900UW3
Plan number Part Number Description Replacement Price
9 5304488479 CLAMP   $20.35
10 5304523176 HOUSING ASSEMBLY,BLOWER,FRONT   $73.30
10A 137551800 HOUSING,BLOWER,REAR   $110.30
NI 134402900 SCREW, PHILLIPS, 6-19 X 0.650 WG04A01694   $0.00
12 131476300 WHEEL   $63.85
15 134587700 THERMISTOR, CONTROL   $56.60
16 131243700 TAPPING SCREW - #8 .375   $2.20
18 131367100 MOTOR CRADLE ASMY 131367110   $70.40
19 137490900 PAN, UPPER L/C,DRYER, FORMED   $156.05
20 5304521496 LIMIT SWITCH,DRYER BELT   $22.50
21 5304521495 BRACKET,LIMIT SWITCH,DRYER BEL   $10.90
22 3205241 SPRING   $77.65
23 5304507499 IDLER WHEEL   $42.80
25 137292700 DRUM BELT 90" (SUB)   $21.80
26 137511300 BLOCK,SUPPORT   $17.40
27 134242400 CLAMP,MOTOR MOUNTING   $18.85
28 134196602 MOTOR,DRYER DRIVE,WITH PULLEY   $251.80
NIA 5304523159 WIRING HARNESS,MAIN,DRYER   $183.60
33 5304515828 BAFFLE,ASSEMBLY,W/FELT SEAL   $95.05
NIA 137212300 GASKET, 152 X 13 X 3 MM   $0.00
38 5304521383 ELBOW,EXHAUST DUCT   $46.45
39 131205100 SCREW   $14.50
41 131091300 BRACKET,SUPPORT, SIDE   $16.70
42 137304710 BRACKET,MARRIAGE, DRYER   $20.25
44 3204326 BRACKET   $44.25
48 137329110 LOWER PAN ASMY,LC 137455500   $187.25
50 5304488478 COVER,SUPPORT, LCD   $87.80
51 131453000 BUSHING - DRAIN HOSE   $10.90
80 131168200 SCREW   $14.50
*The price can change whitout warning
