Brand: Electrolux

Model: CFLE3900UW3 - LAUNDRY CENTER, WASHER/ELECTRIC DRYER

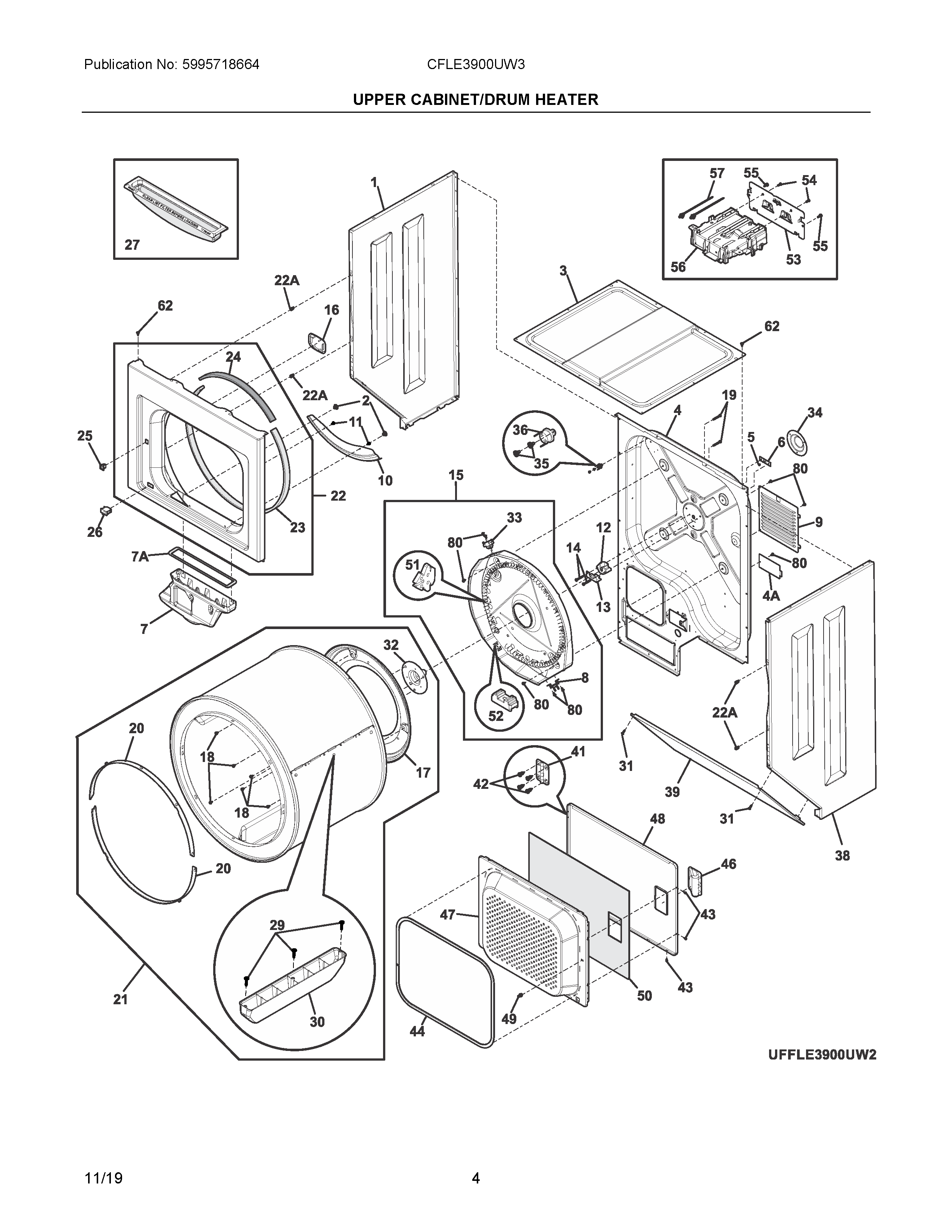

02 - UPPER CABINET/DRUM HEATER

CFLE3900UW3
Plan number Part Number Description Replacement Price
1 137510410 PANEL,LEFT SIDE,WHITE   $233.70
2 131362400 FASTENER   $0.00
3 131883301 PANEL-TOP WASHER   $279.40
4 5304523179 REAR PANEL,LC DRYER 5304500431   $294.65
4A 137389700 COVER,OPENING,TERMINAL BLOCK 137389701   $55.15
5 5303281019 BALL BEARING   $0.00
6 5303281020 CLIP,BALL,STEEL,FLAT NUT   $0.00
7 5304523177 DUCT ASSEMBLY,AIR,W/FOAM SEAL   $85.65
7A 131295200 SEAL,AIR DUCT   $16.70
9 5303309490 PANEL,MOTOR ACCESS,WASHED 5304488480   $73.30
10 137539100 SHIELD,AIR DUCT   $47.90
11 131477000 SCREW 131168200   $14.50
12 131825900 WESTINGHOUSE BEARING   $5.80
13 131724301 BRACKET   $13.05
14 131205400 SCREW   $13.05
15 137392702 HEATER ASM & HOUSING   $235.85
16 131243700 TAPPING SCREW - #8 .375   $2.20
16A 137576600 PLUG-LIGHT HOLE   $14.50
17 3204254 BAFFLE   $132.10
18 5304502598 SCREW,THREAD CUTTING,#10-32 X   $9.45
19 5304523188 SCREW,HEX WSHR HD UNC,12-24 X   $17.40
20 137513300 GLIDE DRUM   $37.00
21 5304517316 DRUM ASSEMBLY,DRYER,W/GLIDES-V   $333.95
22 5304517315 PANEL,FRONT WELD,WHITE,W/FELT   $239.50
22A 137362600 PIN,PANEL LOCATOR   $36.30
23 134134700 SEAL, FELT, LOWER 5303937183, WG02L06881     Call to order
24 134036400 SEAL.FELT.UPPER W/ADH 5303937182, WG04F01538   $27.60
25 131658800 DOOR LOCK   $63.85
26 134813663 DOOR SWITCH,WHITE   $56.60
NIA 5304505258 WIRING HARNESS,DOOR LOCK   $43.55
27 5304516871 LINT SCREEN   $32.50
29 131382300 SCREWS   $13.80
30 5304515811 VANE,DRYER,WHITE   $28.30
31 131202300 SCREW   $13.80
32 137088600 SHAFT 131777700   $95.05
33 3204267 THERMOSTAT   $111.05
34 5304506372 COVER PLATE,BEARING   $55.15
35 131892100 SCR. 6-20 X .230 PPH B PT   $10.15
36 134120900 HIGH LIMIT THERMOSTAT (L222F)   $18.15
38 137510510 PANEL,RIGHT SIDE,WHITE   $235.15
39 137546910 PANEL,ACCESS   $185.80
41 134222900 HINGE,DRYER DOOR   $0.00
42 134156200 SCREW, FLAT HEAD, 8-18AB X 0.44, QUAD DRIVE WG04F01507   $0.00
43 137361500 SCREW 8-18X0.711 COMBO   $8.00
44 137551901 DOOR GASKET   $39.20
46 131789400 DOOR HANDLE   $65.30
47 137365110 PANEL,INNER DOOR,WHITE   $235.15
48 137408403 PANEL,OUTER DOOR,WHITE   $198.85
49 5303207102 STRIKE, DOOR WG04A02866   $0.00
50 134535300 INSULATOR,HEAT SHIELD,OUTER DO   $0.00
51 131472100 PORCELAIN   $60.25
52 3202786 TERMINAL BLOCK   $66.05
53 5304515761 COVER,MAIN BOARD,EXTERNAL   $47.20
54 131205100 SCREW   $14.50
55 137511100 SCREW,HEX HEAD,10-24 X 0.500   $0.00
56 5304523186 BOARD,MAIN CONTROL,EWD18,W/HOU   $270.70
NIA 5304520336 WIRING HARNESS   $143.70
NIB 5304523159 WIRING HARNESS,MAIN,DRYER   $183.60
NIC 5304523160 WIRING HARNESS,MAIN,WASHER   $96.50
57 5304515894 CLIP,FIR TREE STYLE   $17.40
62 131258400 SCREW - VANE 131302800   $13.80
80 131168200 SCREW   $14.50
NI 134154100 SCREW 10-32X.375 COMB HWH,GRND   $13.80
*The price can change whitout warning
