Brand: Whirlpool
Model: KFDC558JIB00 - RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE, 48 INCH

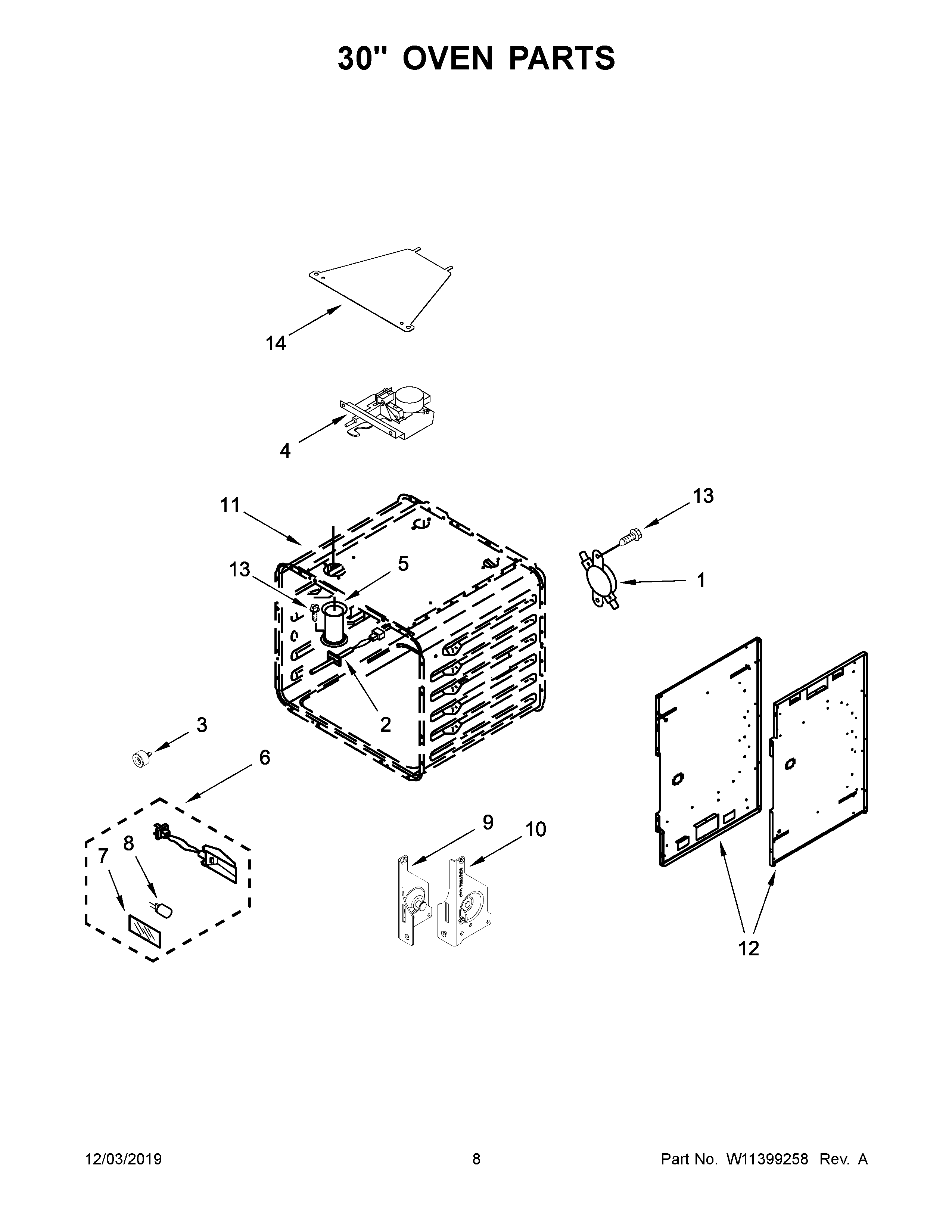

05 - 30" OVEN PARTS
- 01 - COVER SHEET
- 02 - BURNER BOX AND GRIDDLE PARTS
- 03 - COOKTOP, BURNER AND GRATE PARTS
- 04 - 48" CHASSIS PARTS
- 05 - 30" OVEN PARTS
- 06 - 18" OVEN PARTS
- 07 - VENTING PARTS
- 08 - 30" OVEN DOOR PARTS
- 09 - 18" OVEN DOOR PARTS
- 10 - 30" INTERNAL OVEN PARTS
- 11 - 18" INTERNAL OVEN PARTS
- 12 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 4449751 | T.O.D. SPST OVER TEMP | WP4449751 | $145.15 | ||
| 2 | W10622170 | SENSOR | W10859573 | $173.60 | ||
| 3 | W10351278 | BUMPER | WPW10351278 | $7.91 | ||
| 4 | W10830016 | LATCH-DOOR | W11029221 | $236.77 | ||
| 5 | W11290663 | TUBE-VENT | W11318343 | $78.90 | ||
| 6 | W11223932 | LIGHT-OVEN | W11233684 | $73.46 | ||
| 7 | W10169756 | LENS,LIGHT | $30.27 | |||
| 8 | W10169757 | BULB, 5W-12V HALOGEN - SERVICE | WPW10169757 | $30.87 | ||
| 9 | W11096294 | HINGE,RECEIVER | W11318331 | $49.70 | ||
| 10 | W11096293 | HINGE,RECEIVER | W11317948 | $49.70 | ||
| 11 | N/P | LINER, OVEN (NOT SERVICED) | $0.00 | |||
| 12 | W11102297 | PANEL-CBNT | W11320145 | $163.95 | ||
| 12A | W11102296 | PANEL-CBNT | W11320144 | $163.95 | ||
| 13 | 7101P426-60 | SCREW | WP90767 | $6.30 | ||
| 14 | W10160858 | COVER-LTCH | $57.99 | |||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W10282810 | INSULATION | W11661177 | $114.45 | ||
| NI | 3400968 | NUT | WP3400968 | $5.64 |
*The price can change whitout warning
