Brand: Whirlpool

Model: KFDC558JIB00 - RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE, 48 INCH

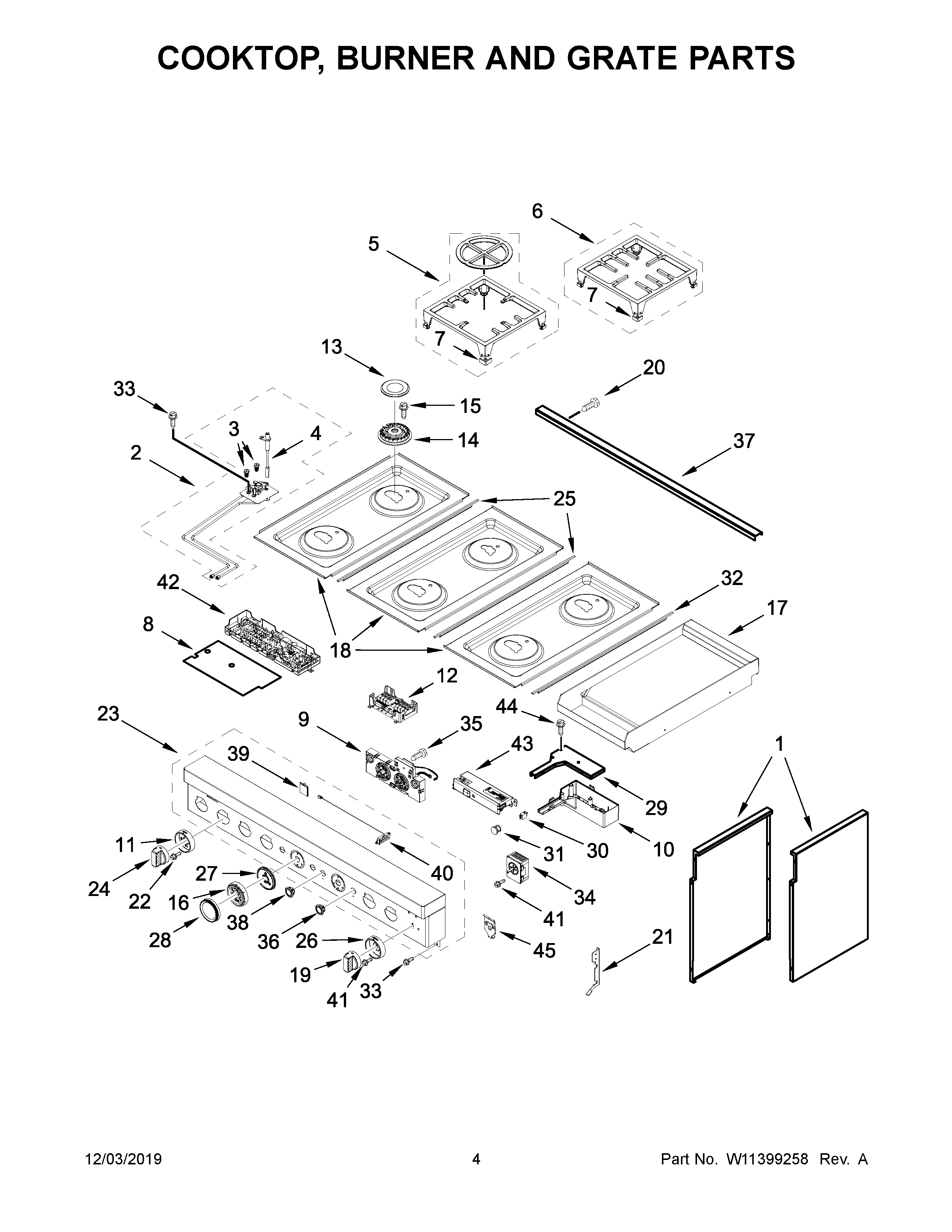

03 - COOKTOP, BURNER AND GRATE PARTS

KFDC558JIB00
Plan number Part Number Description Replacement Price
1 W11111429 SIDE-COMPT W11321067   $294.35
1A W11111428 SIDE-COMPT W11320596   $288.54
2 W10892793 HOLDER-ORF W11333305   $82.31
2A W10892492 HOLDER-ORF W11384764   $82.31
2B W11159461 HOLDER-ORF W11398670   $82.31
2C W10892808 HOLDER-ORF W11398674   $82.31
2D W10892505 HOLDER-ORF W11319743   $82.31
2E W10892446 HOLDER-ORF W11398676   $82.31
3 W10892422 SPUD-ORFCE W11643164   $64.89
3A W10892419 SPUD-ORFCE W11672510   $68.47
3B W10892435 SPUD-ORFCE W11661909   $68.47
3C W10892438 SPUD-ORFCE   $66.75
4 W11238757 IGNITOR-SURFACE W11573760   $15.82
4A W11114379 IGNITOR-SURF   $48.71
4B W10892340 IGNITOR-SURF W11628654   $37.35
5 W11291183 GRATE,BURNER W11380124   $138.85
6 W11291179 GRATE,BURNER W11380128   $138.85
7 W11042504 PAD-GRATE W11550692   $9.30
8 W11281269 INSULATOR W11320149   $91.11
9 W11219193 CONTROL BOARD W11400494   $459.82
10 W11205795 COVER-CNTL W11320411   $47.22
11 W10881642 BEZEL-KNOB W11380146   $44.13
11A W10883433 BEZEL-KNOB W11380145   $44.13
12 W10890116 CNTRL-ELEC W11317945   $380.70
13 W11121390 CAP-BURNER W11344538   $119.87
14 W10891746 BURNER HEAD W11344539   $96.26
14A W10891974 BURNER HEAD W11344742   $96.26
14B W10891978 BURNR-HEAD W11344746   $96.26
15 W11323261 SCREW W11643628   $11.19
15A W11323309 SCREW W11678580   $11.19
16 W11249667 KNOB W11567541   $83.08
17 N/P ASSEMBLY, GRIDDLE MODULE (PART NUMBER SHOWN ON BURNER BOX AND GRIDDLE PARTS PAGE)   $0.00
18 W11038235 COOKTOP W11344755   $126.15
18A W11038257 COOKTOP W11344757   $126.15
18B W11038243 COOKTOP W11392645   $385.70
19 W10912167 KNOB W11392643   $55.62
20 7101P338-60 SCREW W11233072   $12.16
21 W10130760 BRKT-MNTG   $57.97
21A W10130759 BRKT-MNTG   $57.97
22 W10919387 SCREW W11674763   $11.19
23 W10877951 PANL-CNTRL W11402036   $418.91
24 W10912166 KNOB W11380561   $55.62
24A W10883172 KNOB W11380562   $55.62
25 W10271524 TRIM-TOP   $169.81
26 W10886700 BEZEL-KNOB W11388057   $54.17
27 W10913810 BEZEL-KNOB W11548484   $40.19
28 W11249669 KNOB W11385692   $103.29
29 W11205794 COVER-CNTL W11320410   $47.22
30 W10116114 LIGHT-IND   $70.42
31 W10294500 LENS-LIGHT   $5.33
32 W10291193 TRIM-TOP   $109.02
33 7101P426-60 SCREW WP90767   $6.30
34 W11033497 SWITCH-INF W11318834   $248.09
35 3400814 SCREW WP3400814   $3.57
36 W11241510 BUTTON-PUSH   $34.20
37 W11156418 TRIM-TOP W11320157   $184.95
38 W11241511 BUTTN-PUSH   $32.54
39 W10896366 LIGHT-IND   $82.11
40 W11130078 ANTENNA W11318855   $165.55
41 W10674068 SCREW   $19.36
42 W11100281 CNTRL-ELEC W11398684   $380.70
43 W11110768 CONTROL BOARD W11234290   $135.77
44 7101P624-60 SCREW W10709795   $9.13
45 W11036559 CLIP W11318207   $9.59
*The price can change whitout warning
