Brand: Maytag
Model: MEDP576KW0 - LAUNDRY, RESIDENTIAL, ELECTRIC DRYER

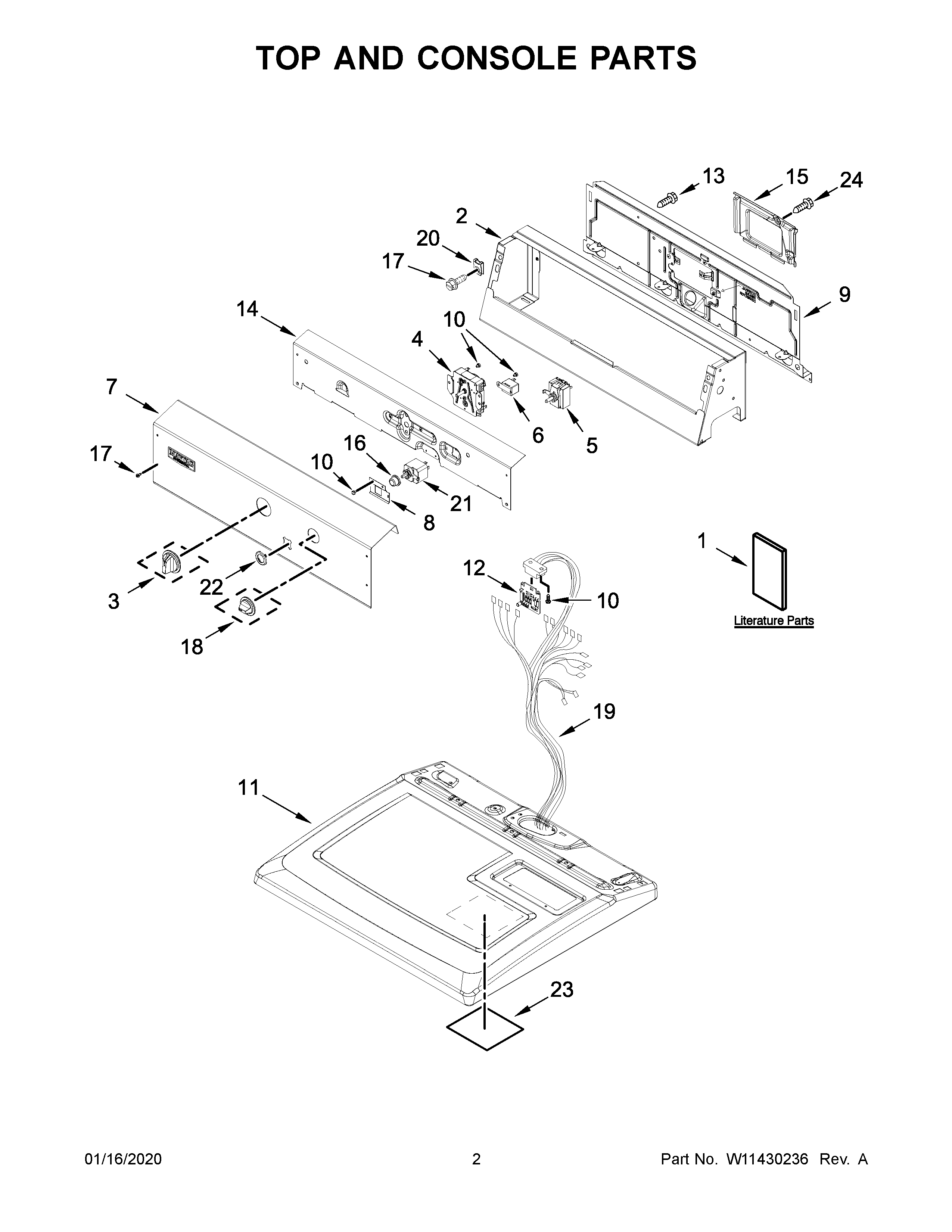

02 - TOP AND CONSOLE PARTS
- 01 - COVER SHEET
- 02 - TOP AND CONSOLE PARTS
- 03 - CABINET PARTS
- 04 - BULKHEAD PARTS
- 05 - DOOR PARTS
- 06 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11407405 | INSTALLATION INSTRUCTIONS | $0.00 | |||
| 1A | W11045671 | USE AND CARE GUIDE | $0.00 | |||
| 1B | W10758022 | WIRING DIAGRAM | $0.00 | |||
| 1C | W11045673 | QUICK START GUIDE | $0.00 | |||
| 2 | W11124005 | CONSOLE | $188.78 | |||
| 3 | W11103227 | KNOB | W11643382 | $28.42 | ||
| 4 | W10185992 | TIMER | WPW10185992 | $198.48 | ||
| 5 | 8578352 | SWITCH,TEMPERATURE | WP8578352 | $170.09 | ||
| 6 | 694419 | BUZZER | WP694419 | $103.57 | ||
| 7 | W10918902 | OVERLAY | W11158120 | $579.35 | ||
| 8 | W10831297 | BRACKET | $0.00 | |||
| 9 | W10863352 | PANEL-REAR | $186.51 | |||
| 10 | 8533971 | SCREW | WP90767 | $6.30 | ||
| 11 | W10772880 | TOP | $119.76 | |||
| 12 | W10476828 | CONTROL-DRY | WPW10476828 | $299.26 | ||
| 13 | 3390647 | SCREW | WP488729 | $6.39 | ||
| 14 | W10738304 | BRACKET | $58.44 | |||
| 15 | W10286180 | COVER-TERM | WPW10119283 | $99.48 | ||
| 16 | W11112209 | PUSHBUTTON | $44.77 | |||
| 17 | W10386302 | SCREW | WPW10131119 | $6.63 | ||
| 18 | W11103226 | KNOB | $55.85 | |||
| 19 | W10762533 | HARNS-WIRE | $193.79 | |||
| 20 | W10131123 | NUT | WPW10131123 | $5.09 | ||
| 22 | W10510149 | BEZEL | $22.88 | |||
| 23 | W10836097 | PANL-SOUND | W11668653 | $22.74 | ||
| 24 | 3390631 | SCREW | WP3390631 | $6.32 |
*The price can change whitout warning
