Brand: Maytag

Model: MEDP576KW0 - LAUNDRY, RESIDENTIAL, ELECTRIC DRYER

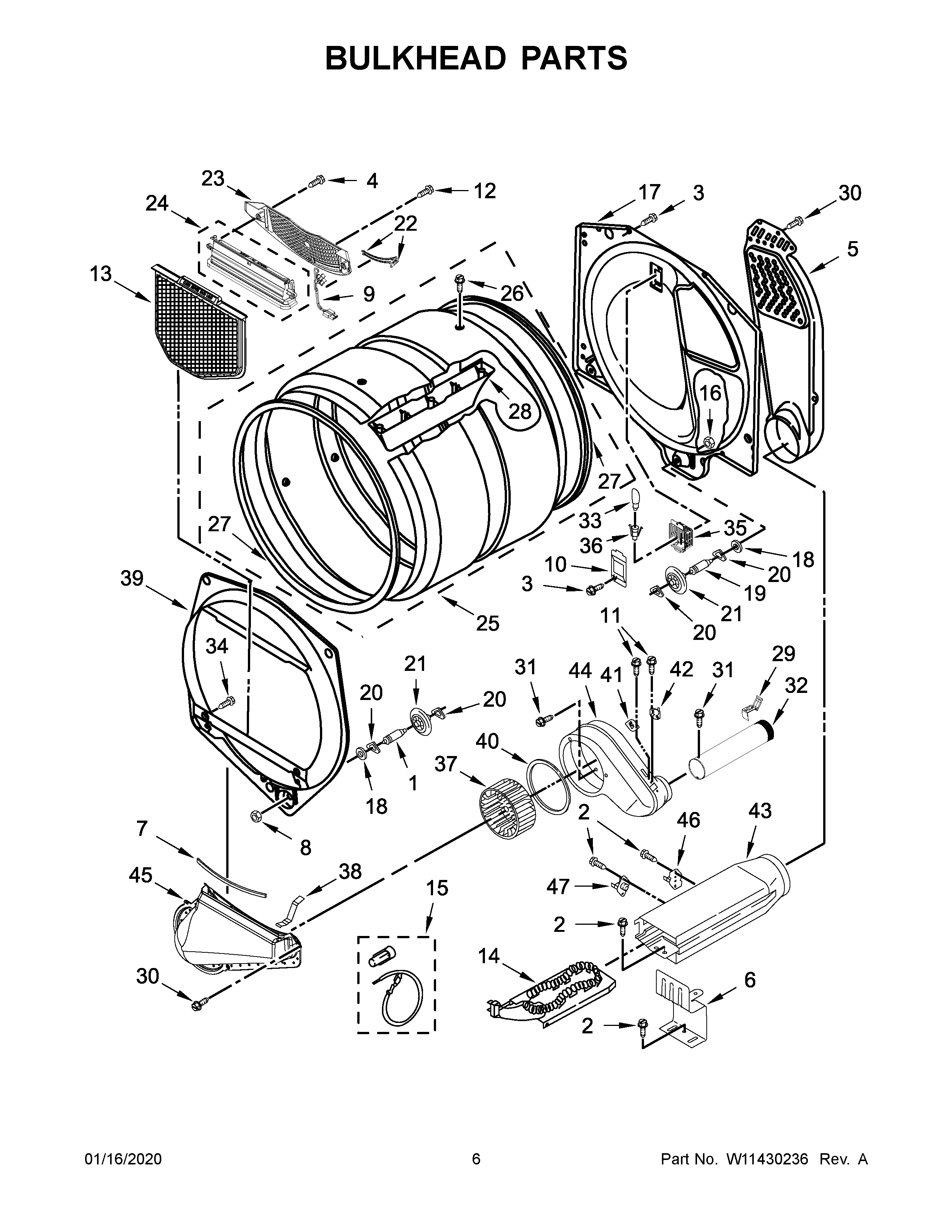

04 - BULKHEAD PARTS

MEDP576KW0
Plan number Part Number Description Replacement Price
1 W10359271 SHAFT-DRUM ROLLER DOTT RH WPW10359271   $68.80
2 90767 SCREW WP90767   $6.30
3 3390647 SCREW WP488729   $6.39
4 3357011 SCREW WP308685   $6.11
5 697354 DUCT-AIR WP3387911   $233.90
6 8066099 BRACKET   $16.86
7 697814 SEAL WP697813   $6.27
8 3934666 NUT WPW10080210   $6.32
9 W10298258 HARNESS,WIRE WPW10298258   $6.85
10 3402841 LENS W11226088   $26.83
11 693995 SCREW WP693995   $6.32
12 3387230 SCREW WP3387230   $6.31
13 W10049370 SCREEN W10120998   $70.25
14 3387747 DRYER ELEMENT 240V 5400W WP3387747   $122.53
15 279457 WIRE   $7.32
16 W10001120 NUT WPW10080190   $6.32
17 W11162455 BULKHEAD W11299301   $178.33
18 3387459 WASHER W11236646   $12.16
19 W10359272 SHAFT-DRUM ROLLER DOTT LH WPW10359272   $67.83
20 W10512946 RING WPW10512946   $9.51
21 W10314171 DRUM ROLLER WPW10314173   $23.37
22 3387223 ELECTRODE WP3387223   $4.44
23 W10692558 GRILL-OUT W11086603   $27.43
24 W10685669 HOUSING W11129408   $75.52
25 W10545923 DRUM   $352.77
26 W10219342 SCREW W10853898   $6.95
27 W10521118 SEAL 280114   $60.30
28 697693 BAFFLE WPW10113136   $132.06
29 8572105 CLIP W11684573   $5.88
30 8533971 SCREW WP90767   $6.30
31 489463 SCREW WP489463   $5.42
32 8066224 EXHAUST PIPE 279936   $114.34
33 3406124 LAMP 10W 120V WP22002263   $11.69
34 695240 SCREW WP488729   $6.39
35 8578825 BRACKET   $15.64
36 W10214261 SOCKET ASSY, LIGHT NS W11222979   $91.78
37 W10349492 BLOWER WHEEL - SPD INCR WPW10349492   $115.92
38 W10345456 CLIP WP8066208   $5.78
39 697557 BULKHEAD WP697557   $152.11
40 697770 SEAL WP697770   $6.27
41 3392519 THERMAL FUSE 3/16" TERM WP3392519   $19.50
42 8318268 THERMOSTAT-FIX WP8318268   $105.38
43 W10608837 HEATER-BOX-WELD ASSY W10802681   $142.80
44 8544362 HOUSING W10888146   $75.89
45 8066168 LINT DUCT ASM - SERVICE WPW10128606   $153.03
46 279973 THERMAL CUT-OFF L295   $65.33
47 3391914 THERMOSTAT-FIX WP3391914   $153.50
*The price can change whitout warning
