Brand: Maytag

Model: MGD6230HW0 - LAUNDRY, RESIDENTIAL, GAS DRYER

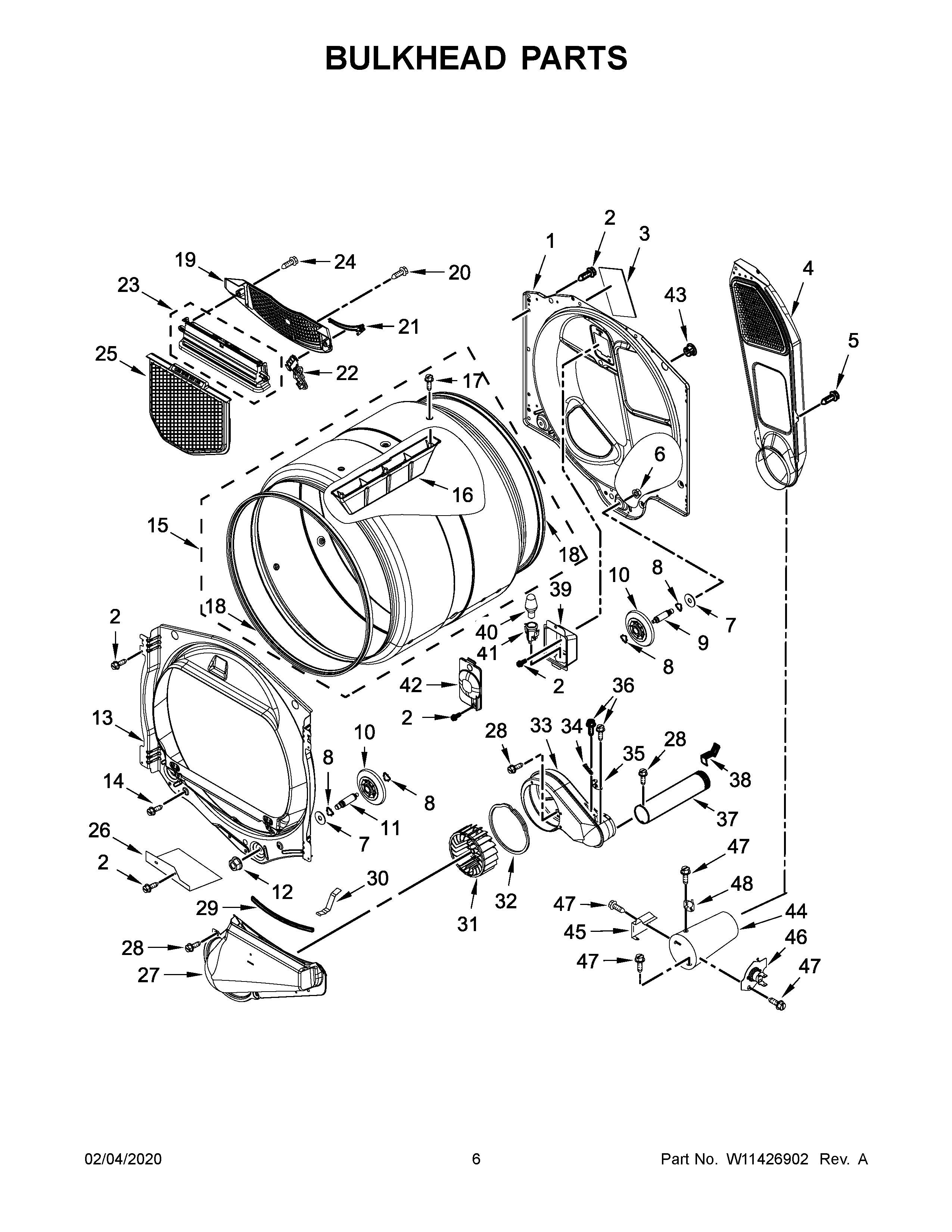

04 - BULKHEAD PARTS

MGD6230HW0
Plan number Part Number Description Replacement Price
1 W11162455 BULKHEAD W11299301   $178.33
2 3390647 SCREW WP488729   $6.39
3 W10504381 PAD W11409002   $17.63
4 W10293765 DUCT-AIR WPW10293765   $257.52
5 8533971 SCREW WP90767   $6.30
6 W10001120 NUT WPW10080190   $6.32
7 3387459 WASHER W11236646   $12.16
8 W10512946 RING WPW10512946   $9.51
9 W10359272 SHAFT-DRUM ROLLER DOTT LH WPW10359272   $67.83
10 W10314171 DRUM ROLLER WPW10314173   $23.37
11 W10359271 SHAFT-DRUM ROLLER DOTT RH WPW10359271   $68.80
12 3934666 NUT WPW10080210   $6.32
13 W11162467 BULKHEAD   $143.33
14 3357011 SCREW WP308685   $6.11
15 W10545923 DRUM   $352.77
16 697693 BAFFLE WPW10113136   $132.06
17 W10219342 SCREW W10853898   $6.95
18 W10521118 SEAL 280114   $60.30
19 W10692558 GRILL-OUT W11086603   $27.43
20 695240 SCREW WP488729   $6.39
21 3387223 ELECTRODE WP3387223   $4.44
22 W10298258 HARNESS,WIRE WPW10298258   $6.85
23 W10685669 HOUSING W11129408   $75.52
24 3387230 SCREW WP3387230   $6.31
25 W10596627 SCREEN W10120998   $70.25
26 W11257251 SHIELD   $53.16
27 8066168 LINT DUCT ASM - SERVICE WPW10128606   $153.03
28 489463 SCREW WP489463   $5.42
29 697814 SEAL WP697813   $6.27
30 W10345456 CLIP WP8066208   $5.78
31 697772 WHEEL WP697772   $67.95
32 W10841728 SEAL W11596046   $39.87
33 8544362 HOUSING W10888146   $75.89
34 W10693363 THERMAL FUSE W10909685   $86.13
35 8577274 THERMISTOR WP8577274   $43.47
36 693995 SCREW WP693995   $6.32
37 8066224 EXHAUST PIPE 279936   $114.34
38 8572105 CLIP W11684573   $5.88
39 3977373 BRACKET   $77.60
40 3406124 LAMP 10W 120V WP22002263   $11.69
41 W10214261 SOCKET ASSY, LIGHT NS W11222979   $91.78
42 3402841 LENS W11226088   $26.83
43 8529007 PLUG   $60.58
44 8573824 FUNNEL WP8573824   $136.26
45 338906 FLAME SENSOR WP338906   $49.38
46 8573713 THERMAL CUT-OFF WP8573713   $70.60
47 90767 SCREW WP90767   $6.30
48 3391912 THERMOSTAT WP3391912   $104.48
*The price can change whitout warning
