Brand: Maytag
Model: MGD6230HW0 - LAUNDRY, RESIDENTIAL, GAS DRYER

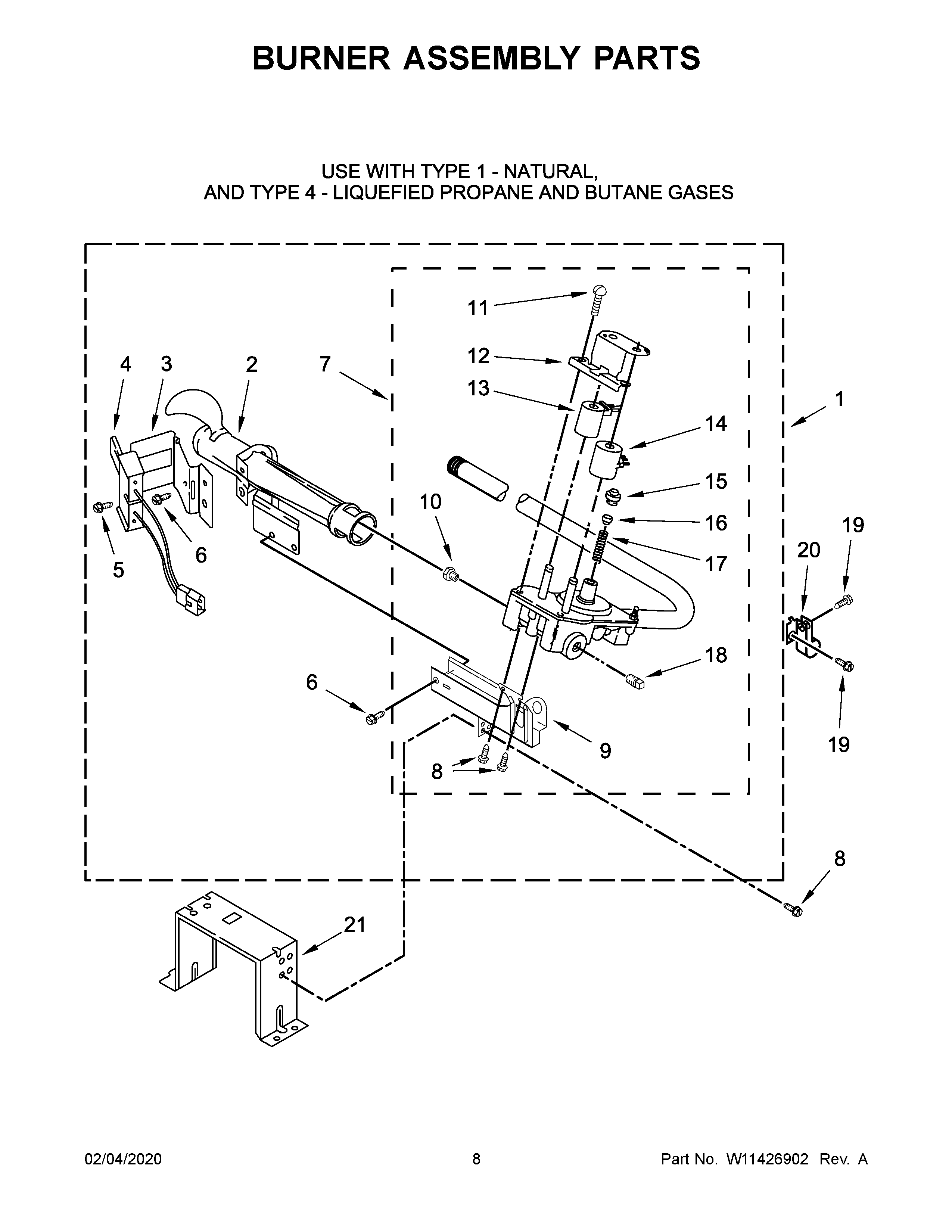

05 - BURNER ASSEMBLY PARTS
- 01 - COVER SHEET
- 02 - TOP AND CONSOLE PARTS
- 03 - CABINET PARTS
- 04 - BULKHEAD PARTS
- 05 - BURNER ASSEMBLY PARTS
- 06 - DOOR PARTS
- 07 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 8576353 | BURNER,GAS | 280119 | $341.79 | ||
| 2 | 688617 | BURNER | WP693140 | $145.94 | ||
| 3 | 694298 | BRACKET | WP694298 | $17.08 | ||
| 4 | 686590 | FLAT DRYER IGNITOR KIT | 279311, WG02A01950 | $57.65 | ||
| 5 | W10366705 | SCREW | WPW10366705 | $5.09 | ||
| 6 | 343641 | SCREW | WP681414 | $5.80 | ||
| 7 | W10118312 | VALVE-GAS | WPW10118347 | $325.62 | ||
| 8 | 3387057 | SCREW | WP693995 | $6.32 | ||
| 9 | 3389871 | BRACKET | $61.36 | |||
| 10 | 15418 | ORIFICE | WP15418 | $31.18 | ||
| 10A | 15422 | MOTOR 208/230V.29A 9W 1550 CCW | R5422 | $0.00 | ||
| 10B | 234867 | ORIFICE,GAS | WP229742 | $32.04 | ||
| 11 | 694421 | SCREW | $10.48 | |||
| 12 | 694538 | BRACKET | $60.51 | |||
| 13 | 694540 | "M" GAS DRYER COIL KIT | 279834 | $30.52 | ||
| 14 | 694539 | COIL-VALVE | $30.52 | |||
| 15 | 694424 | LIMITER | WP694424 | $33.46 | ||
| 16 | 694423 | REGULATOR | WP694423 | $7.03 | ||
| 17 | 694422 | SPRING | WP694422 | $23.55 | ||
| 18 | 239822 | PLUG | W10295523 | $20.08 | ||
| 19 | 3390647 | SCREW | WP488729 | $6.39 | ||
| 20 | 3387561 | CLAMP | $18.06 | |||
| 21 | 3389889 | BRACKET | 3389888 | $74.66 | ||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | 8576846 | CONVERSION KIT (TYPE 1 TO TYPE 4 LPG) | W10606694A, W11581317 | Call to order |
*The price can change whitout warning
