Brand: Electrolux
Model: FPBC2278UF7 - REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPENSER

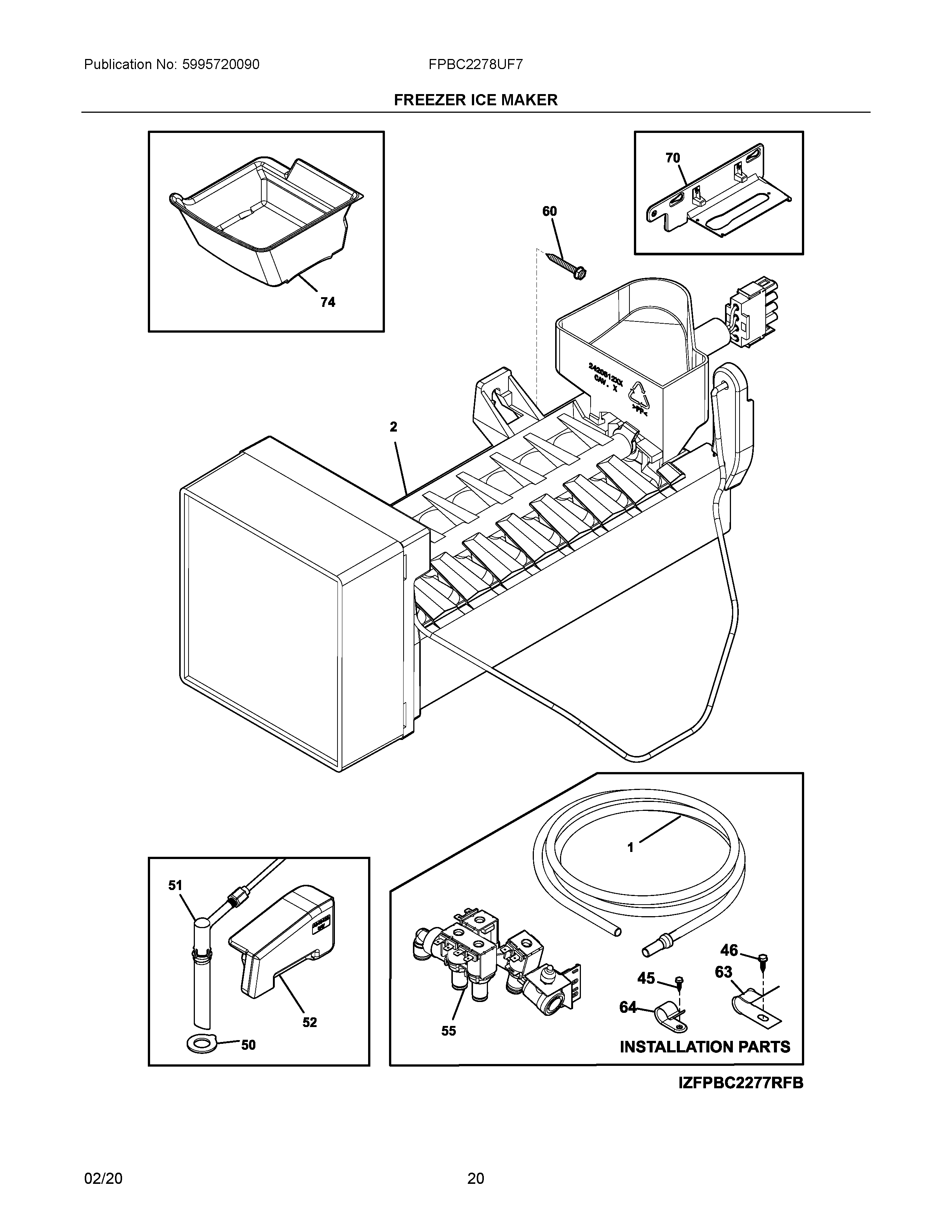

10 - FREEZER ICE MAKER
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 218976434 | TUBE-WATER INLET,INLET VALVE | 218976436 | $8.70 | ||
| NIA | 241964707 | WATER TUBE,1/4-36" | $18.85 | |||
| NIB | 241965910 | TUBE-WATER,5/16-67",NATURAL | $42.80 | |||
| NIC | 242200102 | CLIP,TUBING,90 DEG ELBOW | $10.90 | |||
| NID | 242220119 | WATER TUBE,.75 X 97.5,NATURAL | $31.20 | |||
| NIE | 242220204 | TUBE,WATER INLET | $37.00 | |||
| 2 | 241798233 | ICE MAKER | $245.30 | |||
| 45 | 5304455650 | SCREW | $14.50 | |||
| 46 | 5304453923 | SCREW, | 5303307980 | $14.50 | ||
| 50 | 241512813 | SEAL,DOUGHNUT | $26.15 | |||
| 51 | 242169404 | WATER TUBE KIT,VALVE | 5303918602 | $76.95 | ||
| 52 | 5304508046 | INSULATION,I/M FILL TUBE | $13.80 | |||
| 55 | 242253002 | VALVE,WATER QUAD SOLENOID | $206.85 | |||
| NIA | 240363602 | SCREW-SHOULDER,#12-11,HEX HD | $13.05 | |||
| 60 | 218362501 | SCREW,HEX WASHER HEAD,8-18AB X | $12.35 | |||
| 63 | 5304453921 | CLAMP | 5304455846 | $10.90 | ||
| 64 | 240396801 | CLAMP TUBE | $19.60 | |||
| 70 | 242053001 | BRACKET-ICE MAKER | $52.25 | |||
| 74 | 5304504278 | CONTAINER-ICE | 5304504660 | $102.35 | ||
| NI | 242103001 | CONNCETOR-WATER,STRAIGHT | 241806601 | $69.65 |
*The price can change whitout warning
