Brand: Electrolux

Model: FPBC2278UF7 - REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPENSER

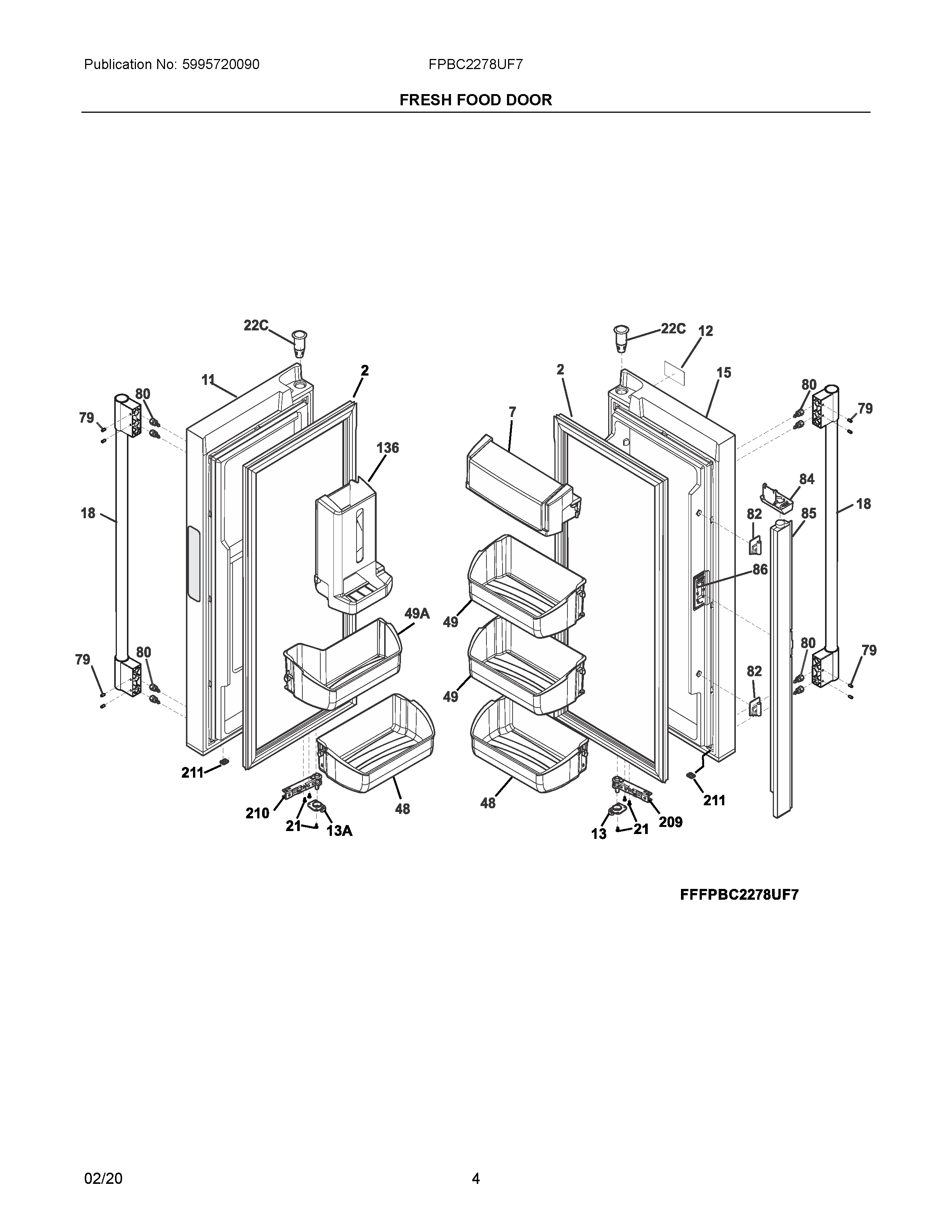

03 - FRESH FOOD DOOR

FPBC2278UF7
Plan number Part Number Description Replacement Price
2 241778307 GASKET, DOOR REFR, GREY MAGNET   $200.30
7 241895808 DAIRY COMPARTMENT,ASSEMBLY,COM   $72.60
11 242185674 DOOR-REFRIG.LH,STAINLESS   $600.05
NIA 242040806 HARNESS-WIRING,DOOR   $43.55
12 809108701 NAMEPLATE 809108704   $20.90
13 5304508039 DOOR STOP,ASSEMBLY,RH,W/BUSHIN   $18.85
NIA 241953901 SCREW,CONTROL MTG 5304453707   $15.25
13A 5304508038 DOOR STOP,ASSEMBLY,LH,W/BUSHIN   $18.85
15 242185672 DOOR-REFR.,STAINLESS,RH   $412.60
18 5304501174 HANDLE ASSEMBLY, STAINLESS, W/SET SCREWS 5304536767   $0.00
21 241953902 SCREW 8 18 X .380   $17.40
22C 241760401 BEARING,HINGE ,TOP   $19.60
48 5304519468 BIN-DOOR,LOWER,GALLON   $59.50
49 242011504 BIN,DOOR,GALLON 242079701   $108.85
NIA 5304517889 LINER, DOOR BIN, GALLON   $62.40
49A 242071304 BIN-DOOR,2-LITER 242071301   $98.00
NIAA 242012002 LINER-DOOR BIN,2-LITER   $85.65
79 218755407 SCREW-SET 218755402   $6.55
NIA 5304508270 WRENCH,ALLEN,SET SCREW   $18.15
80 218755504 SCREW-SHOULDER   $13.80
82 241779401 HINGE,MULLION   $21.05
84 808274201 GUIDE WALL   $34.85
NIA 5304455650 SCREW   $14.50
NIB 5304508776 LOCK WASHER,EXTERNAL TOOTH,#8   $0.75
85 241778911 FRONT-MULLION FLIPPER, NCS5501   $111.05
NIA 242015001 SCREW 10 8 19 X 1/2   $16.70
NIB 242068601 BUMPER,RH DOOR   $13.80
NIC 242064001 SCREW,IND HEX WSHR HD,8-32 X 240451503   $0.00
NID 5304520993 HARNESS-MULLION,FLIPPER   $39.20
86 241779802 HINGE-MULLION,CENTER,FLIPPER   $0.00
136 242071501 DISPENSER-CAN,WHITE   $169.80
209 5304508014 CLOSER ASSY,DOOR,RH,MECHANISM   $112.20
210 5304508015 LH DOOR CLOSER W/O INNER WASHR 5304526202   $92.15
211 5304508077 BUMPER,DOOR,BOTTOM   $11.60
NI 240451503 SCREW,IND HEX WSHR HD,8-32 X   $0.00
NI 5304501175 HARNESS,WIRING,DISPENSER,TO WA   $39.20
85 242036309 S/A-MULLION FLIPPER, GREY   $206.10
*The price can change whitout warning
