Brand: Whirlpool
Model: UMV1160CS9 - MICROWAVE HOOD, 1.6 CUBIC FOOT

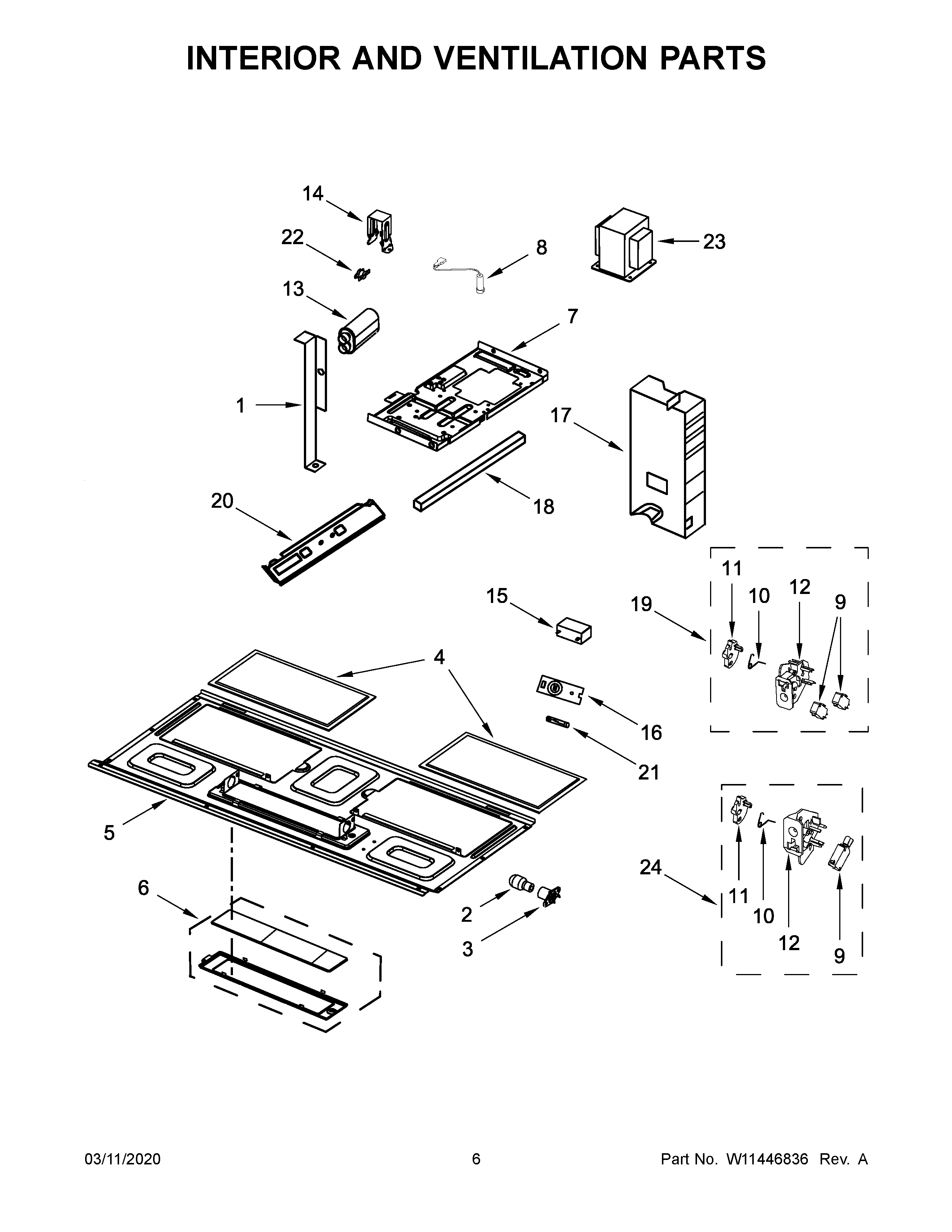

04 - INTERIOR AND VENTILATION PARTS
- 01 - COVER SHEET
- 02 - CONTROL PANEL PARTS
- 03 - DOOR PARTS
- 04 - INTERIOR AND VENTILATION PARTS
- 05 - AIR FLOW PARTS
- 06 - TURNTABLE PARTS
- 07 - CABINET AND INSTALLATION PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10313275 | BRKT-SUPPT | $25.38 | |||
| 2 | 8206232 | MICROWAVE BULB 40W 120V | 8206232A | $6.99 | ||
| 3 | W10210871 | HOUSNG-LMP | $4.73 | |||
| 4 | W10208631 | FILTER | W10208631A | $30.65 | ||
| 5 | W10245196 | BASE | $205.59 | |||
| 6 | W10240330 | LAMP COVER | $5.90 | |||
| 7 | W10269456 | BASE | $65.59 | |||
| 8 | W11222648 | DIODE | W11256462 | $26.37 | ||
| 9 | N/P | SWITCHES, INTERLOCK (NOT SERVICED, ORDER INTERLOCK ASSEMBLIES) | $0.00 | |||
| 10 | W10156812 | SPRING | $9.90 | |||
| 11 | W10156811 | CAM-PLATE | W10562613 | $15.78 | ||
| 12 | 8206419 | INTERLOCK | WP8206419 | $23.21 | ||
| 12A | W10156813 | INTERLOCK | WPW10156813 | $6.79 | ||
| 13 | W10343300 | CAPACTR-MG | W10850446 | $144.75 | ||
| 14 | W11265233 | BRKT-CPCTR | $57.76 | |||
| 15 | W10210855 | CAPACITOR,DM | W11405832 | $21.28 | ||
| 16 | W10163422 | THERMISTOR | $138.85 | |||
| 17 | W11282097 | COVER-SIDE | W11302941 | $65.03 | ||
| 18 | W10313276 | CUSHION | W11523261 | $17.63 | ||
| 19 | W11433682 | UPPER INTERLOCK | W11551558 | $26.33 | ||
| 20 | W10904020 | BASE | $104.01 | |||
| 21 | W10138793 | THERMAL FUSE 20A | W11707984 | $37.69 | ||
| 22 | W10269232 | THERMOSTAT | $57.39 | |||
| 23 | W10754523 | TRANSFORMER | W10836753 | $256.43 | ||
| 24 | W11433683 | LOWER INTERLOCK | W11551761 | $26.33 |
*The price can change whitout warning
