Brand: Whirlpool
Model: UMV1160CS9 - MICROWAVE HOOD, 1.6 CUBIC FOOT

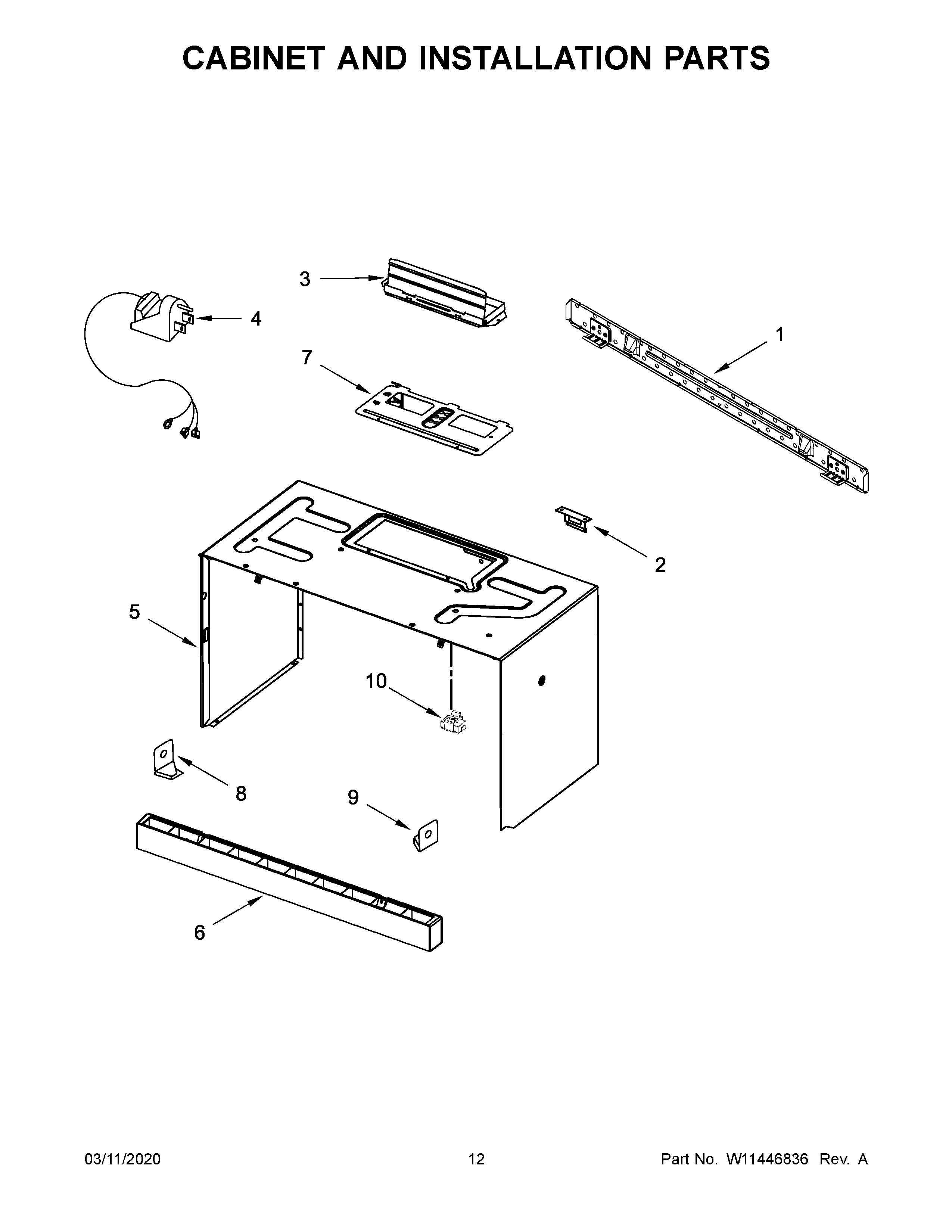

07 - CABINET AND INSTALLATION PARTS
- 01 - COVER SHEET
- 02 - CONTROL PANEL PARTS
- 03 - DOOR PARTS
- 04 - INTERIOR AND VENTILATION PARTS
- 05 - AIR FLOW PARTS
- 06 - TURNTABLE PARTS
- 07 - CABINET AND INSTALLATION PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11025649 | PLATE-MOUNTING | $13.29 | |||
| 2 | 8206385 | CLIP-WIRE | $29.59 | |||
| 3 | W10748710 | DAMPER | W10843943 | $74.61 | ||
| 4 | W10654511 | POWER CORD | W10708076 | $10.67 | ||
| 5 | W11206243 | WRAPER-CAB | W11256458 | $0.00 | ||
| 6 | W11249315 | GRILL-VENT | $82.68 | |||
| 7 | W10625423 | COVER, FAN MOTOR | $0.00 | |||
| 8 | W10703285 | BRACKET | W10830163 | $11.42 | ||
| 9 | W10703283 | BRACKET | W10810989 | $7.62 | ||
| 10 | W11122643 | NUT | $12.19 | |||
| NI | W10821385 | INSTALLATION KIT | $76.51 | |||
| NI | W10190020 | MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH) | $0.00 | |||
| NI | W10190018 | MOUNTING TEMPLATE | $6.85 | |||
| NI | 8169704 | SCREW | WP8169704 | $8.37 | ||
| NI | W11350914 | HARNS-WIRE | $53.23 | |||
| NI | W11301790 | HARNS-WIRE | $113.26 | |||
| NI | W10539840 | HARNS-WIRE | $18.40 |
*The price can change whitout warning
