Brand: Whirlpool
Model: KDFE104HPS1 - DISHWASHER, UNDERCOUNTER

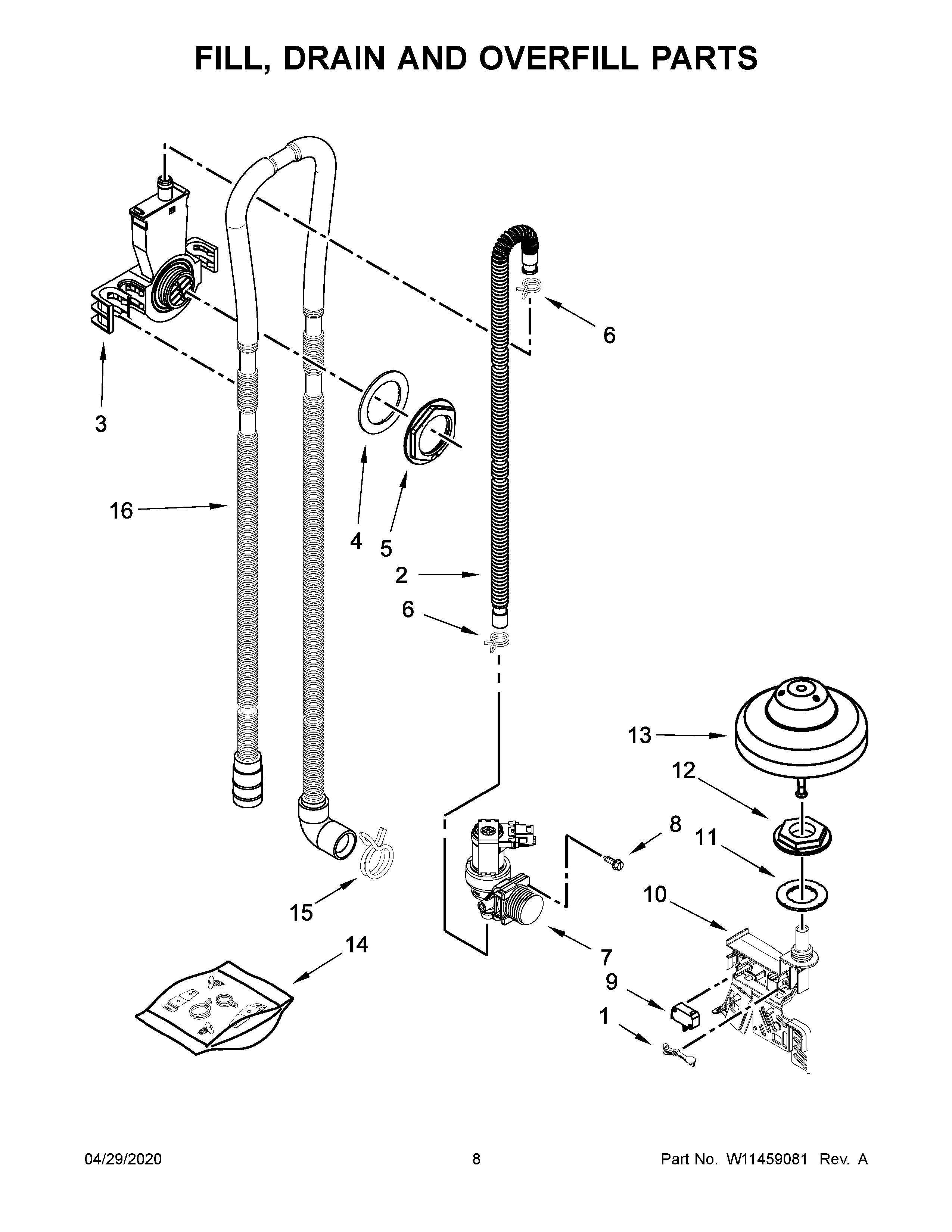

05 - FILL, DRAIN AND OVERFILL PARTS
- 01 - COVER SHEET
- 02 - DOOR PANEL PARTS
- 03 - CONTROL PANEL AND LATCH PARTS
- 04 - INNER DOOR PARTS
- 05 - FILL, DRAIN AND OVERFILL PARTS
- 06 - TUB AND FRAME PARTS
- 07 - PUMP, WASHARM AND MOTOR PARTS
- 08 - UPPER WASH AND RINSE PARTS
- 09 - UPPER RACK AND TRACK PARTS
- 10 - LOWER RACK PARTS
- 11 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10195037 | ACTUAOR ARM - OVERFILLE PROT | WPW10195037 | $8.71 | ||
| 2 | W10769066 | HOSE-INLET | W10878507 | $78.19 | ||
| 3 | W10195536 | INLET,WATER VALVE | WPW10195536 | $97.64 | ||
| 4 | 8531323 | GASKET | WP8531323 | $32.62 | ||
| 5 | W10213825 | NUT - WATER INLET,GREY NEPTUNE | WPW10213825 | $7.03 | ||
| 6 | 371505 | CLAMP | WP596669 | $6.27 | ||
| 7 | W11130744 | VALVE,WATER INLET | W11175771 | $83.43 | ||
| 8 | 3390631 | SCREW | WP3390631 | $6.32 | ||
| 9 | W10734532 | SWITCH PROTECTOR | WPW10195039 | $59.82 | ||
| 10 | W10647205 | HOUSING - OVERFILL PROTECTION | W10873429 | $27.04 | ||
| 11 | 8531743 | GASKET-OVERFILLE CONTROL | WP8531743 | $34.76 | ||
| 12 | W10195038 | NUT | WPW10195038 | $6.28 | ||
| 13 | W10195036 | FLOAT | WPW10195036 | $67.17 | ||
| 14 | W10292152 | BAG ASM (LOOSE PARTS) | WPW10292152 | $43.84 | ||
| 15 | 370445 | CLAMP | WP285655 | $5.88 | ||
| 16 | W10545278 | HOSE - DRAIN LOOP, SS, ATL | WPW10545278 | $64.70 |
*The price can change whitout warning
