Brand: Whirlpool
Model: KDFE104HPS1 - DISHWASHER, UNDERCOUNTER

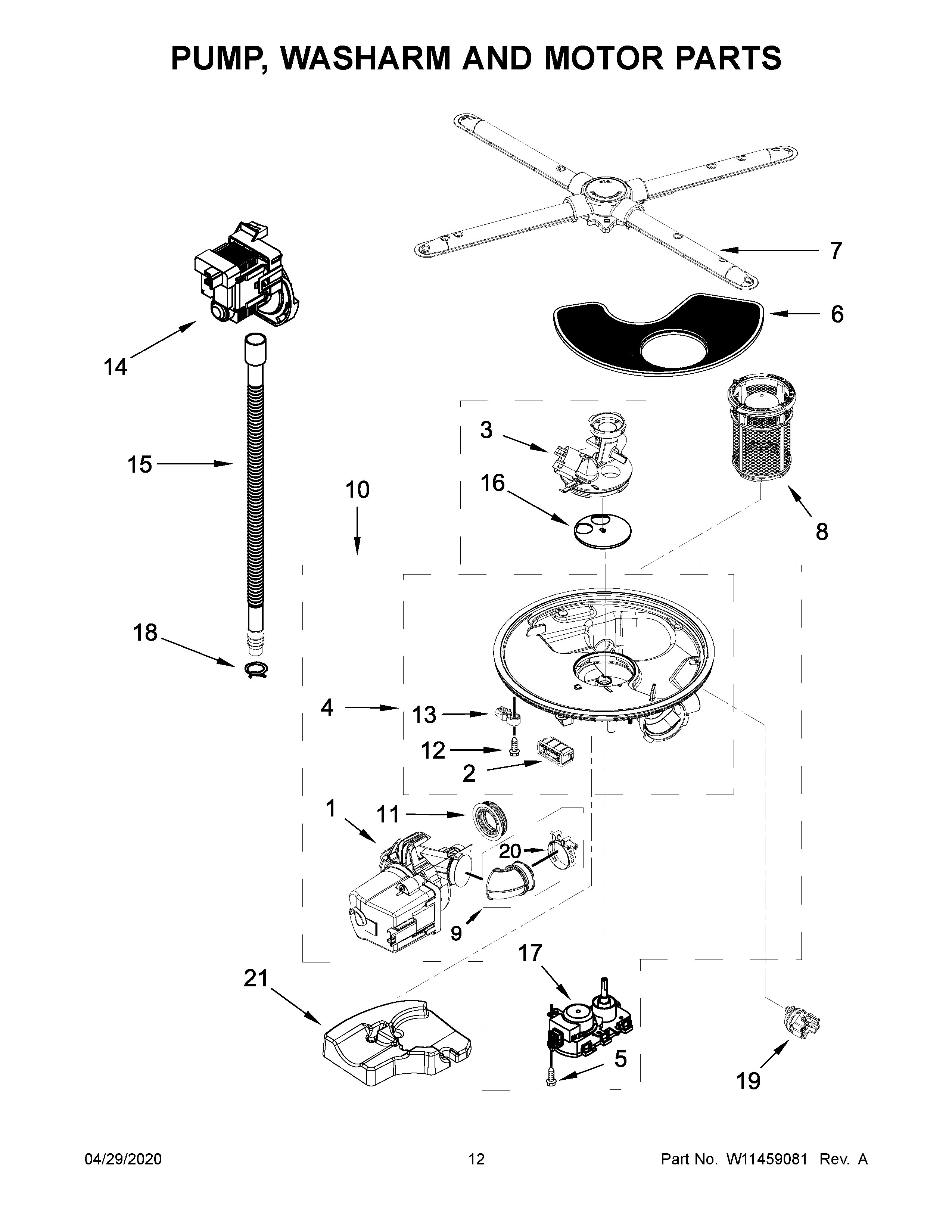

07 - PUMP, WASHARM AND MOTOR PARTS
- 01 - COVER SHEET
- 02 - DOOR PANEL PARTS
- 03 - CONTROL PANEL AND LATCH PARTS
- 04 - INNER DOOR PARTS
- 05 - FILL, DRAIN AND OVERFILL PARTS
- 06 - TUB AND FRAME PARTS
- 07 - PUMP, WASHARM AND MOTOR PARTS
- 08 - UPPER WASH AND RINSE PARTS
- 09 - UPPER RACK AND TRACK PARTS
- 10 - LOWER RACK PARTS
- 11 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10854710 | MOTOR,PUMP | W11084656 | $331.25 | ||
| 2 | W10195086 | SUPPORT | W11243394 | $10.77 | ||
| 3 | W10455271 | COVER | WPW10455271 | $28.15 | ||
| 4 | W10455268 | SUMP | WPW10455268 | $183.54 | ||
| 5 | 9741232 | SCREW | WP9741232 | $6.32 | ||
| 6 | W10463906 | SCREEN | WPW10463906 | $26.53 | ||
| 7 | W10858786 | SPRAY ARM | W11101428 | $117.59 | ||
| 8 | W10789806 | FILTER CUP ASM-GN W/SGL PRINT | W10872845 | $60.59 | ||
| 9 | W10445975 | HOSE | $92.65 | |||
| 10 | W10917110 | SUMP & MOTOR ASSEMBLY | W11085683, W11665769 | Call to order | ||
| 11 | W11182008 | GROMMET | WPW10538166 | $33.73 | ||
| 12 | W10348407 | SCREW | WPW10348407 | $6.28 | ||
| 13 | W10372113 | TAB,SUMP MOUNTING,LOCK | WPW10372113 | $25.78 | ||
| 14 | W10724439 | PUMP | W10876537 | $110.18 | ||
| 15 | 8269144 | HOSE-DRAIN | 8269144A | $22.95 | ||
| 16 | W10476221 | DIFFUSER | WPW10476221 | $22.56 | ||
| 17 | W10849439 | MOTOR | W10537869 | $129.07 | ||
| 18 | 8269146 | CLAMP | WP8269146 | $6.27 | ||
| 19 | W10723295 | SENSOR | W11084121 | $67.83 | ||
| 20 | W10169167 | CLAMP | W10789434 | $13.63 | ||
| 21 | W10300776 | SUMP DAMPER ASM | W10350335 | $69.29 | ||
| 21 | W10350335 | SUMP DAMPER ASM | $69.29 |
*The price can change whitout warning
