Brand: Whirlpool

Model: KOCE500ESS11 - WALL OVEN, MICRO COMBO, SINGLE, 30 INCH

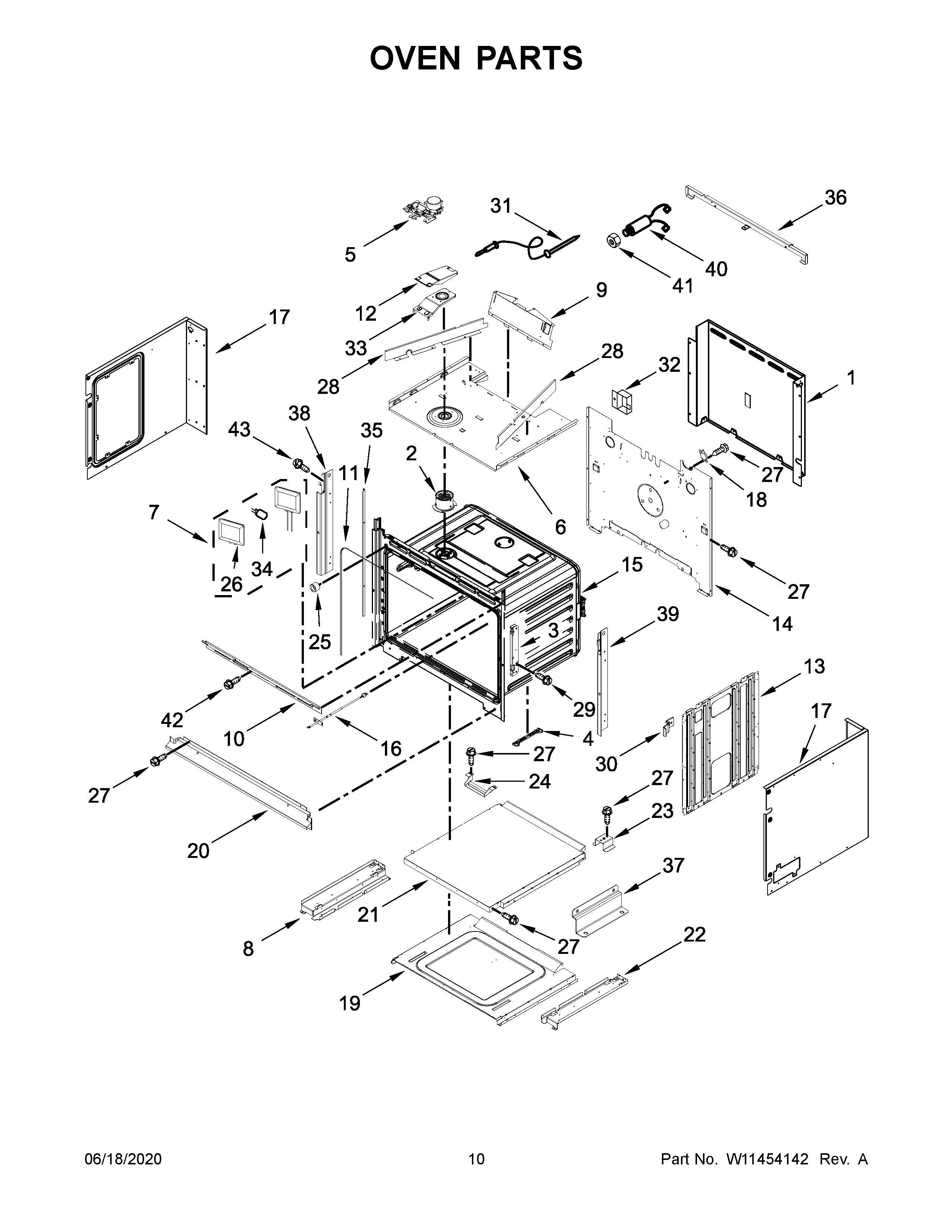

06 - OVEN PARTS

KOCE500ESS11
Plan number Part Number Description Replacement Price
1 W10519707 REAR COVER   $70.55
2 W11085298 TUBE,VENT W11240525   $17.93
3 W11044775 RECEIVER,HINGE W11613828   $40.98
4 W10618102 SPACER W11240831   $14.25
5 W10618131 DOOR LATCH MTORIZED W10883049   $243.85
6 W10904158 TOP-CABNT   $133.38
7 W11198684 LIGHT,OVEN W11245268   $75.22
8 W10283020 SUPPORT   $49.34
9 W10904163 DEFLCTR-VT   $129.58
10 W10495154 VENT,OVEN   $133.48
12 W10616810 COVER,EXHAUST   $53.23
13 W10318190 PANEL-SIDE   $105.31
14 W10904160 COVER-REAR   $52.91
15 N/P LINER, OVEN (NOT SERVICEABLE)   $0.00
16 W10622170 SENSOR W10859573   $173.60
17 W10655466 CHASSIS, COMBO SIDE (LEFT)   $0.00
17A W10283029 COVER-SIDE   $61.71
18 4449751 T.O.D. SPST OVER TEMP WP4449751   $145.15
19 W11238787 PIPE-MNFLD   $273.17
20 W10327373 VENT,OVEN WPW10327373   $210.21
20A W10506344 VENT-OVEN   $102.38
20B W10351279 VENT,OVEN WPW10351279   $175.53
20C W10723091 ASSEMBLY, BOTTOM VENT (BLACK STAINLESS)   $0.00
21 W10283008 COVER ACCESS WPW10283008   $155.65
22 W10283021 SUPPORT   $49.34
23 W10213759 SUPPORT   $57.90
24 W10351308 BRKT-SUPRT   $60.13
25 W10351278 BUMPER WPW10351278   $7.91
26 W10472386 LIGHT,OVEN WPW10519866   $74.44
27 7101P426-60 SCREW WP90767   $6.30
28 W10681156 DEFLCTR-VT   $66.35
29 W10254050 SCREW WPW10254050   $6.63
30 W10347649 SPACER   $12.64
31 9755542 PROBE-MEAT WP9755542   $106.80
32 8285593 COVR-WIRE   $71.39
33 W10616809 TUBE,VENT   $28.40
34 W10472384 BULB LIGHT WPW10472384   $104.19
35 W10344483 COVER W10536162   $35.13
35A W10344482 COVER W10536162   $35.13
36 W10283022 SUPPORT   $0.00
37 W10283024 BRKT-MNTG   $60.37
38 W10360517 BRKT-MNTG   $62.66
38A W10710302 BRKT-MNTG   $58.06
39 W10360519 BRKT-MNTG   $62.59
39A W10710309 BRKT-MNTG   $58.06
40 W10696226 JACK,PROBE W11220388   $53.79
41 W11033111 LOCKNUT W11231343   $11.38
42 W11249635 SCREW WPY706189   $5.97
43 7101P633-60 SCREW WP98008545   $15.51
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI W10520715 INSULATION W11688731   $89.82
NI W10917743 INSULATION W11292324   $77.25
*The price can change whitout warning
