Brand: Whirlpool

Model: KOCE500ESS11 - WALL OVEN, MICRO COMBO, SINGLE, 30 INCH

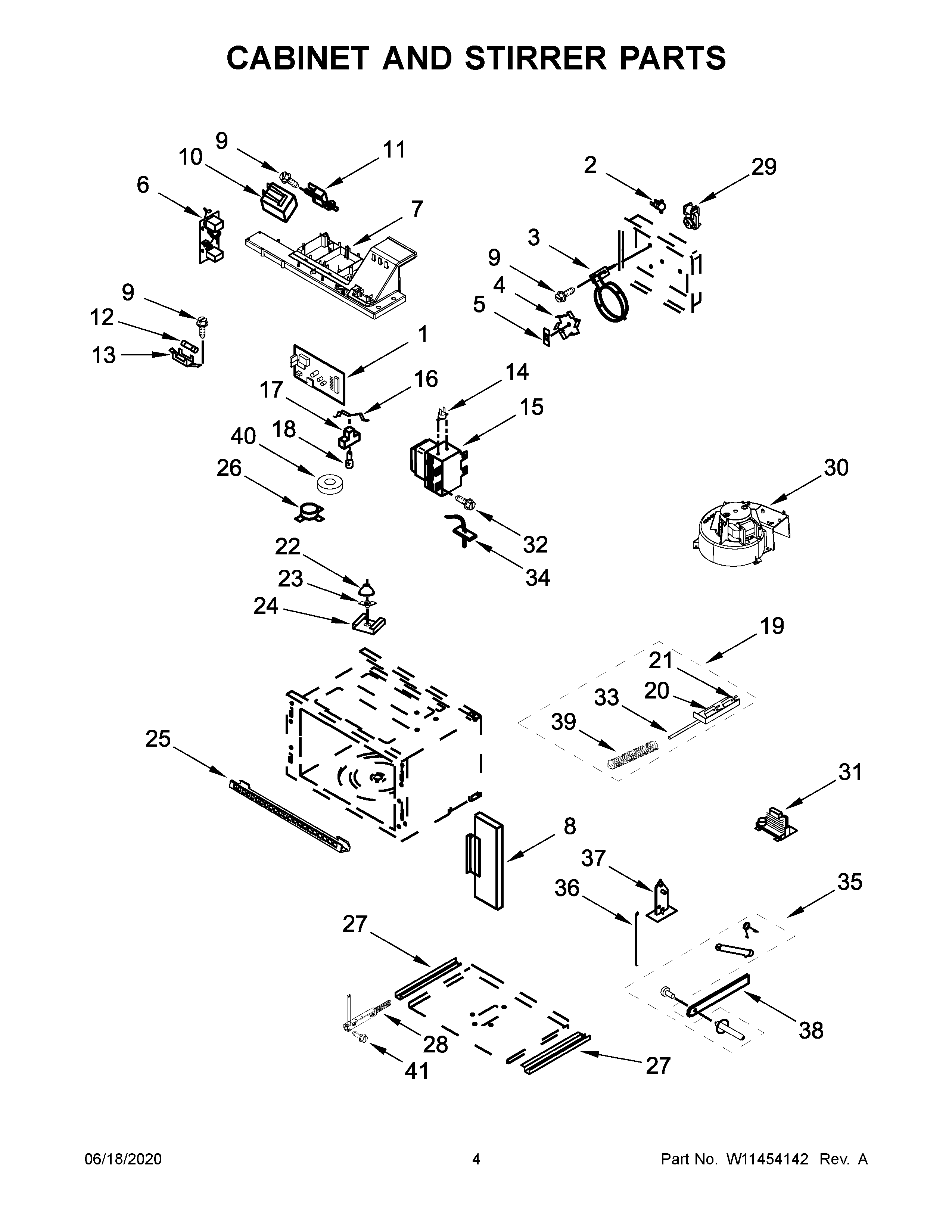

03 - CABINET AND STIRRER PARTS

KOCE500ESS11
Plan number Part Number Description Replacement Price
1 W11289998 CONTROL BOARD W11325786   $223.82
2 423107845441 THERMOSTAT W11607085   $31.50
3 461967848711 HEATER WPW10493735   $88.35
4 461967001792 FAN W11512064   $125.40
5 W10120233 NUT, SPEED W11724411   $0.00
6 W10692851 FILTER W11398764   $147.31
7 461967754821 DUCT-MAG   $69.71
8 461967017491 TRIM W10486208   $71.78
8A 461967017481 TRIM, SIDE (RIGHT) W10510106   $0.00
9 461967825321 SCREW   $10.33
10 461967848621 TRANSFORMER W11238401   $307.05
11 461967842541 ACTUATOR   $57.81
12 241908600053 FUSE W11188752   $13.92
13 4375231 BLOCK-FUSE W10245194   $67.45
14 461967846741 SENSOR W11233913   $125.29
15 W11226473 MAGNETRON W11346197   $298.23
16 W10465869 SPRING   $76.87
17 W10490593 HOUSING,LAMP WPW10490593   $60.12
18 W10795595 BULB-HALOGENE W10886919   $29.52
19 W11356969 HARNESS,WIRE W11449277   $108.39
20 461967848881 SWITCH W10211972   $67.45
21 W10876593 INTERLOCK W11214928   $26.33
22 423107022541 REFLECTOR   $68.70
23 423107720491 LENS,LAMP W11193483   $80.99
24 461967010591 CLIP W10120231   $7.31
25 461968973241 TRIM,DOOR   $64.25
26 W10460457 SENSOR W11699906   $99.68
27 461967008461 SUPPORT 8205707   $55.01
28 461968979601 HINGE,DOOR W10874474   $48.76
29 461967848251 MTR-CONVCT W11534564   $73.67
30 W11131760 MOTOR,FAN W11344874   $137.58
31 W11237240 INVERTER W11325604   $297.30
32 461967825381 SCREW 8205656   $8.03
33 461967750464 ROD WPW10120235   $7.98
34 241960100002 SENSOR W11208292   $125.29
35 461967510191 ARM WPW10128850   $114.03
36 461967570351 SPRING W11700292   $53.05
37 461967750494 SUPPORT W11684510   $11.19
38 461967750483 ARM W11214480   $77.69
39 423107570871 SPRING W11715912   $5.88
40 W10769147 SEAL-FOAM   $19.94
41 461967825781 SCREW W11690594   $11.19
NI W11356954 HARNS-WIRE   $113.26
NI W11356954 HARNS-WIRE   $113.26
NI W11356954 HARNS-WIRE   $113.26
*The price can change whitout warning
