Brand: Whirlpool
Model: KOST100ESS04 - WALL OVEN, ELECTRIC, SINGLE, 30 INCH

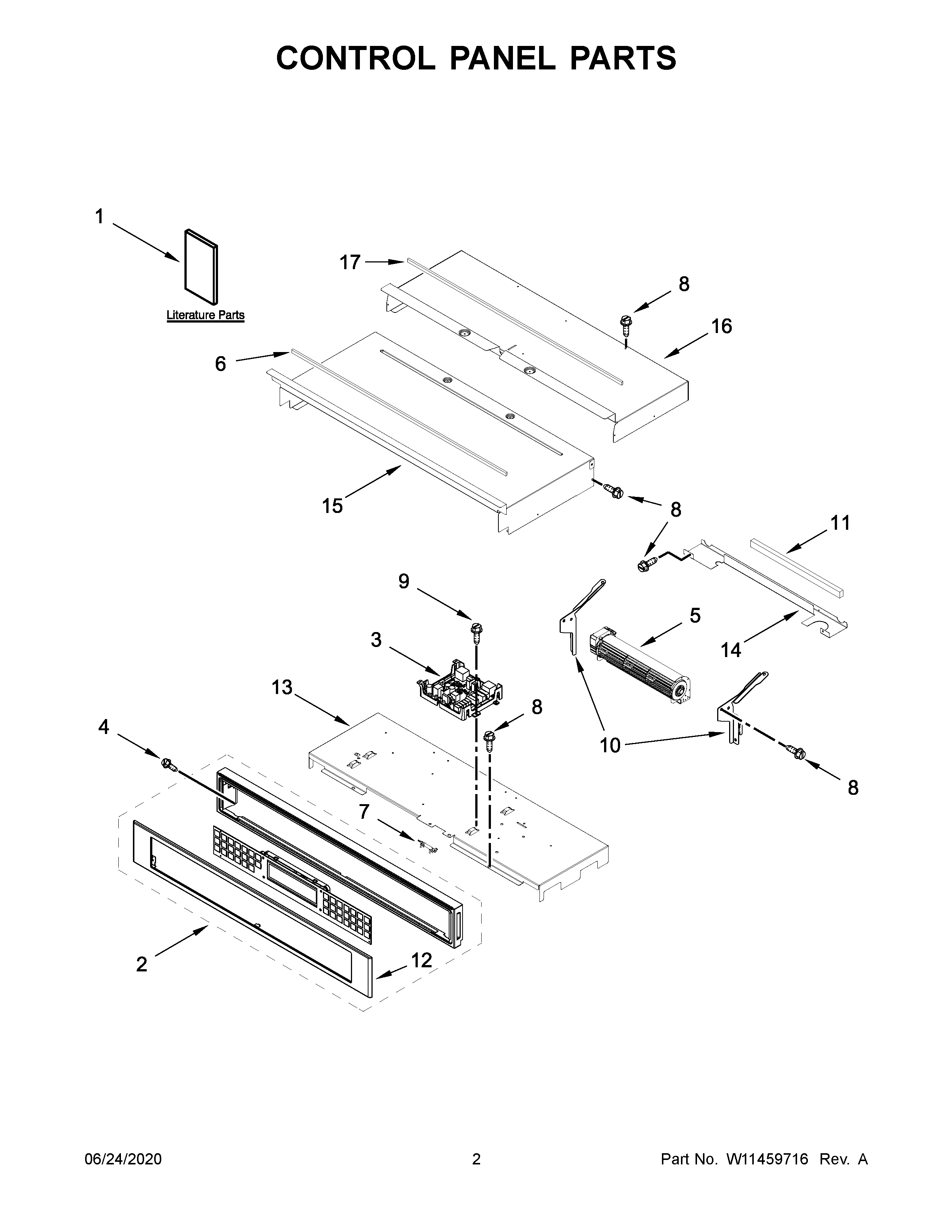

02 - CONTROL PANEL PARTS
- 01 - COVER SHEET
- 02 - CONTROL PANEL PARTS
- 03 - OVEN PARTS
- 04 - OVEN DOOR PARTS
- 05 - INTERNAL OVEN PARTS
- 06 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10643471 | GUIDE, USE & CARE | $0.00 | |||
| 1A | W10725670 | INSTRUCTIONS, INSTALLATION | $0.00 | |||
| 1B | W10351318 | INSTRUCTIONS, UNDERCOUNTER INSTALL | $0.00 | |||
| 1C | W11041061 | SHEET, TECH | $0.00 | |||
| 2 | W10890588 | CONSOLE | W11087446 | $621.67 | ||
| 3 | W11040195 | CONTROL BOARD | W11179310 | $454.96 | ||
| 4 | W11249635 | SCREW | WPY706189 | $5.97 | ||
| 5 | W11200130 | BLOWER | W11245567 | $329.97 | ||
| 6 | W11162063 | SEAL-FOAM | W11226314 | $18.74 | ||
| 7 | W10782117 | THERMAL FUSE | W11204568 | $140.10 | ||
| 8 | 7101P426-60 | SCREW | WP90767 | $6.30 | ||
| 9 | 7101P434-60 | SCREW | WP7101P434-60 | $6.62 | ||
| 10 | W10655463 | BRKT-MNTG | $25.48 | |||
| 10A | W10655462 | BRKT-MNTG | $25.48 | |||
| 11 | 4451758 | SEAL-FOAM | W10491987 | $6.28 | ||
| 12 | W10588740 | CONTROL PANEL | $161.66 | |||
| 13 | W10864102 | BRKT-MNTG | $56.36 | |||
| 14 | W10655465 | BRKT-MNTG | $57.55 | |||
| 15 | W10318192 | TOP-CABNT | $102.33 | |||
| 17 | W10728475 | SEAL-FOAM | $25.30 | |||
| NI | N/P | FOLLOWING PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W11136111 | HARNS-WIRE | $173.82 | |||
| NI | W11157178 | HARNS-WIRE | $86.66 | |||
| NI | W11132989 | HARNESS,DOOR LATCH | $86.66 | |||
| NI | W10562910 | HARNESS,WIRE | $24.50 | |||
| NI | 4450800 | SCREW | $12.16 | |||
| NI | W10487999 | CLIP | $13.92 | |||
| NI | W11132988 | HARNS-WIRE | $20.46 | |||
| NI | 4448664 | MOUNTING BRACKET | $18.06 | |||
| NI | W10655464 | BRACKET | $25.89 | |||
| NI | W10431303 | HARDWARE | W10760039 | $7.73 |
*The price can change whitout warning
