Brand: Whirlpool

Model: KOST100ESS04 - WALL OVEN, ELECTRIC, SINGLE, 30 INCH

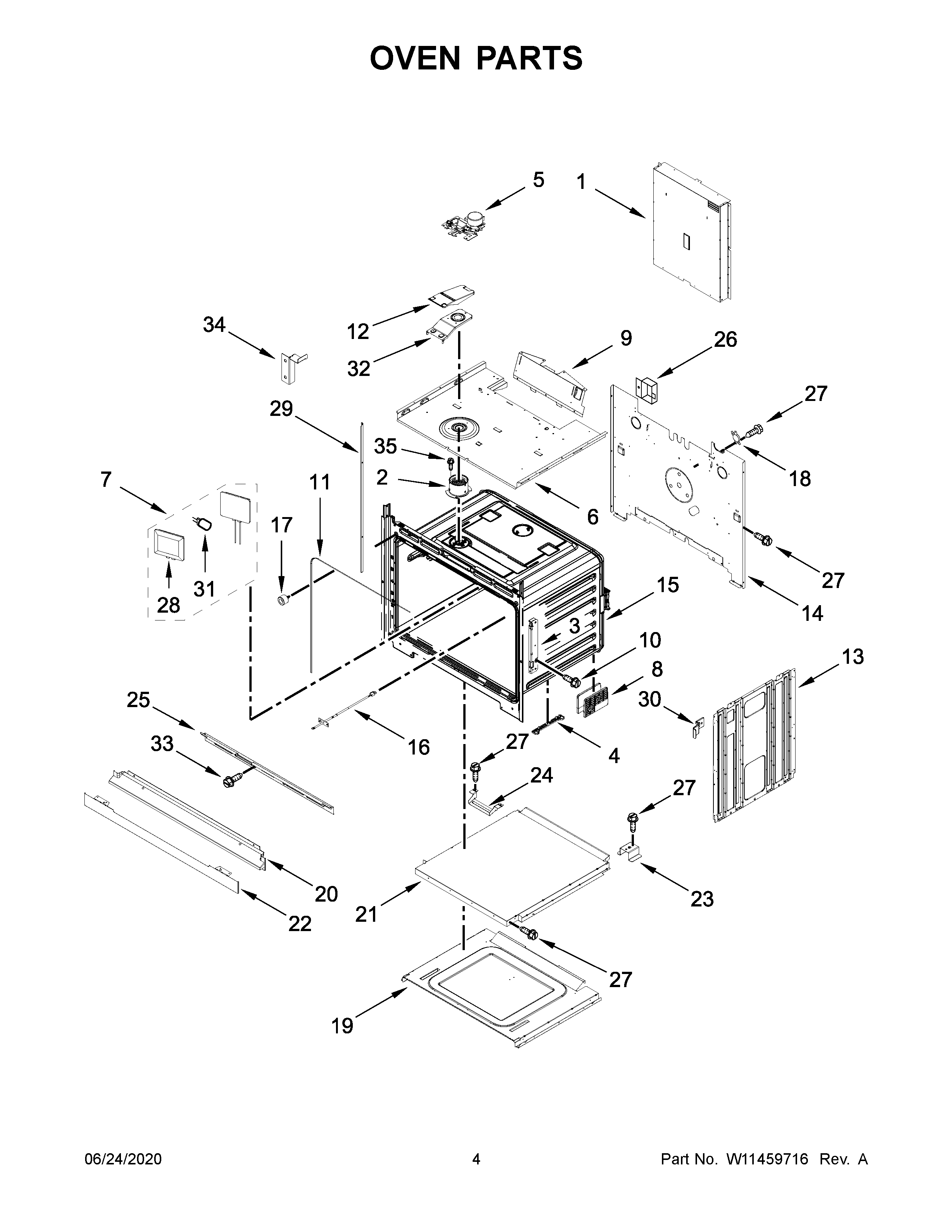

03 - OVEN PARTS

KOST100ESS04
Plan number Part Number Description Replacement Price
1 W10318196 REAR COVER   $162.69
2 W11085298 TUBE,VENT W11240525   $17.93
3 W11044775 RECEIVER,HINGE W11613828   $40.98
4 W10618102 SPACER W11240831   $14.25
5 W10618131 DOOR LATCH MTORIZED W10883049   $243.85
6 W10904158 TOP-CABNT   $133.38
7 W11198684 LIGHT,OVEN W11245268   $75.22
8 W10618101 FOOT-LEVEL W10821321   $27.91
9 W10904163 DEFLCTR-VT   $129.58
10 W10254050 SCREW WPW10254050   $6.63
11 W10282960 GASKET,OVEN W11623080   $48.48
12 W10616810 COVER,EXHAUST   $53.23
13 W10318190 PANEL-SIDE   $105.31
14 W10904160 COVER-REAR   $52.91
15 N/P LINER, OVEN (NOT SERVICEABLE)   $0.00
16 W10622170 SENSOR W10859573   $173.60
17 W10351278 BUMPER WPW10351278   $7.91
18 4449751 T.O.D. SPST OVER TEMP WP4449751   $145.15
19 W11238787 PIPE-MNFLD   $273.17
20 W10351279 VENT,OVEN WPW10351279   $175.53
21 W10283008 COVER ACCESS WPW10283008   $155.65
22 W10327377 TRIM WPW10327377   $119.69
23 W10213759 SUPPORT   $57.90
24 W10351308 BRKT-SUPRT   $60.13
25 W10283036 TRIM,VENT WPW10283036   $111.36
27 7101P426-60 SCREW WP90767   $6.30
28 W10472386 LIGHT,OVEN WPW10519866   $74.44
29 W10344481 COVER W10536160   $38.21
29A W10344480 COVER W10536160   $38.21
30 W10347649 SPACER   $12.64
31 W10472384 BULB LIGHT WPW10472384   $104.19
32 W10616809 TUBE,VENT   $28.40
33 W11249635 SCREW WPY706189   $5.97
34 W10863234 BRACKET   $60.63
34A W10863233 BRACKET   $60.63
35 W10906658 SCREW WP74003976   $6.50
NI N/P FOLLOWING PARTS NOT ILLUSTRATED   $0.00
NI W10520715 INSULATION W11688731   $89.82
NI W10917743 INSULATION W11292324   $77.25
*The price can change whitout warning
