Brand: Whirlpool
Model: KRSC703HPS01 - REFRIGERATOR, SIDE-BY-SIDE

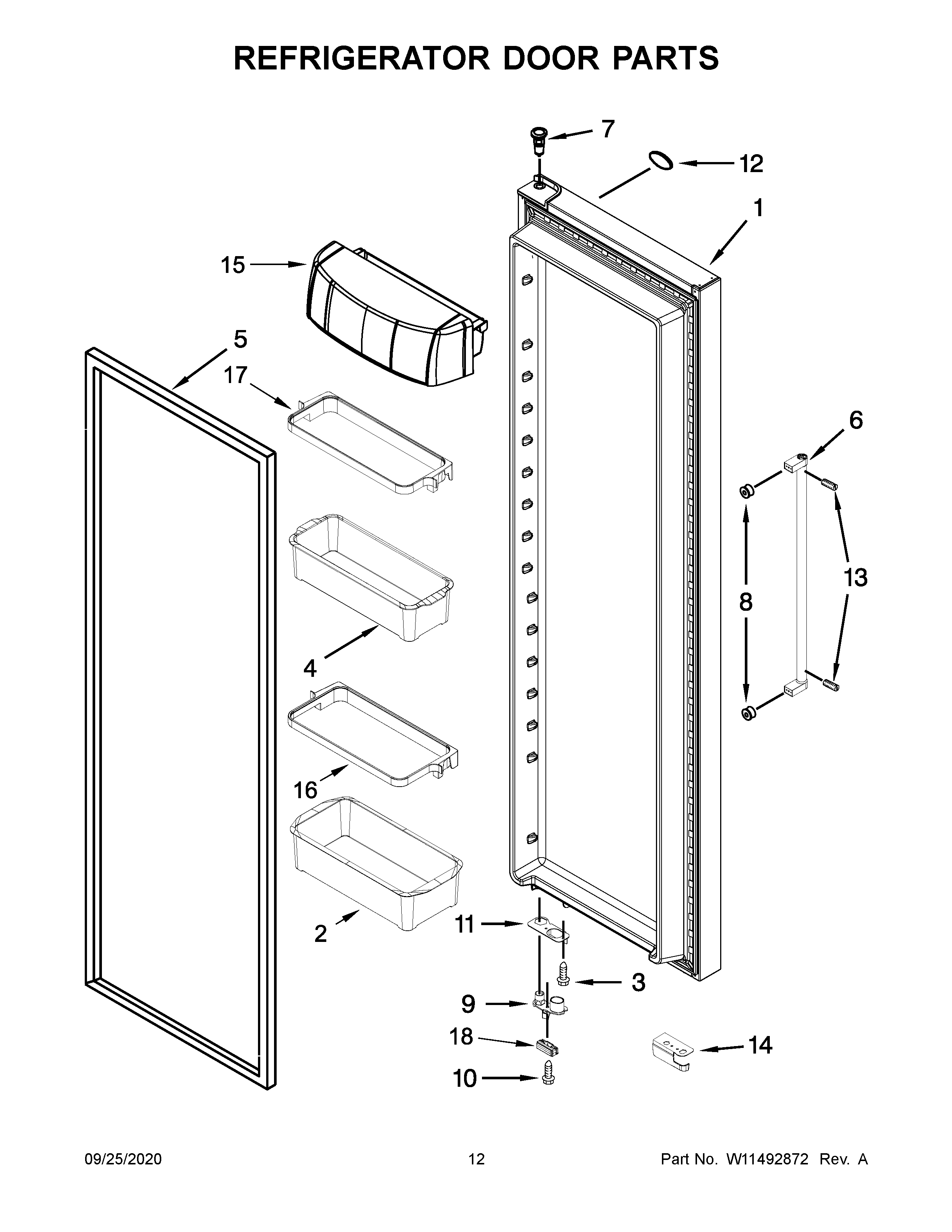

07 - REFRIGERATOR DOOR PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - REFRIGERATOR LINER PARTS
- 04 - REFRIGERATOR SHELF PARTS
- 05 - FREEZER LINER PARTS
- 06 - MOTOR AND ICE CONTAINER PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR PARTS
- 09 - DISPENSER PARTS
- 10 - AIR FLOW PARTS
- 11 - UNIT PARTS
- 12 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10864694 | DOR-FIP | LW10864694 | $987.41 | ||
| 1A | W11245994 | DOOR-FIP | W11390070 | $545.69 | ||
| 2 | W10316457 | BIN | WPW10316457 | $76.24 | ||
| 3 | W10296816 | SCREW | WPW10296816 | $5.46 | ||
| 4 | W10316461 | BIN | WPW10316461 | $65.34 | ||
| 5 | W10249914 | GASKET-FIP | W11625680 | $169.74 | ||
| 5A | W10249918 | GASKET-FIP | W10355588 | $255.28 | ||
| 6 | W11252159 | HANDLE | W11340150 | $140.14 | ||
| 7 | 2200086 | THIMBLE | WP2182181 | $6.27 | ||
| 8 | W10460893 | SCREW | WPW10661886 | $10.96 | ||
| 9 | W10257201 | CAM-DOOR | WPW10257201 | $10.11 | ||
| 9A | W10257203 | CAM,DOOR | WPW10257203 | $11.31 | ||
| 10 | W10296804 | SCREW | WPW10296804 | $9.78 | ||
| 11 | W10888898 | BRACKET | W11037957 | $58.88 | ||
| 12 | W10518672 | NAMEPLATE | W10839793 | $53.13 | ||
| 13 | W10687133 | SCREW | W10917698 | $6.72 | ||
| 14 | W10789145 | COVER-WIRE | $15.71 | |||
| 14A | W10789147 | COVER,WIRE | W11661847 | $23.94 | ||
| 15 | W10324760 | BIN,CANTILEVER | WPW10324760 | $66.14 | ||
| 16 | W10494334 | BIN-FRAME | WPW10494334 | $206.28 | ||
| 17 | W10494333 | BIN-FRAME | WPW10494333 | $203.92 | ||
| 18 | W10407187 | BUMPER,DOOR | $35.64 | |||
| 18A | W10407188 | BUMPER-DOR | W11573367 | $17.63 |
*The price can change whitout warning
