Brand: Whirlpool
Model: KRSC703HPS01 - REFRIGERATOR, SIDE-BY-SIDE

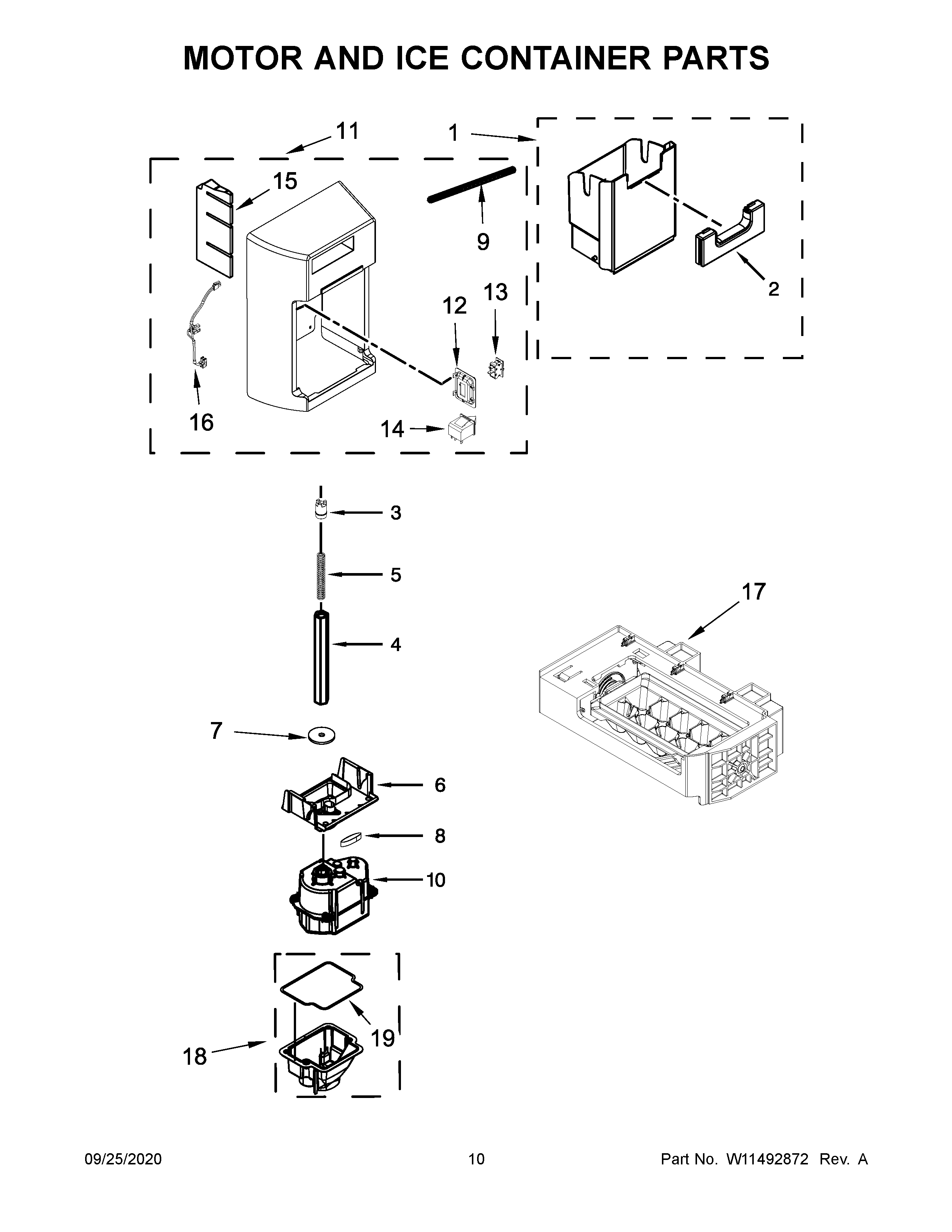

06 - MOTOR AND ICE CONTAINER PARTS
- 01 - COVER SHEET
- 02 - CABINET PARTS
- 03 - REFRIGERATOR LINER PARTS
- 04 - REFRIGERATOR SHELF PARTS
- 05 - FREEZER LINER PARTS
- 06 - MOTOR AND ICE CONTAINER PARTS
- 07 - REFRIGERATOR DOOR PARTS
- 08 - FREEZER DOOR PARTS
- 09 - DISPENSER PARTS
- 10 - AIR FLOW PARTS
- 11 - UNIT PARTS
- 12 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11251049 | ICE CONTAINER | W11347840 | $258.97 | ||
| 2 | W10693542 | LATCH-BIN | W11652042 | $17.08 | ||
| 3 | 2220458 | COUPLING | WP2220458 | $32.21 | ||
| 4 | W10258544 | SHAFT | WPW10258544 | $24.12 | ||
| 5 | W10754509 | SPRING | W10852956 | $18.43 | ||
| 6 | W11240062 | CHUTE | W11573761 | $43.26 | ||
| 7 | 2305382 | WASHER | WP2305382 | $7.43 | ||
| 8 | W10291905 | SEAL | WPW10291905 | $23.83 | ||
| 9 | W10400435 | GASKET | WPW10400435 | $18.42 | ||
| 10 | W11117906 | MOTOR | W11202789 | $283.60 | ||
| 11 | W10669473 | COVER,FRONT | W11126296 | $91.11 | ||
| 12 | W10691248 | PLATE | $104.86 | |||
| 13 | W10666871 | ROCKER SWITCH | W10918003 | $61.01 | ||
| 14 | W11032814 | SWITCH | W11123943 | $29.64 | ||
| 15 | W10749467 | INSULATION | $78.20 | |||
| 16 | W10646076 | WIRE-JUMPR | W11684619 | $15.26 | ||
| 17 | W11130444 | ICEMAKER | W10873791 | $139.81 | ||
| 18 | W10765378 | BRACKET | W11678273 | $53.03 | ||
| 19 | W10166854 | GASKET | $19.35 |
*The price can change whitout warning
