Brand: Electrolux

Model: FGIP2468UF2A - DISHWASHER, BUILT-IN, 24 INCH

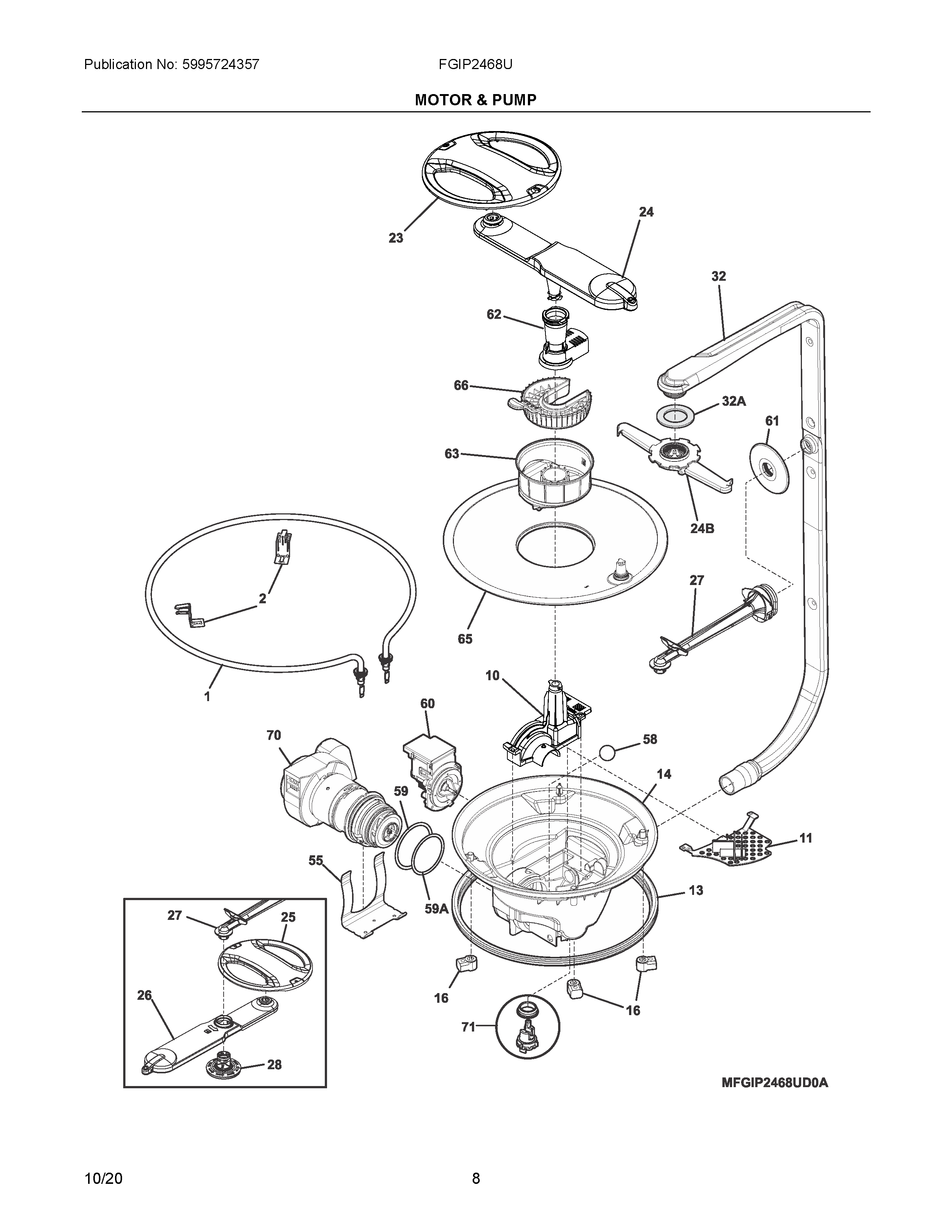

05 - MOTOR & PUMP

FGIP2468UF2A
Plan number Part Number Description Replacement Price
1 154825001 HEATER,ROUND   $95.05
NIA 154106202 NUT   $6.55
NIB 154289801 SHIELD-HEATER TERMINAL   $8.00
2 154465101 BRACKET,HEATER   $11.60
10 5304517590 COVER,VOLUTE   $11.60
NI 154783101 SCREW,PLT,8-10   $7.25
11 807111601 PLATE,PUMP INLET   $18.15
13 154246801 SUMP - GASKET   $49.35
14 154723801 SUMP ASSEMBLY   $62.40
16 154246502 RETAINER, SUMP WG04F06828   $0.00
NIA 154754901 SCREW,SUMP MTG ,8-16 ,(4)   $4.35
23 5304517982 ORBITAL SPRAYER ASM   $84.90
24 5304517981 ARM,ORBITAL SPRAYER   $107.40
24B 5304506516 UPPER SPRAY ARM ASSY   $23.25
25 5304517890 ORBITAL SPRAYER   $41.35
26 5304517891 ARM,ORBITAL SPRAYER,GREY,MIDDL   $93.60
27 5304517892 MANIFOLD ASSEMBLY,SPRAY ARM   $39.90
28 5304517893 LOCK NUT,SPRAY ARM,MIDDLE   $10.90
32 154824201 TUBE,DELIVERY 5304507087   $69.65
NIA 154106801 CLAMP,SPRING,RED,(2) 154611101   $12.35
NIB 154491101 SCREW,DELIVERY TUBE   $3.65
32A 154406401 GASKET,DELIVERY TUBE   $10.90
55 154595901 BRACKET, CIRC PUMP MOTOR 5304534830   $5.55
NIA 154779601 SCREW,PH,8-10,(2)   $1.45
58 154246402 CHECK BALL   $57.35
59 154246901 O'RING, REAR   $58.05
59A 154247001 O'RING,FRONT   $58.05
60 5304492415 PUMP ASSY,DRAIN,W/SEAL-IM A00126401   $129.90
NIA 807048001 VALVE-FLAPPER,DRAIN PUMP   $9.45
NIB 154741501 SCREW,DRAIN MOTOR MTG ,(3)   $13.80
61 5304506517 RUBBER GASKET   $15.95
62 5304517589 SUPPORT,SPRAY ARM,LOWER 5304532954   $7.60
63 5304506533 BASE   $22.50
65 154283005 FILTER ASSY,GREY   $259.10
66 5304506518 TRAP,GLASS   $15.25
70 5304526748 MOTOR & PUMP ASSY, VARIABLE SPEED 154853801   $0.00
71 154762601 SENSOR,TURBIDITY   $79.85
*The price can change whitout warning
