Brand: Electrolux
Model: FGIP2468UF2A - DISHWASHER, BUILT-IN, 24 INCH

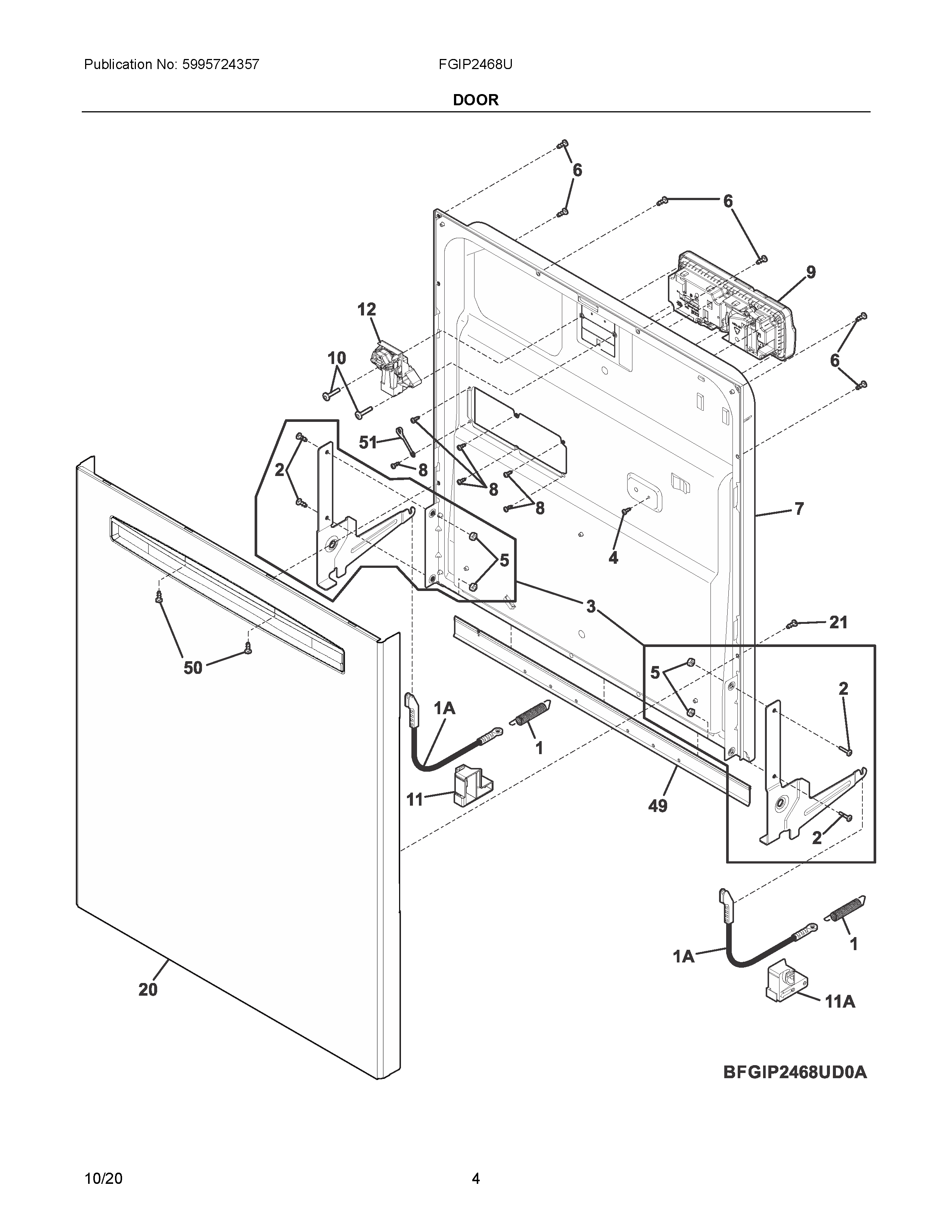

03 - DOOR
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 154579101 | SPRING,FRICTION PULLEY | $42.80 | |||
| 1A | 154578801 | CABLE | 154756401 | $3.80 | ||
| 2 | 154093301 | SCREW-ARM ASSEMBLY (4) | $2.20 | |||
| 3 | 5304513274 | KIT LEFT & RIGHT ARM | $69.65 | |||
| NI | 154647101 | HINGE PIN,ARM ASSY | $14.50 | |||
| NI | 154686401 | HINGE PIN BEARING | $10.90 | |||
| 4 | 154825401 | SCREW,HEX HEAD,8-18 X .400,(2) | 808326801 | $2.90 | ||
| 5 | 154079601 | NUT | 5303013272 | $18.15 | ||
| 6 | 154783101 | SCREW,PLT,8-10 | $7.25 | |||
| 7 | 5304520007 | LINER ASSY,DOOR,W/REINFORC. | $156.05 | |||
| 8 | 154294701 | SCREW-DISPENSER ASSEMB. #7 | $9.45 | |||
| 9 | 5304506521 | DISPENSER,DETERGENT | $99.45 | |||
| NIA | 5304525214 | SHIELD,DISPENSER ASSY | $10.15 | |||
| 10 | 154103702 | SCREW - LATCH MTG. | $13.80 | |||
| 11 | 154579201 | PULLEY,FRICTION,LH | $48.65 | |||
| 11A | 154579202 | PULLEY,FRICTION,RH | $48.65 | |||
| 12 | 5304525218 | DOOR LATCH ASSY | $50.10 | |||
| 20 | 5304517622 | OUTER DOOR,SS,W/INSULATION | $154.60 | |||
| 21 | 154754701 | SCREW,TRUSS HD ,8-18 TYPE AB , | $3.65 | |||
| 49 | 5304500204 | GASKET,DOOR | $29.05 | |||
| 50 | 5304506783 | SCREW,LATCH HANDLE,(6) | $2.20 | |||
| 51 | 154320301 | CLAMP, DRIP LOOP, WIRE | $0.00 |
*The price can change whitout warning
