Brand: Maytag
Model: JJW9530DDW30 - ELECTRIC WALL OVEN

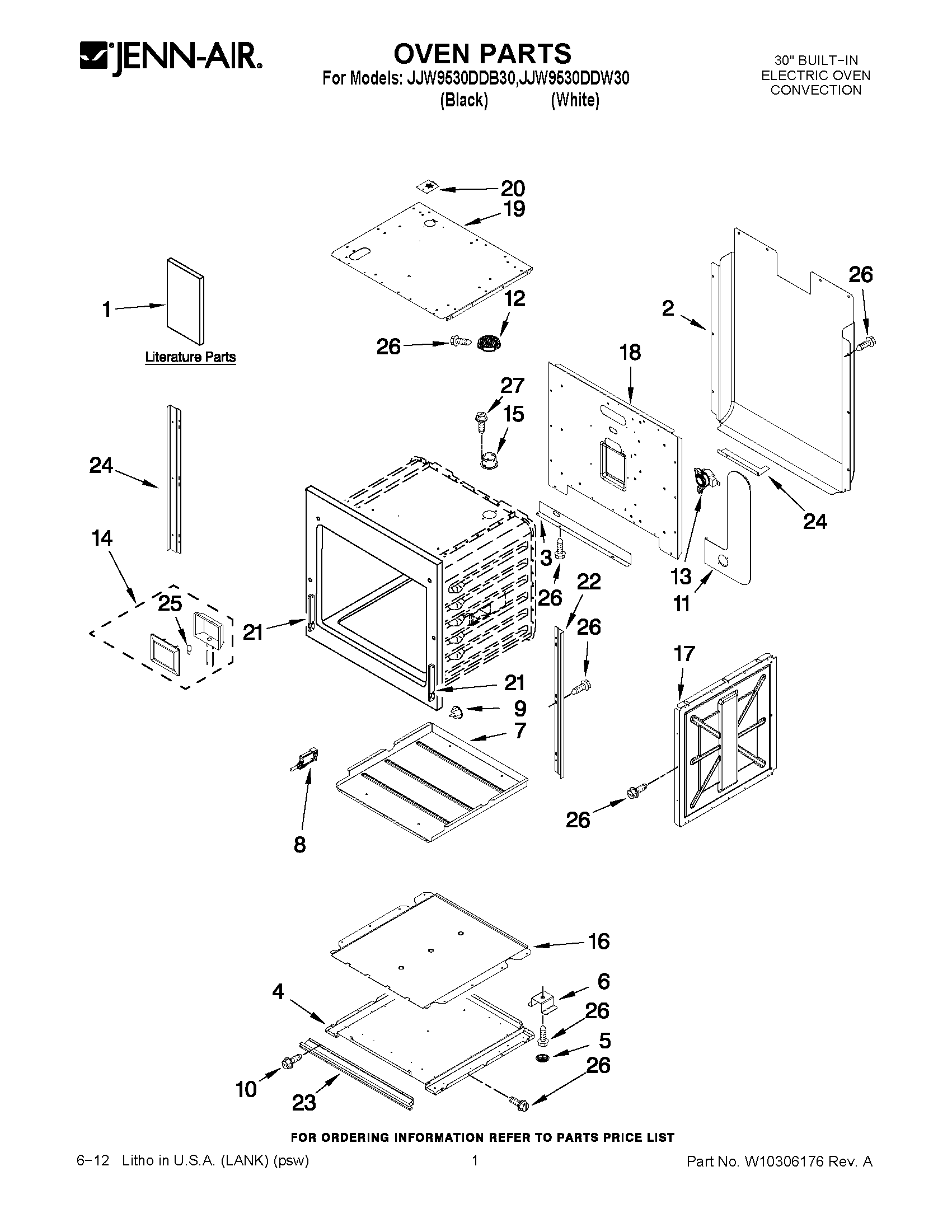

01 - OVEN PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 8101P602-60 | INSTALLATION INSTRUCTIONS | $0.00 | |||
| 1 | W10169642 | OWNERS MANUAL BROCHURE, | $0.00 | |||
| 1 | 9762761 | TIPS, SAFE COOKING (ENGLISH) | $0.00 | |||
| 1 | W10065852 | TIPS, SAFE COOKING (FRENCH) | 9759133 | $0.00 | ||
| 1 | 8119P253-60 | DIAGRAM, WIRING (ENGLISH) | $0.00 | |||
| 1 | 8119P258-60 | DIAGRAM, WIRING (FRENCH) | $0.00 | |||
| 2 | 2624F043-51 | COVER | $204.22 | |||
| 3 | 3601F343-51 | BAFFLE, REAR LOWER | $0.00 | |||
| 4 | 2624F079-51 | PANEL, BOTTOM | $0.00 | |||
| 5 | 8038P035-60 | FOOT, PLASTIC (4) | $0.00 | |||
| 6 | 3807F706-51 | SUPPORT, AIR CHANNEL | $0.00 | |||
| 7 | 3401F079-45 | PAN, HIDDEN BAKE | $0.00 | |||
| 8 | 7450P109-60 | LIGHT SWITCH ASSY | WP7450P108-60 | $124.61 | ||
| 9 | 7718P033-60 | BUTTON | 74009408 | $5.31 | ||
| 10 | 7101P427-60 | SCREW | WPY706189 | $5.97 | ||
| 11 | 4006W217-45 | BOX-VENT | $164.19 | |||
| 12 | 8034P008-60 | TUBE,VENT | $24.22 | |||
| 13 | 7403P899-60 | SWITCH-SAFETY | WP7403P899-60 | $163.42 | ||
| 14 | 7407P179-60 | ASSEMBLY, LIGHT | WP74009970 | $0.00 | ||
| 15 | 8026P065-60 | TUBE-VENT | $19.77 | |||
| 16 | 3818F108-51 | CHANNEL, BOTTOM | $0.00 | |||
| 17 | 2618F215-51 | PANEL, SIDE | $0.00 | |||
| 18 | 2624F094-51 | RETAINER, REAR INSULATION | $0.00 | |||
| 19 | 2618F226-51 | PNL, TOP RETAINER | $0.00 | |||
| 20 | 4005F726-45 | COVER, VENT | $0.00 | |||
| 21 | 7106P127-60 | BRACKET | WP74011337 | $39.94 | ||
| 22 | 7744P461-60 | TRIM, SIDE (LEFT) | WP74009752 | $0.00 | ||
| 22 | 7744P460-60 | TRIM, SIDE (RIGHT) | WP74009751 | $0.00 | ||
| 23 | 3608F099-70 | TRIM, BOTTOM VENT | $0.00 | |||
| 24 | 4005P712-51 | COVER, REAR | $0.00 | |||
| 25 | 899138-001 | BULB, HALOGEN (BI-PIN LOW) | WP74009925 | $16.77 | ||
| 26 | 7101P426-60 | SCREW | WP90767 | $6.30 | ||
| 27 | 7101P434-60 | SCREW | WP7101P434-60 | $6.62 | ||
| NI | 7002P423-60 | INSULATION, WRAP | 74010414 | $0.00 | ||
| NI | 7002P352-60 | INSULATION, BACK | 74008405 | $0.00 |
*The price can change whitout warning
