Brand: Maytag
Model: JJW9530DDW30 - ELECTRIC WALL OVEN

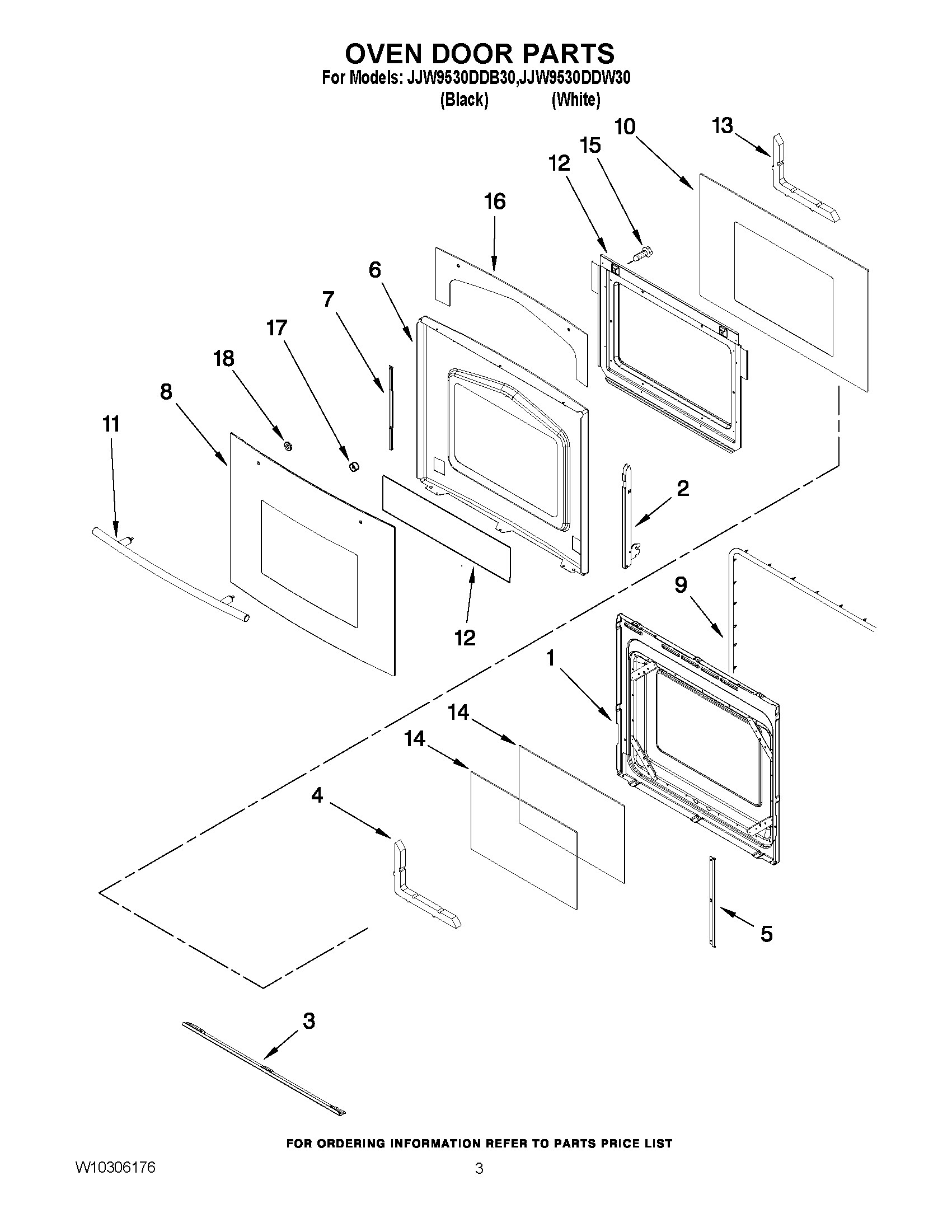

02 - OVEN DOOR PARTS
- 01 - COOKTOP, LIT/OPTIONAL
- 01 - OVEN PARTS
- 02 - OVEN DOOR PARTS
- 03 - INTERNAL OVEN PARTS
- 05 - OPTIONAL PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 2402W314-19 | LINER-DOOR | $0.00 | |||
| 2 | 7106P117-60 | HINGE | WP74010283 | $100.70 | ||
| 3 | 3608F102-70 | TRIM, BTM DR VENT | $0.00 | |||
| 4 | 7002P246-60 | Insulation, Door | $0.00 | |||
| 5 | 3801F886-51 | BRKT-MNTG | $0.00 | |||
| 6 | 3603F073-70 | FRAME-DOOR | $0.00 | |||
| 7 | 3804F144-45 | RETAINER, DR GLASS | $0.00 | |||
| 8 | 7922P020-60 | ASSY., DOOR GLASS (BLACK) | $0.00 | |||
| 8 | 7922P021-60 | ASSY., DOOR GLASS (WHITE) | WP74008418 | $0.00 | ||
| 9 | W10162386 | SEAL, DOOR | WPW10162386 | $129.05 | ||
| 10 | 7902P656-60 | GLASS, DOOR (SCREENED) | WPY74008423 | $0.00 | ||
| 11 | 7701P473-60 | HANDLE- DO | WP74008625 | $214.26 | ||
| 12 | 3804F303-51 | RETAINER, INSUL. | $0.00 | |||
| 13 | 3601F373-51 | BAFFLE | $215.10 | |||
| 14 | 7902P436-60 | GLASS, INNER | 74003645 | $172.66 | ||
| 15 | 7101P426-60 | SCREW | WP90767 | $6.30 | ||
| 16 | 7101P427-60 | SCREW | WPY706189 | $5.97 | ||
| 17 | 7103P176-60 | NUT | WP3400029 | $6.06 | ||
| 18 | 7109P082-60 | WASHER | 74009194 | $0.00 |
*The price can change whitout warning
