Brand: Maytag
Model: ACF3325AC (BOM: PACF3325AC0) - 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN

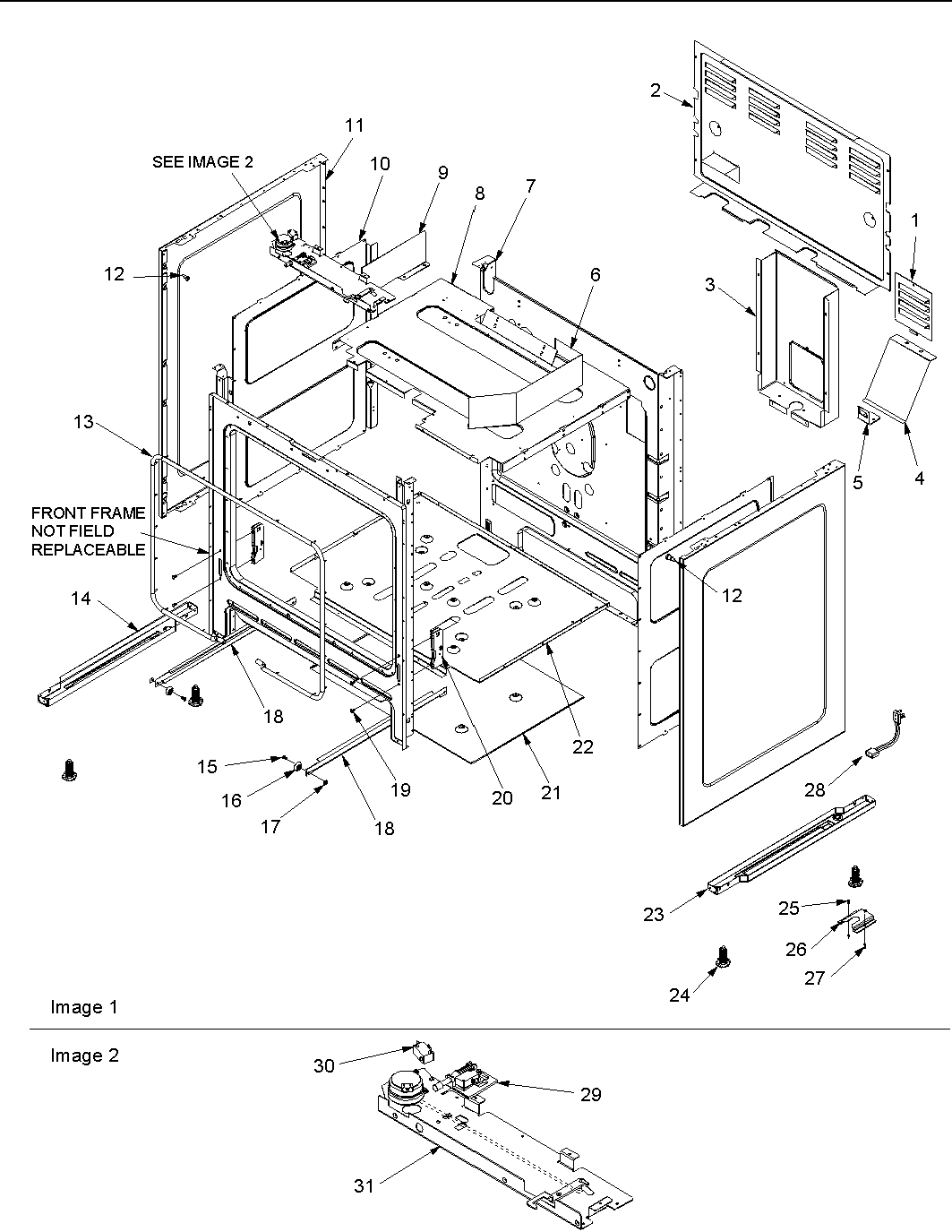

01 - Cabinet
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 31757201 | PLATE, ACCESS | $0.00 | |||
| 2 | 32021401 | COVER, LOWER REAR | $0.00 | |||
| 3 | 31955101 | RACEWAY, LOWER WIRE | $0.00 | |||
| 4 | 32027101 | WIRE SHIELD (GAS) | $0.00 | |||
| 5 | 31956001 | BRACKET, MOUNTING-SUPPLY CORD | $0.00 | |||
| 6 | 32006101 | SHIELD, SIDE PANEL-LG BURNER | $0.00 | |||
| 7 | 31936601 | RETAINER INSULATION (REAR) | $0.00 | |||
| 8 | 31936701 | RETAINER INSULATION (TOP) | $0.00 | |||
| 9 | 32006001 | SHIELD, SIDE PANEL-RT | $0.00 | |||
| 10 | 31932101 | RETAINER INSULATION (SIDE) | $0.00 | |||
| 11 | 32041003C | PANEL, SIDE (BSQ) | $0.00 | |||
| 12 | 31750718 | SCREW, SHOULDER ABNo.8-18 X .550 | $0.00 | |||
| 13 | 32057601 | GASKET, OVEN DOOR | $0.00 | |||
| 14 | 31968501 | ASSY, BTM BRACE/LEVEL LEG-LT | $0.00 | |||
| 15 | 31750717 | BOLT, SHOULDER 10-32 | $0.00 | |||
| 16 | 31733401 | ROLLER, DRAWER | $0.00 | |||
| 17 | 31750130 | NUT, LOCK (CENTER) No.10-32 (ZN) | $0.00 | |||
| 18 | 32075601 | TRACK, MOUNTING | $0.00 | |||
| 19 | 31750402 | SCREW, No.8-32 X 5/16 PPH (BLK) | $0.00 | |||
| 20 | 31946801 | RECEIVER, HINGE | $0.00 | |||
| 21 | 32075901 | HEAT SHIELD, DRAWER | $0.00 | |||
| 22 | 31931901 | RETAINER INSULATION (BOTTOM) | $0.00 | |||
| 23 | 31968502 | ASSY, BTM BRACE/LEVEL LEG-RT | $0.00 | |||
| 24 | 31949001B | LEG, PLASTIC LEVELING | $0.00 | |||
| 25 | 31750412 | SCREW, No.8-18X5/8 P RD HD (BLK) | $0.00 | |||
| 26 | 31945201 | BRACKET, ANTI TIP | $0.00 | |||
| 27 | Y0301555 | ANCHOR, PLASTIC | $0.00 | |||
| 28 | Y0306654 | POWER CORD | $0.00 | |||
| 29 | 32006701 | ASSY, PLUNGER SWITCH (CLASS F) | $0.00 | |||
| 30 | 32006601 | SWITCH, MICRO (CLASS F) | $0.00 | |||
| 31 | 32026601 | ASSY, AUTO LATCH | $0.00 |
*The price can change whitout warning
