Brand: Maytag
Model: MSD2756AEW - REFRIGERATOR

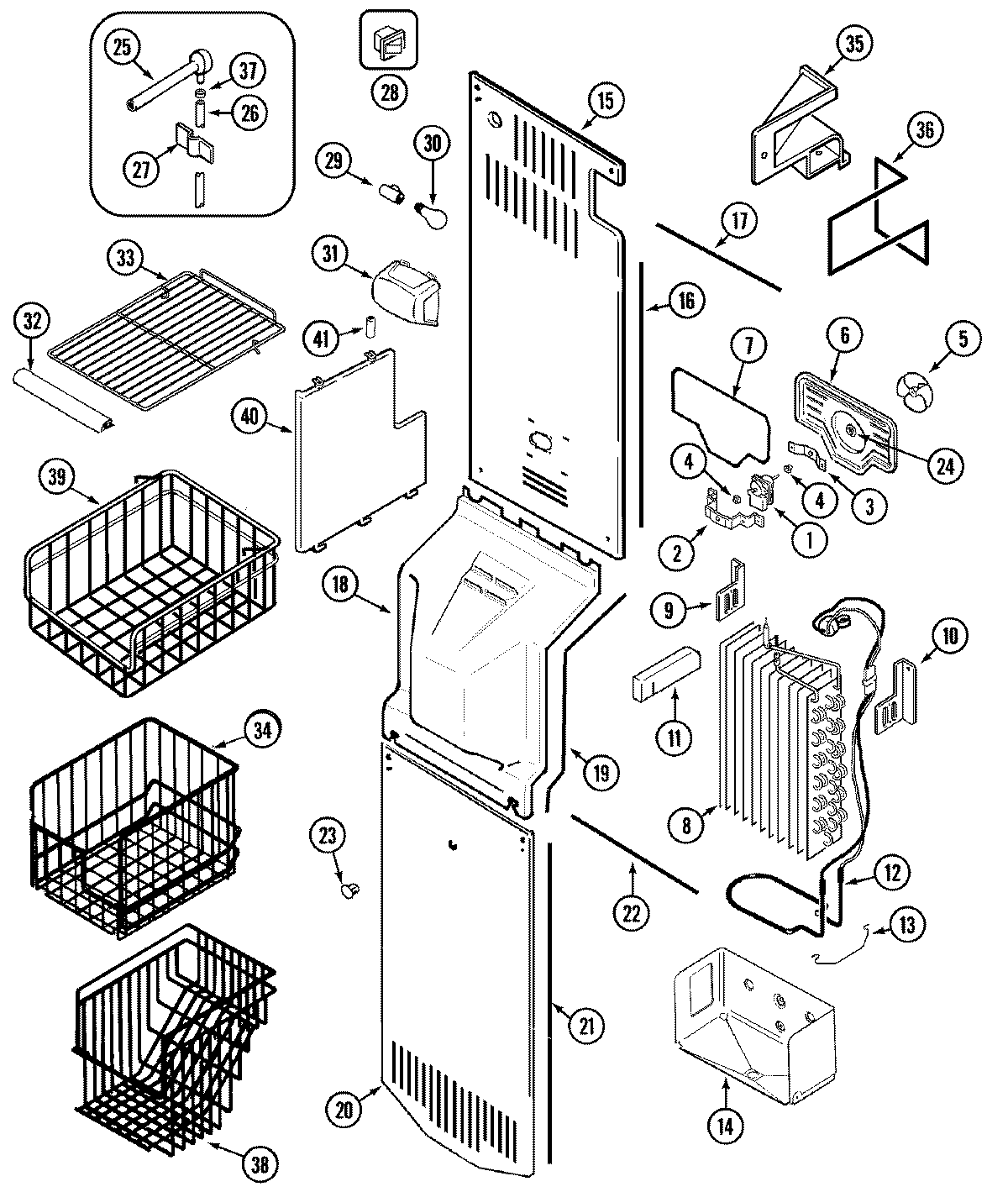

04 - FREEZER COMPARTMENT
- 01 - COMPRESSOR
- 01 - COVER SHEET
- 02 - CONTROL PANEL PARTS
- 03 - BREAKER AND PARTITION
- 03 - FOUNTAIN
- 04 - BRG HSG/BRAKE PULLEY & PIVOT DOME
- 04 - FREEZER COMPARTMENT
- 05 - FREEZER INNER DOOR
- 06 - REFRIGERATOR DOOR PARTS
- 08 - DISPENSER FRONT
- 08 - FRESH FOOD OUTER DOOR
- 12 - SHELVES & ACCESSORIES
- 13 - WIRING INFORMATION
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 61001939 | EVAPORATOR FAN MOTOR | WP61004888 | $99.17 | ||
| 2 | 61001885 | SCREW | WP489399 | $5.68 | ||
| 2 | 61001930 | BRACKET, EVAPORATOR FAN | $0.00 | |||
| 3 | 61002234 | RETAINER, EVAPORATOR FAN | $0.00 | |||
| 3 | 61001885 | SCREW | WP489399 | $5.68 | ||
| 4 | 61002235 | BUSHING, EVAPORATOR FAN | $0.00 | |||
| 5 | 61003948 | BLADE, EVAPORATOR FAN | $0.00 | |||
| 6 | 61003898 | SHROUD, FAN | $0.00 | |||
| 7 | 61003828 | SEAL-STRIP | WP854334 | $11.34 | ||
| 8 | 12001641 | EVAP/HEAT EXCH,ASSY27,29,CDSXS | $0.00 | |||
| 9 | 61003215 | BRACKET, EVAPORATOR (LT) | $0.00 | |||
| 10 | 61003216 | BRACKET, EVAPORATOR (RT) | $0.00 | |||
| 11 | 61003213 | BLOCK, AIR | $0.00 | |||
| 12 | 61003949 | DEFROST HEATER & THERMOSTAT | WP61006199 | $67.02 | ||
| 13 | 61003202 | CLIP | WP67005457 | $8.14 | ||
| 14 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 14 | 61003830 | HOUSING, EVAPORATOR | $0.00 | |||
| 15 | 400027-28 | SCREW | $0.00 | |||
| 15 | 61004028 | COVER, COIL (UPR) | $0.00 | |||
| 16 | 61003833 | SEAL-STRIP | WP854334 | $11.34 | ||
| 16 | 61003832 | SEAL, UPPER COVER (LT) | 854334, WP854334 | Call to order | ||
| 17 | 61003834 | SEAL, UPPER COVER (TOP) | $0.00 | |||
| 18 | 61003835 | COVER, EVAPORATOR FAN | $0.00 | |||
| 19 | 61003209 | SEAL | 854334, WP854334 | Call to order | ||
| 20 | 61003836 | COVER, COIL (LWR) | $0.00 | |||
| 20 | 400027-28 | SCREW | $0.00 | |||
| 21 | 61003212 | SEAL-STRIP | WP854334 | $11.34 | ||
| 22 | 61003837 | SEAL, LOWER COVER | $0.00 | |||
| 23 | 61001952 | PLUG BUTTON, EVAP. COVER | $0.00 | |||
| 24 | 61003198 | SLINGER, DISC | $0.00 | |||
| 25 | 61003253 | TUBE-INLET | 12001935 | $49.77 | ||
| 25 | 67877-1 | CLIP, FILL TUBE | $0.00 | |||
| 26 | 67579-26 | TUBE | WPB5705307 | $8.55 | ||
| 27 | 61003562 | CLIP, WATER LINE (ADHESIVE) | $0.00 | |||
| 28 | 61003254 | LIGHT-SWITCH | W11396033 | $29.43 | ||
| 29 | 68974-3 | RECEPTACLE, BULB | 12679501 | $0.00 | ||
| 30 | 31956-1 | BULB-LIGHT | W11679940 | $9.79 | ||
| 31 | 61002272 | SHIELD, LIGHT | $26.44 | |||
| 32 | 61003950 | TRIM, SHELF (FRT) | $0.00 | |||
| 33 | 61003951 | SHELF, FRZ. | $0.00 | |||
| 34 | 61003993 | BASKET, PIZZA | $0.00 | |||
| 35 | 61003205 | DIVERTER, AIR | $0.00 | |||
| 35 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 36 | 61003206 | SEAL, AIR DIVERTER | $0.00 | |||
| 37 | 61001161 | CLAMP | WP488878 | $9.91 | ||
| 38 | 61003841 | BASKET, FRZ. | $0.00 | |||
| 39 | 61003954 | BASKET, FRZ. (HALF) | $0.00 | |||
| 40 | 61003900 | DIVIDER, DISPENSER ENCLOSURE | $0.00 | |||
| 41 | 61001028 | SCREW | $0.00 | |||
| 41 | 68823-1 | SPACER, DIVIDER | $0.00 | |||
| 42 | 61003962 | DUCT, MULLION | $0.00 | |||
| 43 | 61003731 | WIRE HARNESS, FRZ. | $0.00 | |||
| 43 | 61003955 | WIRE HARNESS, FAN & HEATER | $0.00 |
*The price can change whitout warning
