Brand: Maytag
Model: MSD2756AEW - REFRIGERATOR

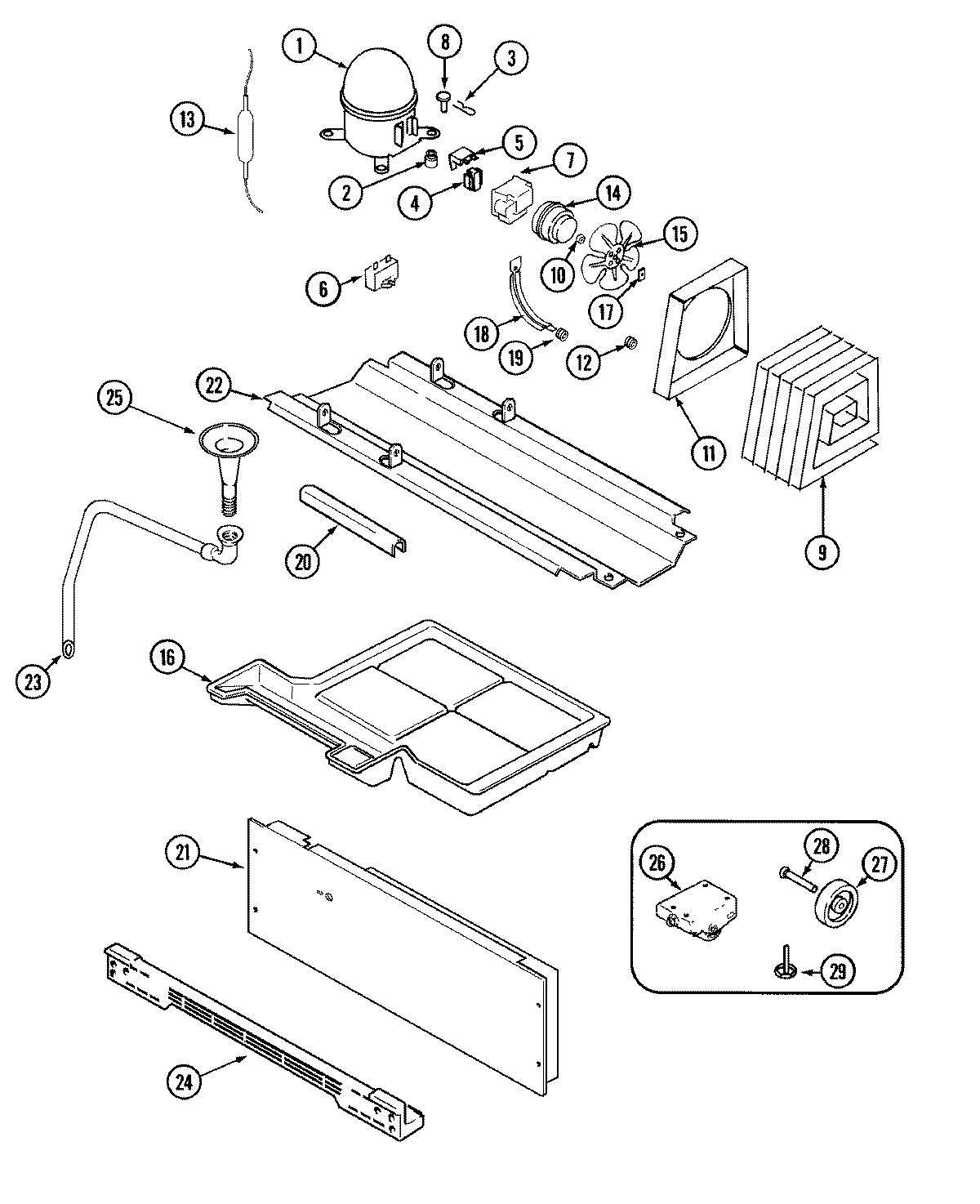

01 - COMPRESSOR
- 01 - COMPRESSOR
- 01 - COVER SHEET
- 02 - CONTROL PANEL PARTS
- 03 - BREAKER AND PARTITION
- 03 - FOUNTAIN
- 04 - BRG HSG/BRAKE PULLEY & PIVOT DOME
- 04 - FREEZER COMPARTMENT
- 05 - FREEZER INNER DOOR
- 06 - REFRIGERATOR DOOR PARTS
- 08 - DISPENSER FRONT
- 08 - FRESH FOOD OUTER DOOR
- 12 - SHELVES & ACCESSORIES
- 13 - WIRING INFORMATION
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 61002223 | WIRE HARNESS, COMPRESSOR | $0.00 | |||
| 1 | 12001486 | KIT COMPRESSOR | W10309995 | $599.44 | ||
| 2 | 17245-4 | GROMMET, COMPRESSOR | $0.00 | |||
| 3 | 61003099 | CLIP, COMPRESSOR | $0.00 | |||
| 4 | 61003115 | RELAY,STARTING-PTC | W10920279 | $89.11 | ||
| 5 | 61003116 | OVERLOAD | WP61006295 | $96.24 | ||
| 6 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 6 | 61002137 | CAPACITOR, RUN | $0.00 | |||
| 7 | 61002138 | COVER-TERM | WP61002138 | $8.11 | ||
| 8 | 52656-2 | PLUG, COMPRESSOR | $0.00 | |||
| 9 | 61003814 | CONDENSER | $0.00 | |||
| 9 | 61001885 | SCREW | WP489399 | $5.68 | ||
| 10 | 61001686 | WASHER, FAN BLADE | $0.00 | |||
| 11 | 61001941 | SHROUD, CONDENSER | $0.00 | |||
| 12 | 61002033 | GROMMET, CONDENSER TUBING | $0.00 | |||
| 13 | 13900-1 | UV DRIER-TUBE | WPW10143759 | $25.87 | ||
| 14 | 61002038 | CONDENSER FAN MOTOR 115V 2W | 833697 | $76.09 | ||
| 14 | 65275-33 | SCREW | $0.00 | |||
| 15 | 60683-1 | BLADE-COND FAN | WP12587601 | $97.85 | ||
| 16 | 65275-5 | SCREW | $0.00 | |||
| 16 | 61002649 | PAN, DRAIN | $0.00 | |||
| 17 | 19914 | NUT | WP486692 | $5.98 | ||
| 18 | 69181-1 | BRACKET, FAN MOTOR | $0.00 | |||
| 19 | 56933-1 | GROMMET- B | WP61004743 | $6.82 | ||
| 20 | 61001974 | ISOLATOR, CONDENSER | $0.00 | |||
| 21 | 61003923 | COVER, COMPRESSOR COMPARTMENT | $0.00 | |||
| 21 | 65275-5 | SCREW | $0.00 | |||
| 22 | 61003816 | PAN, COMPRESSOR MTG. | $0.00 | |||
| 22 | 61002407 | SCREW | WP67006715 | $6.81 | ||
| 23 | 53516-9 | CLAMP | $0.00 | |||
| 23 | 61003133 | HOSE, DRAIN | $0.00 | |||
| 24 | 61004096 | SCREW | WP8281227 | $9.37 | ||
| 24 | 61004053 | KICKPLATE (WHT) | $0.00 | |||
| 25 | 61004751 | TUBE, DRAIN | $0.00 | |||
| 26 | 400016-1 | SCREW | W11233072 | $12.16 | ||
| 26 | 61002066 | WHEEL ASSY. (FRT) | $0.00 | |||
| 27 | 61003826 | WHEEL (REAR) | WP61003826 | $7.03 | ||
| 28 | 61002104 | PIN,WHEEL | WP61002104 | $1.33 | ||
| 29 | 61002014 | LEG, LEVELING | $0.00 | |||
| 30 | 16009109 | MANUAL, USE & CARE | 61005032 | $0.00 | ||
| 31 | 16009103 | MANUAL, SERVICE SXS APD | $0.00 |
*The price can change whitout warning
