Brand: Maytag
Model: DE308 - ELECTRIC DRYER

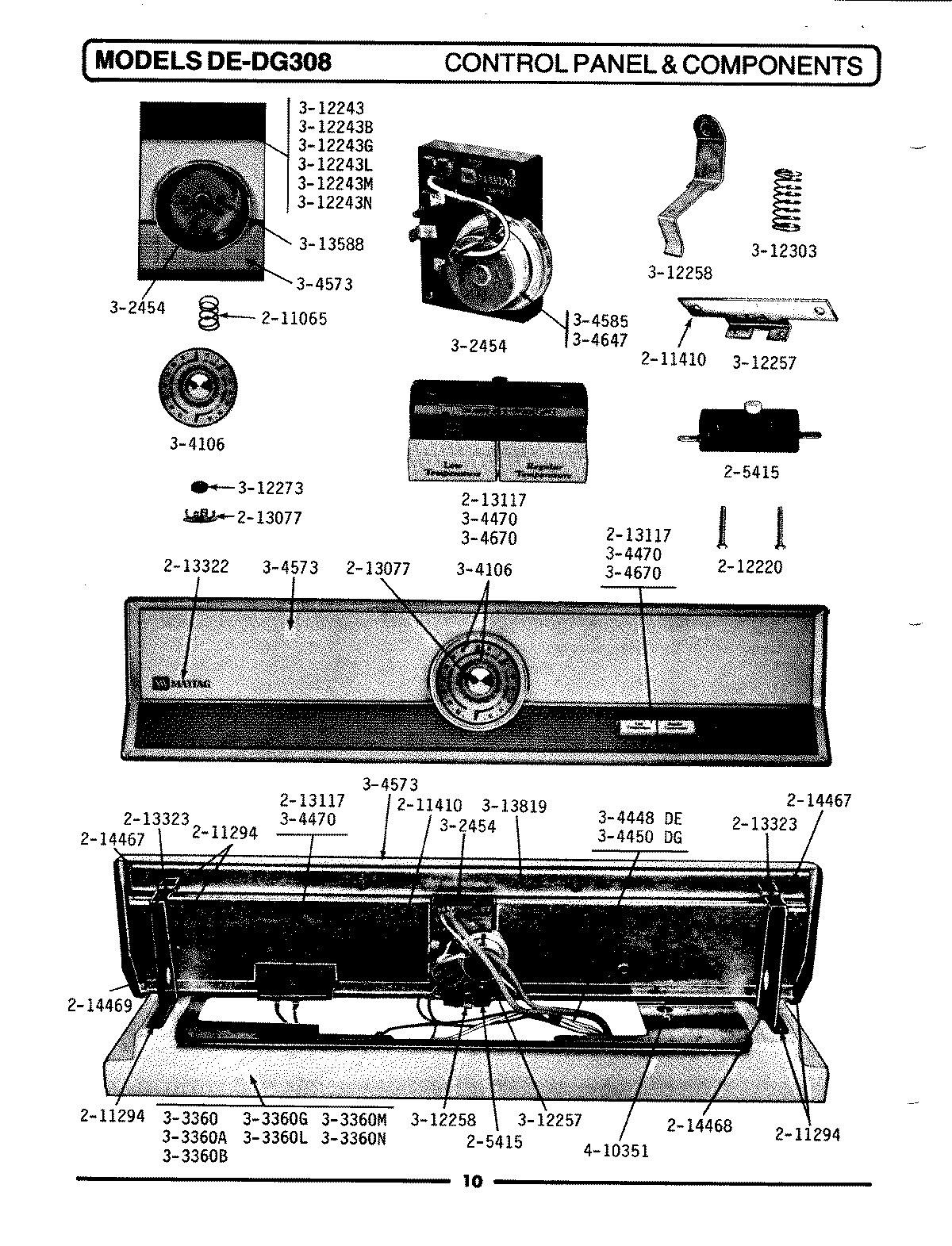

01 - CONTROL PANEL & COMPONENTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 205415 | LID SWITCH | W10820036 | $38.86 | ||
| 2 | 211065 | SPRING | WP211065 | $7.03 | ||
| 3 | 211294 | SCREW | WP90767 | $6.30 | ||
| 4 | 211410 | SCREW, HEX HD No.8 X 3/8 INCH | $0.00 | |||
| 5 | 212220 | SCREW-HEX HD TYPE B No.6 X 15/16 | $0.00 | |||
| 6 | 213077 | CAP FOR TIMER KNOB | $0.00 | |||
| 7 | 213117 | SCREW | WP67006908 | $6.46 | ||
| 8 | 213322 | MAYTAG DECAL | $0.00 | |||
| 9 | 213323 | FASTENER, EXHAUST DUCT KIT | $0.00 | |||
| 10 | 214467 | NUT | $0.00 | |||
| 11 | 214468 | BRACKET-LEFT HAND | $0.00 | |||
| 12 | 214469 | BRACKET-RIGHT HAND | $0.00 | |||
| 13 | Y302454 | TIMER | $0.00 | |||
| 14 | 303360 | TOP COVER-WHITE | $0.00 | |||
| 15 | 303360A | TOP COVER-DARK AVOCADO | $0.00 | |||
| 16 | 303360B | TOP COVER-DARK COPPERTONE | $0.00 | |||
| 17 | 303360G | TOP COVER-DARK GOLD | $0.00 | |||
| 18 | 303360L | TOP COVER-ALMOND | $0.00 | |||
| 19 | 303360M | TOP COVER-HARVEST WHEAT | $0.00 | |||
| 20 | 303360N | TOP COVER-FRESH AVOCADO | $0.00 | |||
| 21 | Y304106 | TIMER DIAL & KNOB, SUN-GLOW | $0.00 | |||
| 22 | 304448 | DISHRACK | W11169039 | $229.09 | ||
| 24 | 304470 | TEMPERATURE SWITCH | $0.00 | |||
| 25 | 304573 | SWITCH-LITE | WP4314961 | $65.14 | ||
| 26 | Y304585 | TIMER MOTOR RPR | $0.00 | |||
| 27 | 304647 | TIMER MOTOR | $0.00 | |||
| 28 | 304670 | BUTTON KIT | $0.00 | |||
| 29 | 312243 | CONTROL COVER-WHITE | $0.00 | |||
| 30 | 312243B | CONTROL COVER-DK COPPERTONE | $0.00 | |||
| 31 | 312243G | CONTROL COVER-DARK GOLD | $0.00 | |||
| 32 | 312243L | CONTROL COVER-ALMOND | $0.00 | |||
| 33 | 312243M | CONTROL COVER-HARVEST WHEAT | $0.00 | |||
| 34 | 312243N | CONTROL COVER-FRESH AVOCADO | $0.00 | |||
| 35 | 312257 | BRACKET | $0.00 | |||
| 36 | 312258 | ACTUATOR | $0.00 | |||
| 37 | 312273 | NUT | W10155650 | $12.22 | ||
| 38 | 312303 | SPRING | $0.00 | |||
| 39 | Y313588 | SCREW | WP488234 | $6.30 | ||
| 40 | 313819 | BACK-UP PLATE | $0.00 | |||
| 41 | 410351 | HARNESS RETAINER | $0.00 |
*The price can change whitout warning
