Brand: Maytag
Model: DE308 - ELECTRIC DRYER

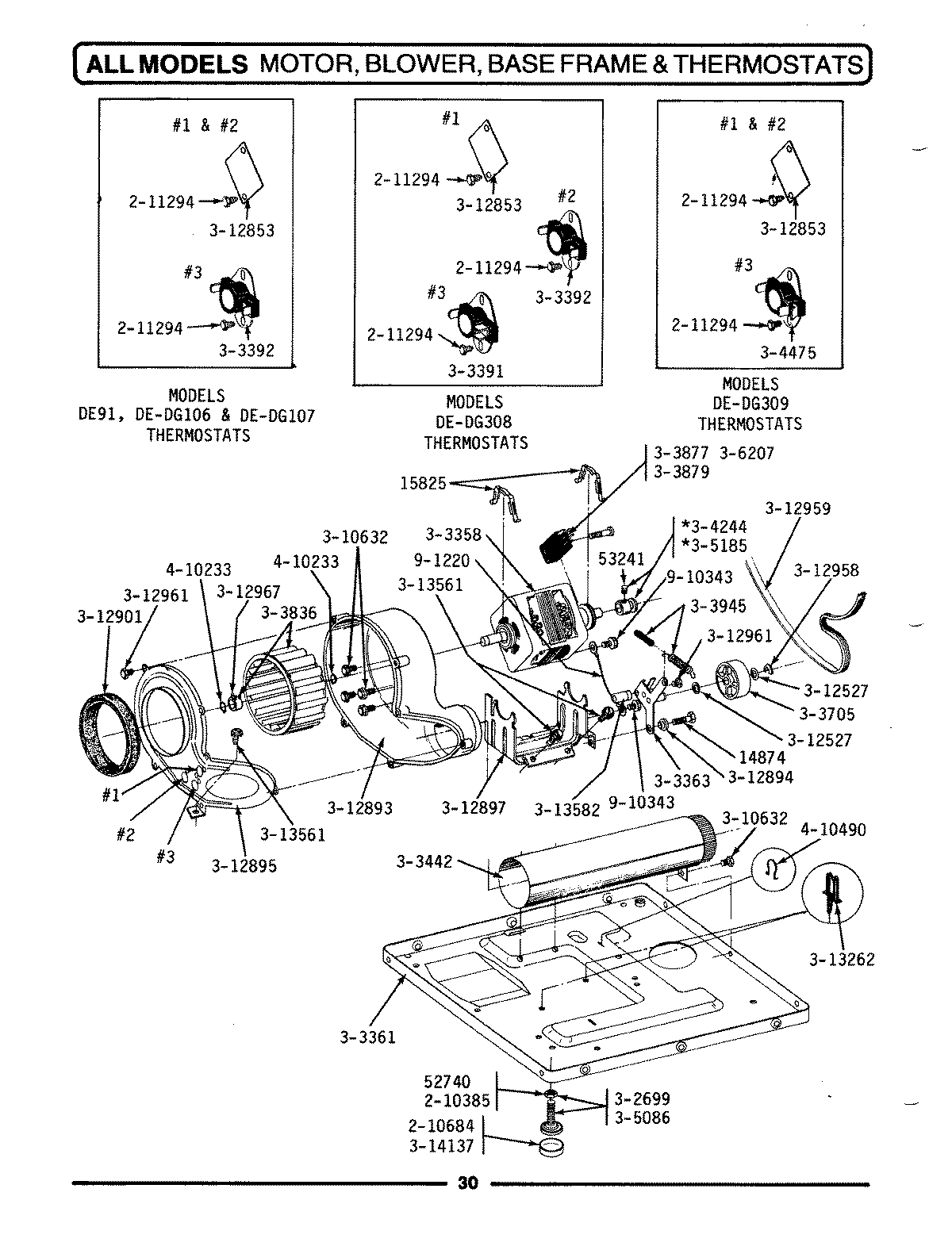

07 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
- 01 - CABINET PARTS
- 01 - CONTROL PANEL & COMPONENTS
- 03 - CASE, GEARING AND PLANETARY UNIT PARTS
- 03 - CHASSIS
- 04 - INLET DUCT & HEATER ASSEMBLY
- 06 - LINT SCREEN, TUMBLER (FRONT & BACK)
- 07 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
- MANIFOLD PARTS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y014874 | SCREW | WPY014874 | $6.32 | ||
| 2 | Y015825 | CLIP-MOTOR | WPY015825 | $19.49 | ||
| 3 | Y052740 | NUT | WP62739 | $5.68 | ||
| 4 | Y053241 | SET SCREW, PULLEY | $0.00 | |||
| 5 | 210385 | NUT- LOCK | WP210385 | $5.63 | ||
| 6 | 210684 | RUBBER FOOT | WP210684 | $13.15 | ||
| 7 | 211294 | SCREW | WP90767 | $6.30 | ||
| 8 | Y302699 | LEG | 22003428 | $11.10 | ||
| 9 | Y303358 | DRYER MOTOR (DOUBLE SHAFT) | W10410999 | $186.92 | ||
| 10 | Y303361 | BASE ASSY. | $0.00 | |||
| 11 | Y303363 | IDLER ARM & SHAFT | WP6-3033630 | $60.51 | ||
| 13 | 303392 | AJUSTABLE THERMOSTAT | WP694674 | $57.04 | ||
| 15 | Y303442 | EXHAUST DUCT ASSY. | $0.00 | |||
| 16 | Y303705 | IDLER PULLEY | WP6-3037050 | $14.99 | ||
| 17 | Y303836 | BLOWER WHEEL N/M | $36.97 | |||
| 18 | Y303877 | SWITCH, MOTOR | $0.00 | |||
| 19 | Y303879 | SWITCH, MOTOR START-PROD. | $0.00 | |||
| 20 | Y303945 | IDLER SPRING ASSEMBLY | $0.00 | |||
| 21 | Y304244 | PULLEY-MTR | WP6-3042440 | $46.03 | ||
| 24 | Y305086 | ADJUSTABLE LEG & NUT | WPY305086, W10176519 | $0.00 | ||
| 25 | Y305185 | PULLEY, MOTOR (W/SET SCREW) | $0.00 | |||
| 26 | 306207 | SWITCH, MOTOR START-PROD. | $0.00 | |||
| 27 | Y310632 | SCREW | $6.43 | |||
| 28 | Y312527 | IDLER WASHER | WPY312527 | $9.54 | ||
| 29 | Y312853 | COVER FOR THERMOSTAT OPENIN | $0.00 | |||
| 30 | Y312893 | HOUSING, BLOWER | $0.00 | |||
| 31 | Y312894 | SLEEVE | WP315772 | $9.80 | ||
| 32 | Y312895 | COVER FOR BLOWER----NA | $0.00 | |||
| 33 | 312897 | SUPPORT, MOTOR | $0.00 | |||
| 34 | Y312901 | SEAL,BLOWER | WPY312901 | $51.14 | ||
| 35 | 312958 | RETAINER RING, IDLER SHAFT | WP354987 | $10.08 | ||
| 36 | Y312959 | DRYER BELT 100" | WPY312959 | $25.54 | ||
| 37 | Y312961 | SCREW | WPW10116751 | $5.91 | ||
| 38 | 312967 | CLAMP | WP312967 | $9.80 | ||
| 39 | Y313262 | RETAINER, WIRE HARNESS | $0.00 | |||
| 40 | Y313561 | SCREW | WPY313561 | $5.09 | ||
| 41 | Y313582 | SPACER | WPW10116756 | $36.89 | ||
| 42 | Y314137 | PAD | WPY314137 | $15.14 | ||
| 43 | 410233 | RING-RETAINER | WP9703438 | $3.20 | ||
| 44 | 410490 | SPRING, WIRE HARNESS | $0.00 | |||
| 45 | 901220 | WIRE, GROUND | $0.00 | |||
| 46 | 910343 | SCREW | WP488234 | $6.30 |
*The price can change whitout warning
