Brand: Maytag
Model: LA610 - WASHER

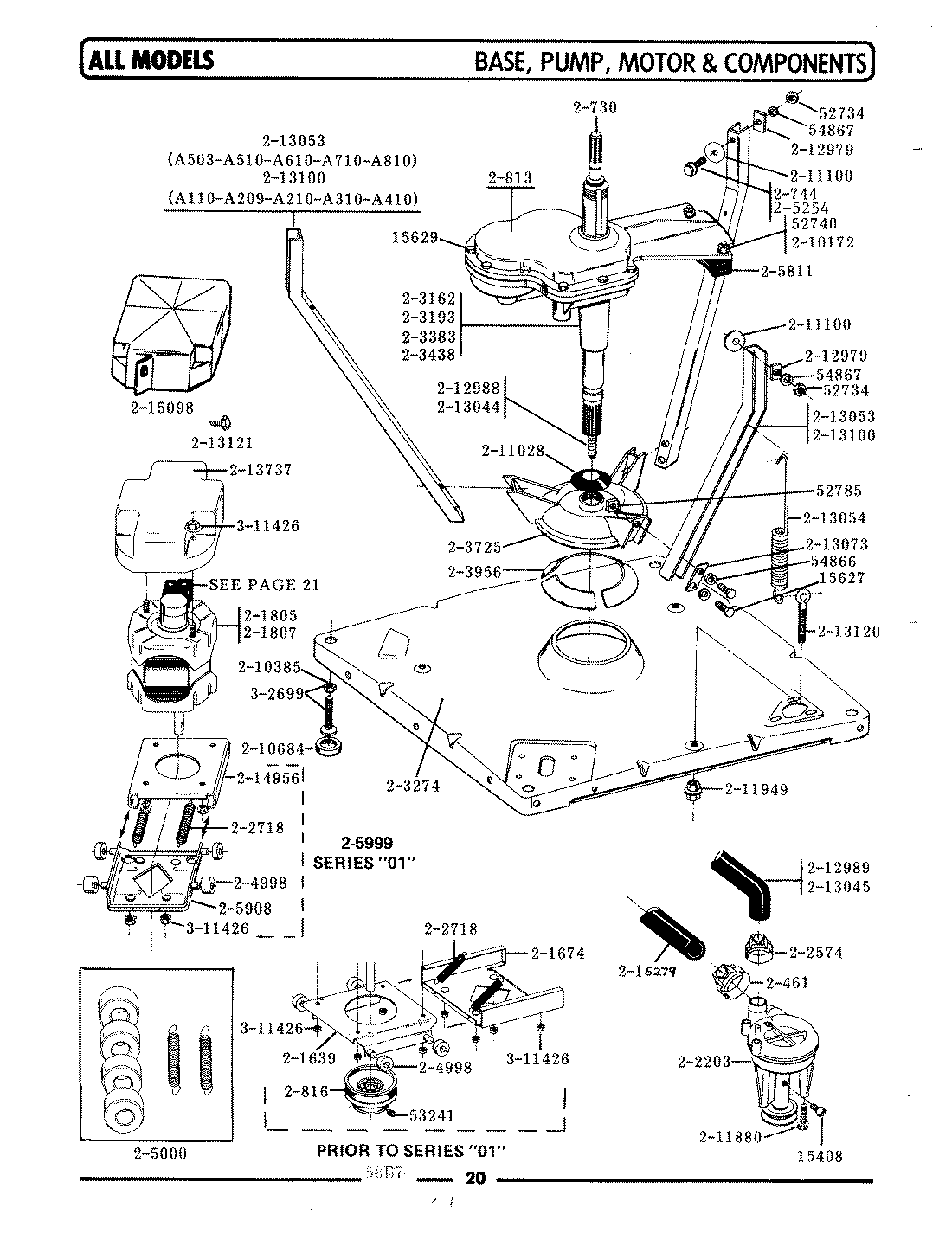

01 - BASE, PUMP, MOTOR & COMPONENTS
- 01 - BASE, PUMP, MOTOR & COMPONENTS
- 01 - BODY
- 01 - COVER SHEET
- 03 - CLUTCH, BRAKE & BELTS
- 05 - TOP COVER, CONSOLE & LID SWITCH
- 06 - TRANSMISSIONS
- 07 - TUB, AGITATOR, MOUNTING STEM & SEAL
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y015408 | SCREW | 22003235 | $7.53 | ||
| 2 | Y015627 | SCREW | $7.53 | |||
| 3 | Y015629 | BOLT, GRINDING CHAMBER-DRAI | $0.00 | |||
| 4 | Y052734 | NUT | $0.00 | |||
| 5 | Y052740 | NUT | WP62739 | $5.68 | ||
| 6 | Y052785 | NUT,BRACE TO DAMPER | $0.00 | |||
| 7 | Y053241 | SET SCREW, PULLEY | $0.00 | |||
| 8 | Y054866 | LOCK WASHER | $0.00 | |||
| 9 | Y054867 | WASHER, LOCK | $0.00 | |||
| 10 | 200461 | CLAMP | WP285655 | $5.88 | ||
| 11 | 200730 | AGITATOR SHAFT | $0.00 | |||
| 12 | 200744 | BOLT | W10175939 | $6.32 | ||
| 13 | 200750 | GEAR CASE COVER | $0.00 | |||
| 14 | 200813 | GEAR CASE COVER ASSEMBLY | $0.00 | |||
| 15 | 200816 | PULLEY, MOTOR (W/SET SCREW) | $0.00 | |||
| 16 | 201639 | UPPER MOTOR MOUNT | $0.00 | |||
| 17 | 201674 | LOWER MOTOR MOUNT | $11.69 | |||
| 18 | 201805 | MAYTAG WASHER MOTOR 1/2HP 1S | 12002351 | $240.09 | ||
| 20 | 202203 | MAYTAG WASHER PUMP | WP6-2022030 | $126.58 | ||
| 21 | 202574 | CLAMP | WP3367052 | $0.00 | ||
| 22 | 202718 | SPRING | $10.71 | |||
| 23 | 203193 | GEAR HOUSING W/STUDS & TUBE | $0.00 | |||
| 24 | 203274 | BASE WITH DAMPER PADS | $0.00 | |||
| 25 | 203723 | POWER UNIT W/GEARS | $0.00 | |||
| 26 | 203725 | DAMPER W/BOLT & CLIP | $0.00 | |||
| 27 | 203956 | DAMPER PADS WITH POLY LUBE | $50.68 | |||
| 28 | 204437 | POWER UNIT WITH FAST GEARS | $0.00 | |||
| 29 | 204807 | GRND.WIRE,SUPP.PLTE TO TOP CVR | $0.00 | |||
| 30 | 204998 | ROLLER SPRING KIT MAYTAG | 205000 | $66.14 | ||
| 31 | 205000 | ROLLER SPRING KIT MAYTAG | $66.14 | |||
| 32 | 205131 | SWITCH, MOTOR START | $0.00 | |||
| 33 | 205132 | SWITCH, MOTOR START | $0.00 | |||
| 34 | 205133 | MOTOR EXTERNAL START SWITCH | $0.00 | |||
| 35 | 205134 | SWITCH | $68.29 | |||
| 36 | 205811 | COUNTERWEIGHT | $0.00 | |||
| 37 | 205908 | LOWER MOTOR MOUNT | $0.00 | |||
| 38 | 205999 | MOTOR MOUNT ASSM COMPLETE | $0.00 | |||
| 39 | 210172 | LOCK WASHER | $0.00 | |||
| 40 | 210385 | NUT- LOCK | WP210385 | $5.63 | ||
| 41 | 210684 | RUBBER FOOT | WP210684 | $13.15 | ||
| 42 | 211028 | DEFLECTOR,WATER (DRIVE TUBE) | $0.00 | |||
| 43 | 211100 | WASHER, CUSHION | $0.00 | |||
| 44 | 211880 | SCREW | WPY014874 | $6.32 | ||
| 45 | 211949 | ADJUSTING NUT | WP211949 | $5.34 | ||
| 46 | 212979 | WASHER, TUB BRACE | $0.00 | |||
| 47 | 213044 | CENTER SHAFT | $0.00 | |||
| 48 | 213045 | DRAIN HOSE | WP213045 | $45.40 | ||
| 49 | 213053 | BRACE, TUB | $0.00 | |||
| 50 | 213054 | CENTERING SPRING - 3 USED | $0.00 | |||
| 51 | 213073 | WASHER, DOUBLE | $0.00 | |||
| 52 | 213120 | BOLT | W11129403 | $12.16 | ||
| 53 | 213121 | SCREW | WPW10346892 | $6.33 | ||
| 54 | 213737 | MOTOR SHIELD - POLY | $0.00 | |||
| 55 | 215279 | HOSE, DRAIN | WP22003410 | $45.23 | ||
| 56 | 214956 | MOUNT, MOTOR/UPPER | $0.00 | |||
| 57 | 215098 | SHIELD, MOTOR | $0.00 | |||
| 58 | Y302699 | LEG | 22003428 | $11.10 | ||
| 59 | Y311426 | NUT | WP3400029 | $6.06 |
*The price can change whitout warning
