Brand: Maytag
Model: LA610 - WASHER

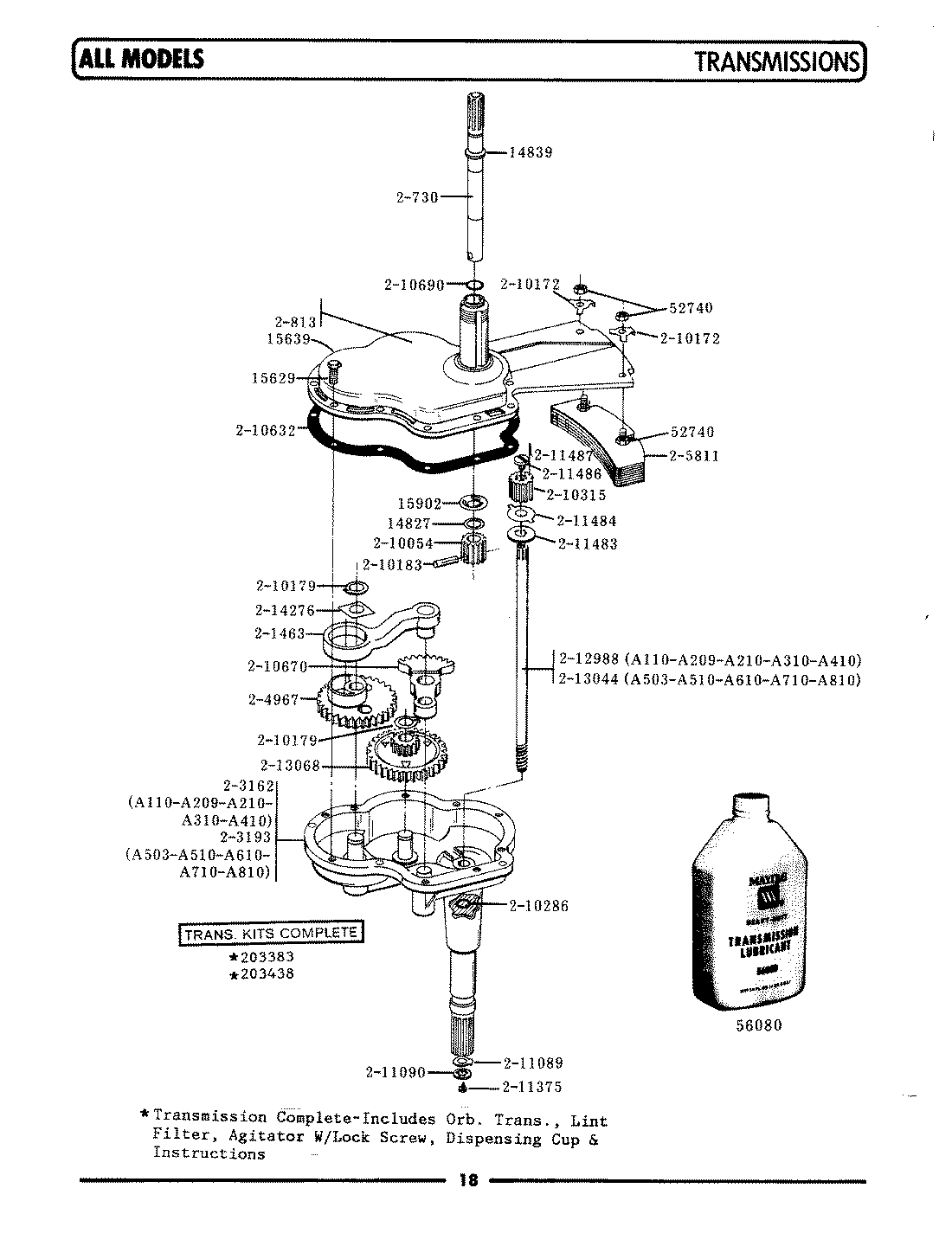

06 - TRANSMISSIONS
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | Y014827 | WASHER-CENTER SHAFT | $0.00 | |||
| 2 | Y014839 | COLLAR-DRIVE SHAFT | $0.00 | |||
| 3 | Y015629 | BOLT, GRINDING CHAMBER-DRAI | $0.00 | |||
| 4 | 015639 | DOWEL PIN | $0.00 | |||
| 5 | Y015902 | SPRING FOR AGITATOR | $0.00 | |||
| 6 | Y052740 | NUT | WP62739 | $5.68 | ||
| 7 | Y056080 | TRANS LUBE - AUTO, 34 OZ. | $0.00 | |||
| 8 | 200730 | AGITATOR SHAFT | $0.00 | |||
| 9 | 200813 | GEAR CASE COVER ASSEMBLY | $0.00 | |||
| 10 | 201463 | PITMAN WITH WRIST PIN | 4161540 | $0.00 | ||
| 11 | 203193 | GEAR HOUSING W/STUDS & TUBE | $0.00 | |||
| 12 | 203438 | TRANS & CENTER ASSM. LG TUB | 203438R | $0.00 | ||
| 13 | 204967 | GEAR KIT-POWER FIN AGITATOR | $0.00 | |||
| 14 | 205811 | COUNTERWEIGHT | $0.00 | |||
| 15 | 210054 | PINION | $0.00 | |||
| 16 | 210172 | LOCK WASHER | $0.00 | |||
| 17 | 210179 | RETAINING RING | $0.00 | |||
| 18 | 210183 | GROOV-PIN, 1/4 X 1-1/4 | $0.00 | |||
| 19 | 210286 | SEAL | WP210286 | $1.33 | ||
| 20 | 210315 | PINION | $0.00 | |||
| 21 | 210632 | TRANSMISSION GASKET | 22210632 | $13.20 | ||
| 22 | 210670 | SEGMENT | $0.00 | |||
| 23 | 210690 | SEAL, RUBBER | $0.00 | |||
| 24 | 211089 | STOP LUG | WP211089 | $10.04 | ||
| 25 | 211090 | LOCK WASHER | WP22003555 | $18.31 | ||
| 26 | 211375 | SCREW #8-32 X 1/2 | WP912618 | $6.32 | ||
| 27 | 211483 | WASHER | WP6-2114830 | $6.28 | ||
| 28 | 211484 | LUG WASHER | $0.00 | |||
| 29 | 211486 | SCREW, 3/8-16 X 1/2 INCH | $0.00 | |||
| 30 | 211487 | GROOV-PIN | $0.00 | |||
| 31 | 213044 | CENTER SHAFT | $0.00 | |||
| 32 | 213068 | INTERMEDIATE GEAR | $0.00 | |||
| 33 | 214276 | WASHER FOR GEARS | $0.00 |
*The price can change whitout warning
