Brand: Whirlpool
Model: MET3800TW0 - AUTOMATIC WASHER

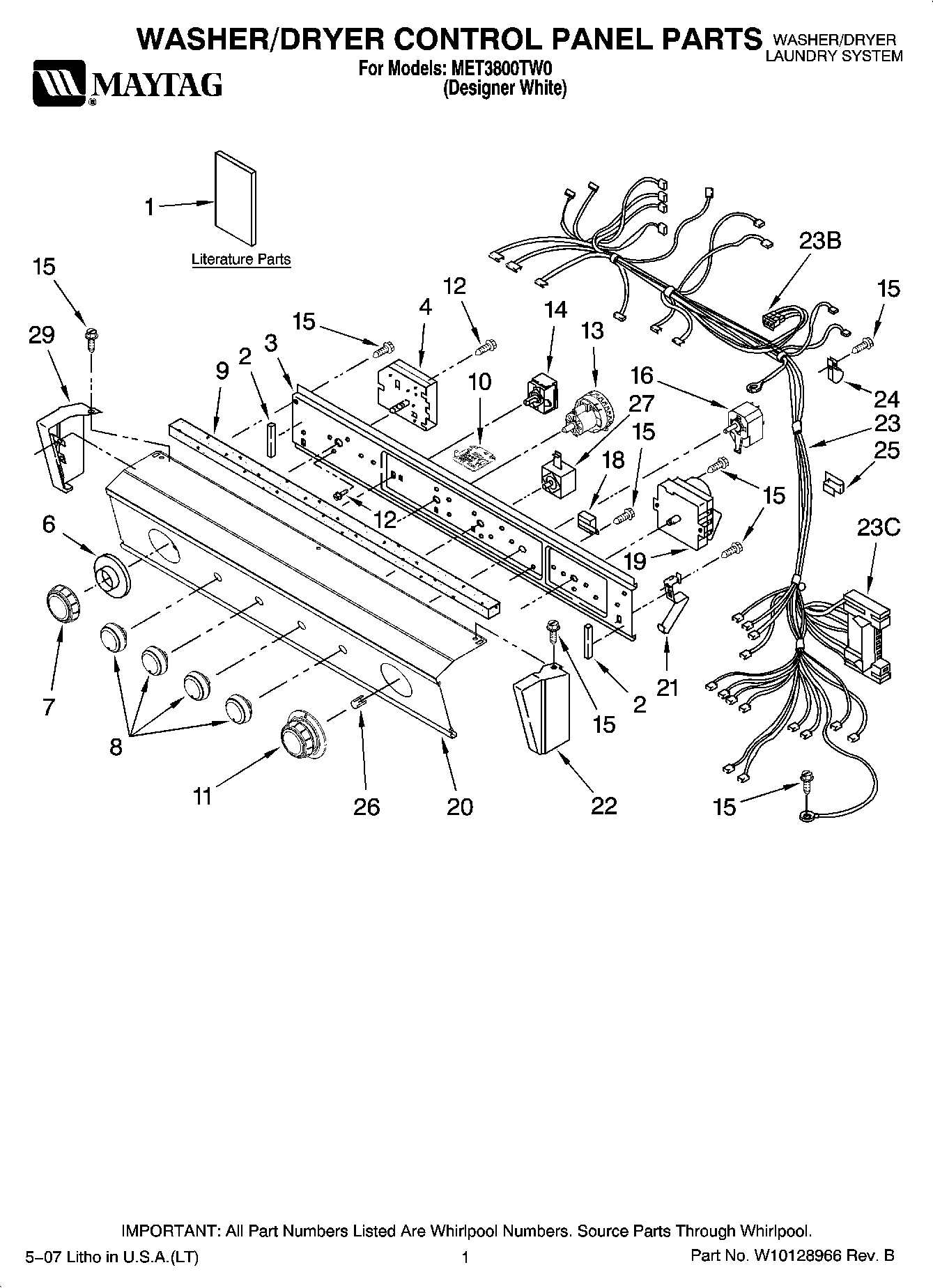

01 - WASHER/DRYER CONTROL PANEL PARTS 1
- 01 - 34526 TRANSMISSION ASSY
- 01 - DOOR AND PANEL PARTS
- 01 - DOOR PANEL PARTS
- 01 - WASHER/DRYER CONTROL PANEL PARTS
- 01 - WASHER/DRYER CONTROL PANEL PARTS 1
- 02 - DRYER FRONT PANEL AND DOOR PARTS
- 02 - DRYER FRONT PANEL AND DOOR PARTS 1
- 02 - REFRIGERATOR LINER PARTS
- 02 - TOP AND CABINET PARTS
- 02 - UNIT COMPARTMENT & SYSTEM
- 03 - DOOR AND LATCH PARTS
- 03 - DRYER CABINET AND MOTOR PARTS
- 03 - DRYER CABINET AND MOTOR PARTS 1
- 03 - SECTION
- 04 - DRYER BULKHEAD PARTS
- 04 - DRYER BULKHEAD PARTS 1
- 05 - DRYER SUPPORT AND WASHER HARNESS PARTS
- 05 - DRYER SUPPORT AND WASHER HARNESS PARTS 1
- 05 - FREEZER LINER
- 05 - INTERNAL MICROWAVE PARTS
- 05 - MOTOR DRIVE
- 05 - SECTION
- 06 - FREEZER DOOR PARTS
- 06 - PUMP AND MOTOR PARTS
- 06 - WASHER TOP AND LID PARTS
- 06 - WASHER TOP AND LID PARTS 1
- 07 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
- 07 - WASHER CABINET PARTS
- 07 - WASHER CABINET PARTS 1
- 08 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
- 08 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS 1
- 09 - MACHINE BASE PARTS
- 09 - MACHINE BASE PARTS 1
- 10 - AGITATOR, BASKET AND TUB PARTS
- 10 - AGITATOR, BASKET AND TUB PARTS 1
- 10 - THERMOSTATS
- 11 - GEARCASE PARTS
- 12 - BRAKE AND DRIVE TUBE PARTS
- 13 - WATER SYSTEM PARTS
- 13 - WATER SYSTEM PARTS 1
- 14 - MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED)
- 14 - MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED) 1
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W10118289 | Installation Instructions | $0.00 | |||
| 1 | W10117754 | Use & Care Guide | $0.00 | |||
| 1 | W10117755 | Sheet, Cycle Feature | $0.00 | |||
| 1 | W10114285 | Wire Diagram | $0.00 | |||
| 1 | W10118320 | Energy Guide | $0.00 | |||
| 2 | 3390688 | BUMPER | $8.01 | |||
| 3 | 8528583 | BRACKET | W10732070 | $139.44 | ||
| 4 | W10124193 | TIMER | WPW10124193 | $330.46 | ||
| 6 | W10112571 | TIMER SKIRT ASM | $40.73 | |||
| 7 | W10110033 | TIMER-KNOB | WPW10110033 | $47.77 | ||
| 8 | W10112572 | KNOB | WPW10110035 | $48.76 | ||
| 9 | 8521965 | GASKET | $67.24 | |||
| 10 | 8558178 | CONTROL-DRY | WPW10476828 | $299.26 | ||
| 11 | W10112573 | KNOB | WPW10110036 | $50.57 | ||
| 12 | 3400808 | SCREW | W10915367 | $6.02 | ||
| 13 | W10112533 | Switch, Pressure | $0.00 | |||
| 14 | W10114118 | SWITCH - ROTARY ATC | W11103599 | $178.98 | ||
| 15 | 90767 | SCREW | WP90767 | $6.30 | ||
| 16 | W10117655 | PTS REL W/SWB TWIST MOUNT | WPW10117655 | $95.79 | ||
| 18 | 694419 | BUZZER | WP694419 | $103.57 | ||
| 19 | W10113816 | TIMER | WPW10113816 | $282.94 | ||
| 20 | W10124093 | Panel, Control | $0.00 | |||
| 21 | 3389453 | HINGE | $69.51 | |||
| 22 | 3389456 | ENDCAP | $55.24 | |||
| 23 | W10128115 | Harness - Dryer | $0.00 | |||
| 23B | 2154470 | Receptacle, | $0.00 | |||
| 23C | 3395683 | CONNECTOR | $43.54 | |||
| 24 | 3390604 | CLAMP | 7111P002-60 | $5.08 | ||
| 25 | 3390422 | CLIP | W10134185 | $67.10 | ||
| 26 | 8536939 | SPRING CLIP KNOB | WP8536939 | $7.03 | ||
| 27 | 3405156 | SWITCH | WP3405156 | $118.05 | ||
| 29 | 3389464 | End Cap (LH) | $0.00 |
*The price can change whitout warning
