Brand: Whirlpool
Model: MET3800TW0 - AUTOMATIC WASHER
09 - MACHINE BASE PARTS 1
- 01 - 34526 TRANSMISSION ASSY
- 01 - DOOR AND PANEL PARTS
- 01 - DOOR PANEL PARTS
- 01 - WASHER/DRYER CONTROL PANEL PARTS
- 01 - WASHER/DRYER CONTROL PANEL PARTS 1
- 02 - DRYER FRONT PANEL AND DOOR PARTS
- 02 - DRYER FRONT PANEL AND DOOR PARTS 1
- 02 - REFRIGERATOR LINER PARTS
- 02 - TOP AND CABINET PARTS
- 02 - UNIT COMPARTMENT & SYSTEM
- 03 - DOOR AND LATCH PARTS
- 03 - DRYER CABINET AND MOTOR PARTS
- 03 - DRYER CABINET AND MOTOR PARTS 1
- 03 - SECTION
- 04 - DRYER BULKHEAD PARTS
- 04 - DRYER BULKHEAD PARTS 1
- 05 - DRYER SUPPORT AND WASHER HARNESS PARTS
- 05 - DRYER SUPPORT AND WASHER HARNESS PARTS 1
- 05 - FREEZER LINER
- 05 - INTERNAL MICROWAVE PARTS
- 05 - MOTOR DRIVE
- 05 - SECTION
- 06 - FREEZER DOOR PARTS
- 06 - PUMP AND MOTOR PARTS
- 06 - WASHER TOP AND LID PARTS
- 06 - WASHER TOP AND LID PARTS 1
- 07 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
- 07 - WASHER CABINET PARTS
- 07 - WASHER CABINET PARTS 1
- 08 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
- 08 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS 1

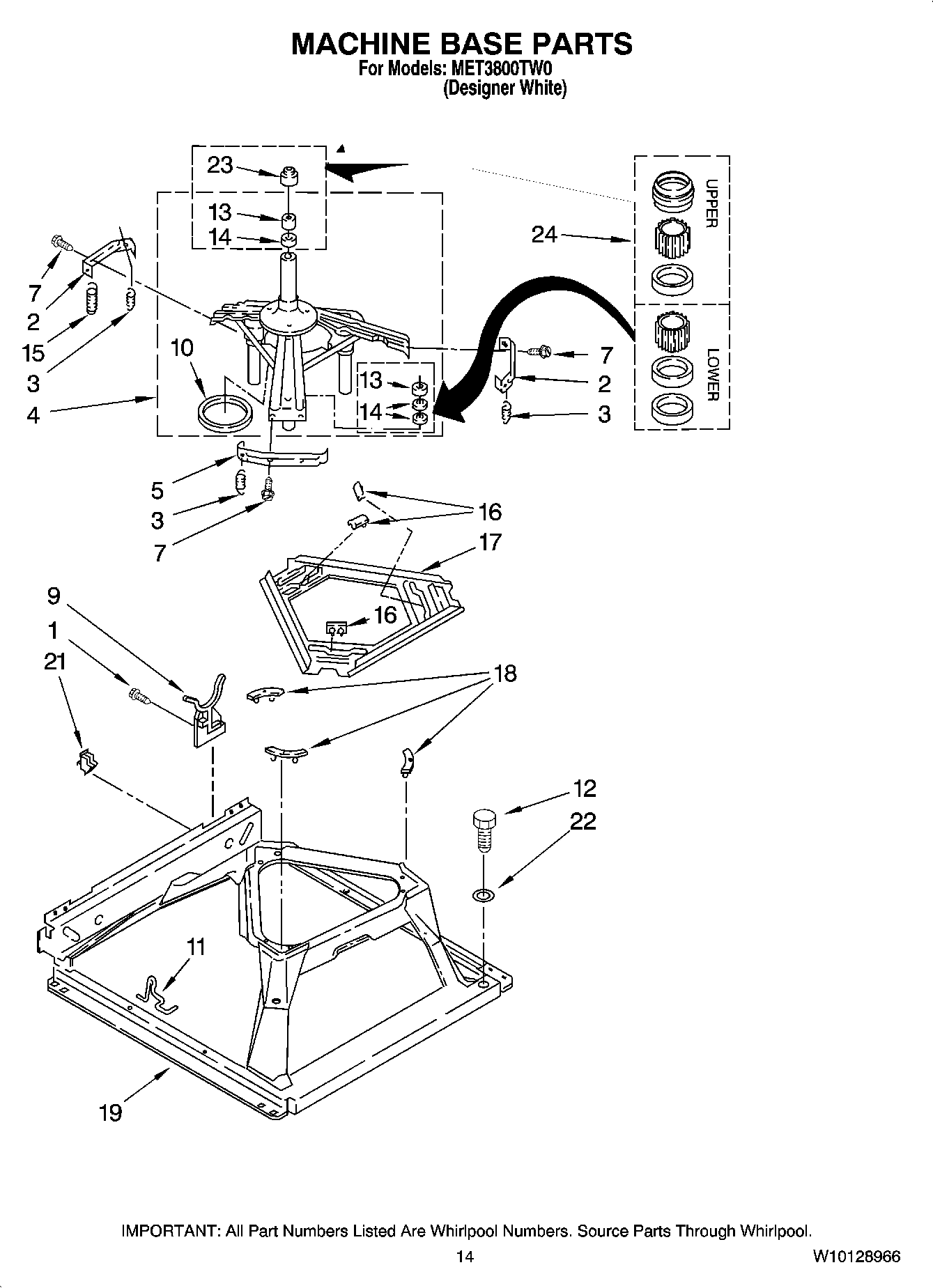

- 09 - MACHINE BASE PARTS
- 09 - MACHINE BASE PARTS 1
- 10 - AGITATOR, BASKET AND TUB PARTS
- 10 - AGITATOR, BASKET AND TUB PARTS 1
- 10 - THERMOSTATS
- 11 - GEARCASE PARTS
- 12 - BRAKE AND DRIVE TUBE PARTS
- 13 - WATER SYSTEM PARTS
- 13 - WATER SYSTEM PARTS 1
- 14 - MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED)
- 14 - MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED) 1
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 343641 | SCREW | WP681414 | $5.80 | ||
| 2 | 64067 | BRACKET | WP64067 | $6.27 | ||
| 3 | 63907 | SPRING | WP63907 | $4.61 | ||
| 4 | 8575214 | SUPPORT | 280184 | $267.55 | ||
| 5 | 64065 | Bracket, Spring Outer (L.F.) | WP64065 | $0.00 | ||
| 7 | 3400076 | SCREW | W10846509 | $6.15 | ||
| 9 | 3350506 | RETAINER | $12.03 | |||
| 10 | 63134 | RING | WP63134 | $7.03 | ||
| 11 | 63806 | RETAINER | WPW10145155 | $4.00 | ||
| 12 | 3400501 | SCREW | WP3400501 | $5.09 | ||
| 13 | 8546455 | BEARING | WP8546455 | $24.42 | ||
| 14 | 357409 | SEAL | W11095997 | $20.16 | ||
| 15 | 388492 | TENSION SPRING | WPW10250667, WG02F09247 | $7.12 | ||
| 16 | 62568 | PAD-SUSPEN | 285219 | $21.10 | ||
| 17 | 3946509 | SKATE PLATE | WP3946509 | $151.82 | ||
| 18 | 3363660 | PAD-SUSPEN. | 285744 | $15.10 | ||
| 19 | 3349343 | Base Assembly (Includes Illus. 11 & 18) | $0.00 | |||
| 21 | 3349749 | RESTRAINER | $10.62 | |||
| 22 | 3349340 | Washer (2) | $0.00 | |||
| 23 | 8577376 | CENTER SEAL | WP8577376 | $4.42 | ||
| 24 | 285203 | D/D CENTER POST BEARING KIT | $93.35 |
*The price can change whitout warning
