Brand: Maytag
Model: GC2228EED9 - REFRIGERATOR

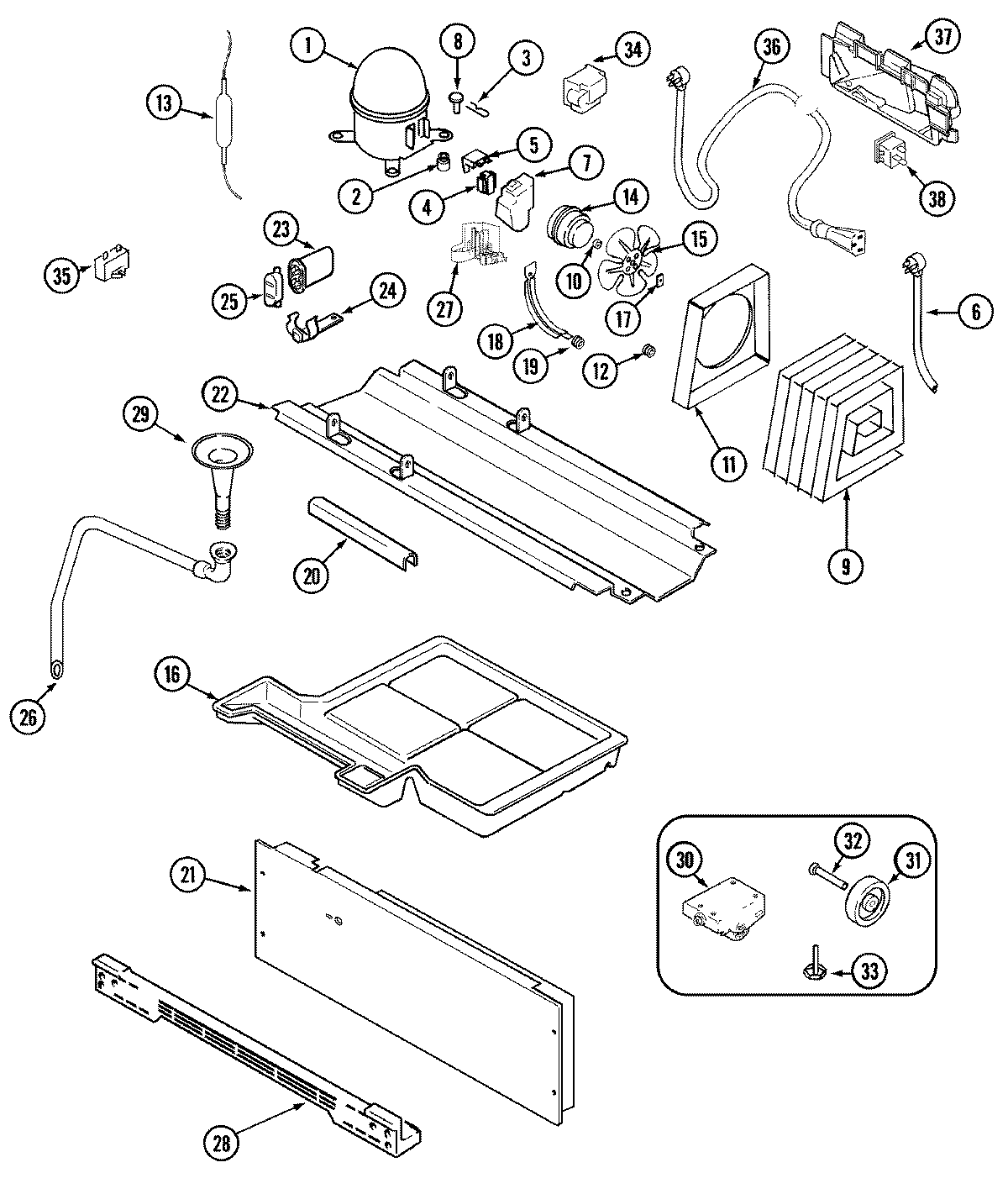

01 - COMPRESSOR (GC2228EED9-REV 17)
- 01 - COMPRESSOR (GC2228EED9-REV 17)
- 02 - COMPRESSOR (GC2228EEDB/W/3/5/9-REV 10)
- 04 - DRAWER PARTS
- 04 - DRYER CABINET AND MOTOR PARTS
- 04 - FOUNTAIN
- 06 - DOOR (LDE7500ACE,ADE) & (LDG)
- 06 - FREEZER INNER DOOR
- 06 - REFRIGERATOR DOOR PARTS
- 08 - FRESH FOOD INNER DOOR
- 09 - FRESH FOOD OUTER DOOR (GC2228EED3/5/9)
- 10 - ICE BIN (REV 10)
- 11 - ICE BIN (REV 11)
- 13 - SHELVES & ACCESSORIES
- 14 - WIRING INFORMATION
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12001961 | KIT, COMPRESSOR | $0.00 | |||
| 1 | 61005615 | WIRE HARNESS, COMPRESSOR | $0.00 | |||
| 2 | 61005241 | GROMMET | WP4387558 | $6.06 | ||
| 3 | 61003099 | CLIP, COMPRESSOR | $0.00 | |||
| 4 | 61005620 | CLIP, RELAY/OVERLOAD ASSY.-NA | $0.00 | |||
| 4 | 61005616 | RELAY/OVERLOAD ASSY. | 12002784 | $142.41 | ||
| 5 | 61002104 | PIN,WHEEL | WP61002104 | $1.33 | ||
| 6 | 61004874 | CORD, POWER (EUROPE) | $0.00 | |||
| 7 | 61002014 | LEG, LEVELING | $0.00 | |||
| 7 | 69810-1 | CAP, LEVELING LEG | $0.00 | |||
| 8 | 52656-2 | PLUG, COMPRESSOR | $0.00 | |||
| 9 | 61003814 | CONDENSER | $0.00 | |||
| 9 | 61004378 | SCREW | WP489399 | $5.68 | ||
| 10 | 61001686 | WASHER, FAN BLADE | $0.00 | |||
| 11 | 61001941 | SHROUD, CONDENSER | $0.00 | |||
| 12 | 61002033 | GROMMET, CONDENSER TUBING | $0.00 | |||
| 13 | 13900-1 | UV DRIER-TUBE | WPW10143759 | $25.87 | ||
| 14 | 65275-33 | SCREW | $0.00 | |||
| 14 | 61002084 | MOTOR, CONDENSER FAN | $0.00 | |||
| 15 | 60683-1 | BLADE-COND FAN | WP12587601 | $97.85 | ||
| 16 | 61004095 | PAN, DRAIN | $0.00 | |||
| 16 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 17 | 19914 | NUT | WP486692 | $5.98 | ||
| 18 | 61001414 | BRACKET, FAN MOTOR | $0.00 | |||
| 19 | 56933-1 | GROMMET- B | WP61004743 | $6.82 | ||
| 20 | 61001974 | ISOLATOR, CONDENSER | $0.00 | |||
| 21 | 65275-50 | SCREW | WP489069 | $6.32 | ||
| 21 | 61004154 | COVER, COMPRESSOR COMPARTMENT | $0.00 | |||
| 22 | 61002407 | SCREW | WP67006715 | $6.81 | ||
| 22 | 61005269 | PAN, COMPRESSOR MTG. | $0.00 | |||
| 23 | 61004637 | CAPACITOR | $48.10 | |||
| 23 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 24 | 53516-9 | CLAMP | $0.00 | |||
| 24 | 61003133 | HOSE, DRAIN | $0.00 | |||
| 25 | 61004751 | TUBE, DRAIN | $0.00 | |||
| 26 | 61004055 | KICKPLATE (BLK) | $0.00 | |||
| 26 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 27 | 61004875 | BOX, INLET | $0.00 | |||
| 27 | 61002984 | SCREW | $0.00 | |||
| 28 | 61004876 | INLET, POWER CORD | $0.00 | |||
| 29 | 400017-1 | SCREW | WP489478 | $6.50 | ||
| 29 | 61005232 | WHEEL ASSY. (FRT) | $0.00 | |||
| 30 | 61003826 | WHEEL (REAR) | WP61003826 | $7.03 | ||
| 31 | 12001550 | YODER LOOP HTR(230V)27,29,23CD | $0.00 | |||
| 32 | 61003597 | MANUAL, USE & CARE | $0.00 | |||
| 33 | 16009103 | MANUAL, SERVICE SXS APD | $0.00 |
*The price can change whitout warning
