Brand: Maytag
Model: JGRP548WP02 - RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE, 48 INCH

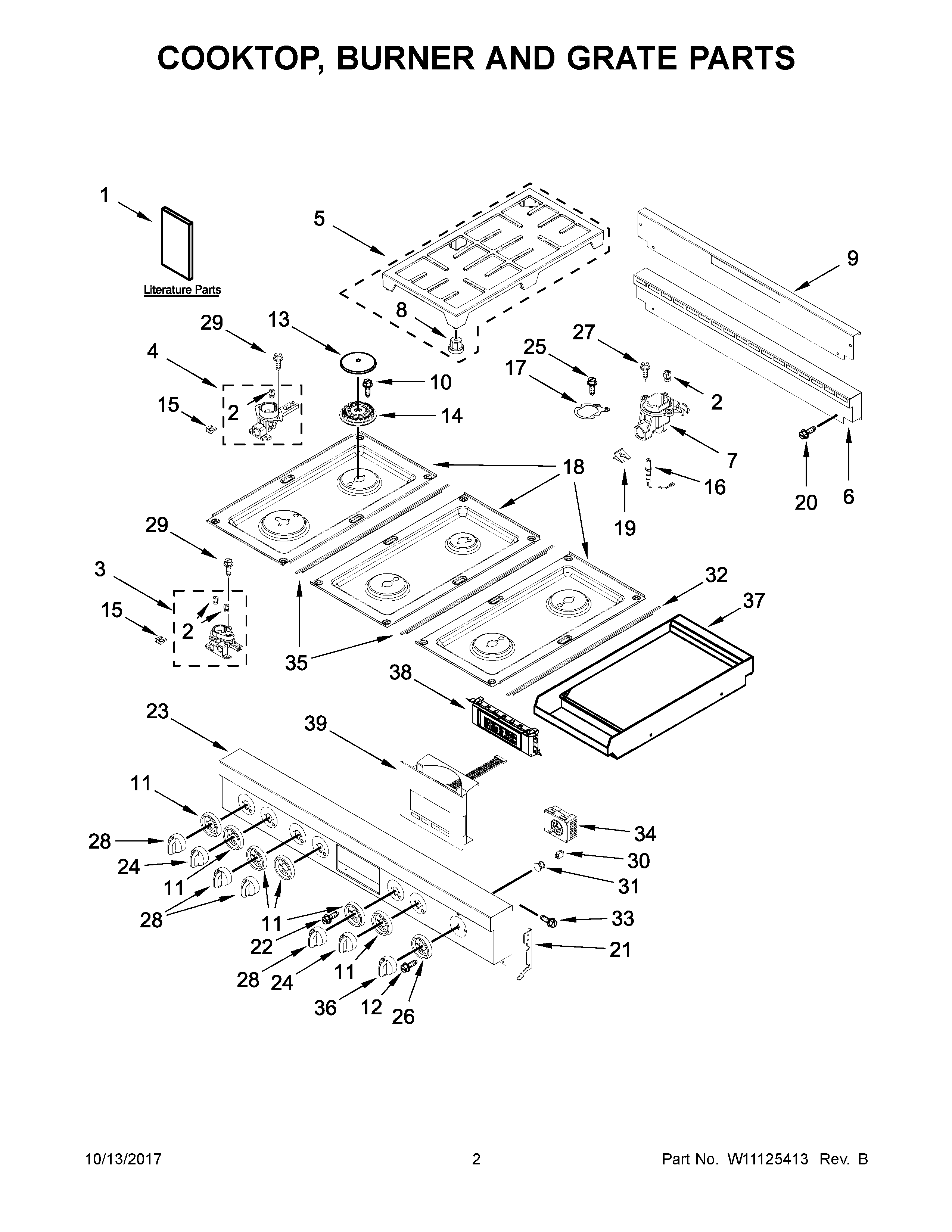

02 - COOKTOP, BURNER AND GRATE PARTS
- 01 - COVER SHEET
- 02 - COOKTOP, BURNER AND GRATE PARTS
- 03 - BURNER BOX, GAS VALVES AND SWITCHES
- 04 - 48" CHASSIS PARTS
- 05 - 30" OVEN PARTS
- 06 - 18" OVEN PARTS
- 07 - VENTING PARTS
- 08 - 30" OVEN DOOR PARTS
- 09 - 18" OVEN DOOR PARTS
- 10 - 30" INTERNAL OVEN PARTS
- 11 - 18" INTERNAL OVEN PARTS
- 12 - OPTIONAL PARTS (NOT INCLUDED)
| Plan number | Part Number | Description | Replacement | Price | ||
|---|---|---|---|---|---|---|
| 1 | W11090455 | INSTRUCTIONS, INSTALLATION | $0.00 | |||
| 1A | W11090435 | GUIDE, USE & CARE | $0.00 | |||
| 1B | W11090459 | GUIDE, LP CONVERSION | $0.00 | |||
| 1C | W10403310 | SHEET, TECH (ENGLISH) | $0.00 | |||
| 1D | W10403311 | SHEET, TECH (FRENCH) | $0.00 | |||
| 1E | 9762761 | TIPS, SAFE COOKING (ENGLISH) | $0.00 | |||
| 1F | W10065852 | TIPS, SAFE COOKING (FRENCH) | 9759133 | $0.00 | ||
| 2 | W10657945 | SPUD-ORFCE | $70.08 | |||
| 2A | W10256132 | SPUD ORIFICE | W10819958 | $72.21 | ||
| 2B | W10364221 | ORIFICE | W11051480 | $70.08 | ||
| 2C | W10282663 | SPUD-ORFCE | W10791075 | $80.12 | ||
| 3 | W10846622 | HOLDER-ORF | $86.44 | |||
| 4 | W10846623 | HOLDER-ORF | $86.44 | |||
| 5 | W10276551 | GRATE,BURNER | W11344501 | $138.85 | ||
| 6 | W10323251 | TRIM, ISLAND | $0.00 | |||
| 7 | W10883622 | HOLDER,ORIFICE | $86.44 | |||
| 8 | 9760219 | PAD,GRATE | 8186321 | $8.08 | ||
| 9 | W10323252 | TRIM-TOP | $133.15 | |||
| 10 | W10673618 | SCREW | W11241230 | $11.38 | ||
| 11 | W10276494 | BEZEL-KNOB | $64.30 | |||
| 12 | W10674068 | SCREW | $19.36 | |||
| 13 | W10256034 | CAP-BURNER | WPW10256034 | $106.76 | ||
| 13A | W10256032 | CAP-BURNER | WPW10256032 | $68.28 | ||
| 13B | W10364463 | CAP,BURNER | WPW10364463 | $43.16 | ||
| 14 | W10879806 | BURNER HEAD | W11106799 | $101.07 | ||
| 14A | W10256027 | BURNER HEAD | WPW10256027 | $78.05 | ||
| 14B | W10282515 | BURNER HEAD AUX | WPW10282515 | $115.79 | ||
| 15 | W10827923 | CLIP | W11684564 | $9.31 | ||
| 16 | 8286724 | ELECTRODE, BURNER (CENTER REAR) | $0.00 | |||
| 17 | 8286930 | GASKET | $73.56 | |||
| 18 | W10352969 | COOKTOP | $248.86 | |||
| 18A | W10352966 | COOKTOP | $248.19 | |||
| 18B | W10352963 | COOKTOP | $248.23 | |||
| 19 | 8286863 | CLIP | $61.52 | |||
| 20 | 7101P338-60 | SCREW | W11233072 | $12.16 | ||
| 21 | W10130760 | BRKT-MNTG | $57.97 | |||
| 21A | W10130759 | BRKT-MNTG | $57.97 | |||
| 22 | 7101P500-60 | SCREW | WP74003976 | $6.50 | ||
| 23 | W10789955 | PANL-CNTRL | W11444934 | $546.14 | ||
| 24 | W10145568 | KNOB | $42.32 | |||
| 25 | 3196160 | SCREW | W10491985 | $6.68 | ||
| 26 | W10145453 | BEZEL-KNOB | $64.30 | |||
| 27 | 8286921 | SCREW | W11676349 | $11.19 | ||
| 28 | W10145454 | KNOB | $36.27 | |||
| 29 | 3177991 | SCREW | WP3177991 | $6.32 | ||
| 30 | W10116114 | LIGHT-IND | $70.42 | |||
| 31 | W10294500 | LENS-LIGHT | $5.33 | |||
| 32 | W10291193 | TRIM-TOP | $109.02 | |||
| 33 | 7101P426-60 | SCREW | WP90767 | $6.30 | ||
| 34 | W10116113 | INFINITE SWITCH | WPW10116113 | $299.47 | ||
| 35 | W10271524 | TRIM-TOP | $169.81 | |||
| 36 | W10145566 | KNOB | $41.31 | |||
| 37 | W10625221 | MODULE | $970.99 | |||
| 38 | W10145531 | CONTROL BOARD | WPW10145531 | $244.29 | ||
| 39 | W10464534 | CONTROL ELECT | WPW10464534 | $1152.67 | ||
| NI | N/P | HARNESS PARTS NOT ILLUSTRATED | $0.00 | |||
| NI | W10116169 | HARNS-WIRE | $254.72 | |||
| NI | W10116146 | HARNS-WIRE | $111.55 | |||
| NI | W10399611 | HARNS-WIRE | $110.47 | |||
| NI | W10763503 | HARNS-WIRE | $147.04 | |||
| NI | W10780278 | HARNS-WIRE | $68.84 | |||
| NI | W10344051 | HARNS-WIRE | $103.01 | |||
| NI | W10624584 | POWER CORD | $146.47 | |||
| NI | W10830797 | WIRE | $51.14 | |||
| NI | W10830796 | WIRE | $51.14 | |||
| NI | 4450800 | SCREW | $12.16 | |||
| NI | 313438 | CLIP | 16515 | $16.07 |
*The price can change whitout warning
