Brand: Whirlpool

Model: WED7505FW0 - LAUNDRY, RESIDENTIAL, ELECTRIC DRYER, 27 INCH

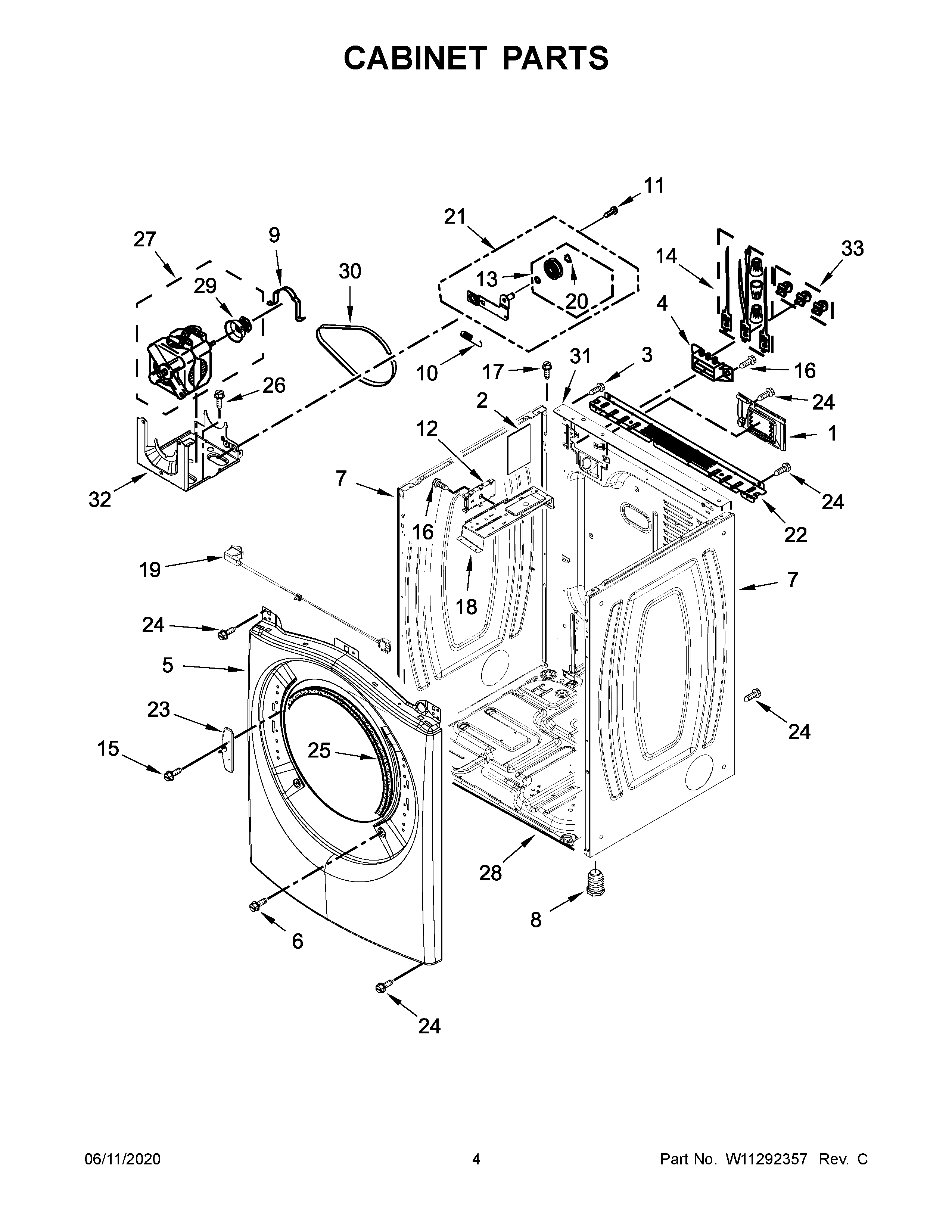

03 - CABINET PARTS

WED7505FW0
Plan number Part Number Description Replacement Price
1 W10316167 COVER-TERM WPW10316167   $78.01
2 W10504381 PAD W11409002   $17.63
3 W10773242 SCREW W10850756   $6.65
4 3397659 TERMINAL BLOCK WP3397659   $20.06
5 W10363953 PANEL WPW10363953   $280.32
6 3357011 SCREW WP308685   $6.11
7 W10468495 PANEL W11233548   $186.70
8 3392100 LEVELLING LEG 49621   $5.59
NI 279810 LEVELLING LEG 49621   $5.59
9 W10121316 CLAMP WPW10121316   $22.21
10 W10446781 SPRING-IDLER WPW10446781   $22.44
11 3389420 SCREW WP3389420   $6.32
12 W10847936 CONTROL BOARD W11537215   $277.89
13 W10468057 PULLEY-IDR 279640   $29.24
14 279318 TERMINAL   $84.81
15 W10288126 SCREW W11661566   $11.19
16 489463 SCREW WP489463   $5.42
17 3393008 SCREW WP308685   $6.11
18 W10259611 BRACKET, CONTROL   $0.00
19 W10350906 DOOR SWITCH WPW10350906   $62.96
20 W10512946 RING WPW10512946   $9.51
21 3388674 IDLER BRACKET & SHAFT ASM W10837240   $28.15
22 W10208382 BRACKET WPW10208382   $27.32
23 W10208250 STRIKE WPW10208250   $34.99
24 3390647 SCREW WP488729   $6.39
25 3387242 SEAL WP3387242   $23.65
26 343641 SCREW WP681414   $5.80
27 W10806758 ASSEMBLY, MOTOR W11086656, W11364931     Call to order
28 8565046 BASE W11215531   $254.69
29 8066184 PULLEY MOTOR WP8066184   $52.38
30 3387610 BELT 661570V   $27.24
31 W10487430 PANEL,REAR   $256.45
32 W10242878 BASE W11481730   $65.53
33 279393 SCREW   $38.00
NI W10323246 KIT-EXHAUST   $41.99
*The price can change whitout warning
